Chinavision CVSN-DV56 User Manual

Gps driving recorder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

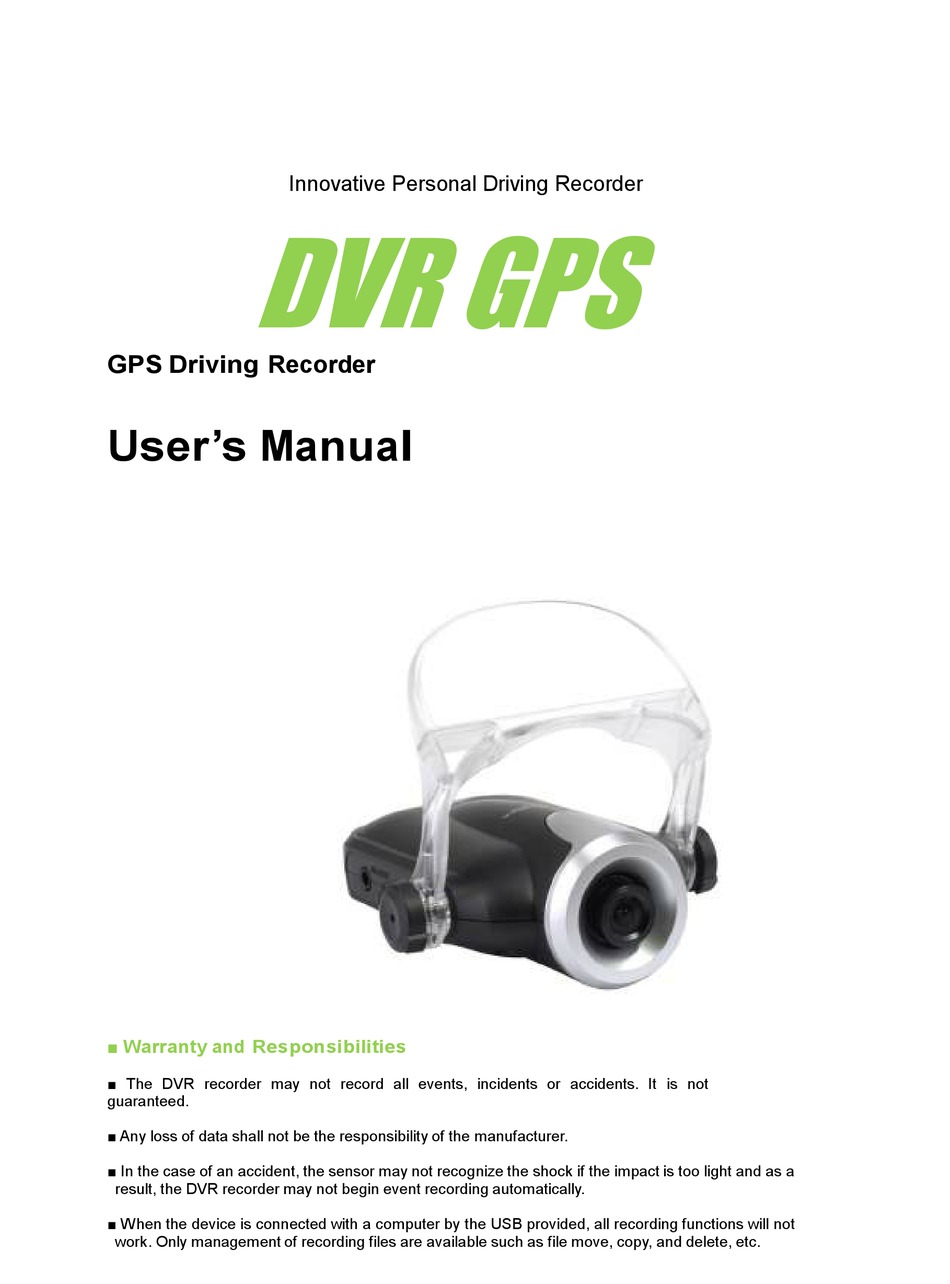

DVR GPS
GPS Driving Recorder
User's Manual
■ Warranty and Responsibilities
■ The DVR recorder may not record all events, incidents or accidents. It is not
guaranteed.
■ Any loss of data shall not be the responsibility of the manufacturer.
■ In the case of an accident, the sensor may not recognize the shock if the impact is too light and as a
result, the DVR recorder may not begin event recording automatically.
■ W hen the device is connected with a computer by the USB provided, all recording functions will not
work. Only management of recording files are available such as file move, copy, and delete, etc.
Innovative Personal Driving Recorder

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CVSN-DV56 and is the answer not in the manual?

Questions and answers

Related Manuals for Chinavision CVSN-DV56

Summary of Contents for Chinavision CVSN-DV56

  • Page 1 Innovative Personal Driving Recorder DVR GPS GPS Driving Recorder User’s Manual ■ Warranty and Responsibilities ■ The DVR recorder may not record all events, incidents or accidents. It is not guaranteed. ■ Any loss of data shall not be the responsibility of the manufacturer. ■...

  • Page 2: Table Of Contents

    Contents 1. Before using the DVR recorder 2. Components in the package 3. Parts name of the DVR recorder 4. Main features of the DVR recorder 5. How to install the DVR recorder 6. Operating the DVR recorder Event Recording Direct AVI connection with display USB connection USB host back up...

  • Page 3: Before Using The Dvr Recorder

    1. Before using the DVR recorder Please read the following carefully to use the product properly and protect the user’s safety Do not disassemble, repair, or alter the product. If malfunctions, errors, or product damage are found to be attributable to a user, a user may not be eligible for warranty service. In case of smoke or burning smells, unplug the power cable immediately.

  • Page 4: Components In The Package

    ♦ Understanding of GPS 1. GPS is used for commercial purpose and inherently has the average range error of more than 15 meters. The range of error may be more than 100 meters if you are in a built-up area, underground or in an underpass or surrounded by a large amount of trees.

  • Page 5: Parts Name Of The Dvr Recorder

    3. Parts name of DVR recorder 1. Camera lens: Make sure that any foreign material does not block the camera lens 2. Cradle: DVR can be attached on the windscreen using the cradle provided. 3. Fixing Screw: Fix DVR to the cradle with this screw 4.

  • Page 6: Main Features Of The Dvr Recorder

    4. Main features of DVR recorder ■ Record Accident When an incident occurs caused by sharp breaking, rapid acceleration, excessive cornering or sudden impact, the DVR saves the recorded video of the 10 seconds immediately before and 20 seconds immediately after the incident. ■...

  • Page 7: How To Install The Dvr Recorder

    5. How to install the DVR recorder For better performance and safety, please install DVR recorder as per the following instructions below. 1. Connect the DVR recorder to a PC directly via the USB cable enclosed in the package. Once you have done this, please be patient whilst the unit is recognized by your computer –...
  • Page 8 5. Stick the recorder bracket onto the windscreen using the sticky-pad provided on the bracket. Adjust the camera angle horizontally with the lens facing forwards. Tighten the adjustment screws so that camera is held firmly. Adjust if necessary after viewing a recorded video clip after you have tried the product for the first time.

  • Page 9: Operating The Dvr Recorder

    6. Operating the DVR recorder Event Recording 1. Start the engine after the power cable is connected to the cigarette power jack in vehicle. 2. A beep sound will now be heard and all of the LED lights will turn on. After several seconds, the ECO LED turns off and the Power LED is illuminated.

  • Page 10: Direct Avi Connection With Display

    Direct AVI Connection with Display 1. Recorded files can be played in a car navigation or car video player should you need to see the recorded data urgently. 2. Please ensure that you playback the recorded data after parking a car in a safe place 3.

  • Page 11: Usb Connection

    USB Connection 1. Connect the DVR Recorder to PC via the USB cable provided in the package. 2. After a “beep” is heard, the Power LED will turn red and the ECO LED will at first flash different colours and then flash yellow – after one minute the ECO LED will illuminate blue. When the ECO LED has turned Blue the unit is recognized as a Mass Storage device by your PC.

  • Page 12: Usb Host Back Up

    USB host back up 1. Recorded files in the DVR recorder can be downloaded to a USB flash memory using the USB host back up function. (Please park the vehicle before USB flash back up) 2. Connect a USB flash memory to USB host slot of DVR recorder * USB memory must be formatted with FAT32 or FAT16 - NTFS is not supported.

  • Page 13: Eco Driving Indicator

    ECO Driving Indicator 1. The ECO drive indicator provides information to help us drive more efficiently and economically. 2. The Internal G sensor evaluates the driving over a period of time and the DVR recorder rates it and indicates the score with different colors. 3.
  • Page 14 Innovative Personal Driving Recorder How to power off the product properly 1. Please unplug the power cable out of the Cigarette power jack to switch-off and to avoid draining the car battery and avoiding a flat battery. To avoid any data loss, please follow below instruction - a) When you are recording manually, please wait for 20 seconds before power-off so that the DVR recorder is able to complete the event recording.

  • Page 15: How To Use The Dvr Manager

    7. How to use SJA Manager ■ Connect recorder USB memory to your PC. Select SJA manager.exe file (CAM) and click on the file. Outline of SJA Manager ■ Run SJA manager and find intro interface as below 1. Video viewer: Playing event recorded file. 2.

  • Page 16: Button Definitions

    Innovative Personal Driving Recorder ■ SJA manager operating image Button definitions Icon Name Definition Close Close SJA manager Set up Set up DVR recorder connected to PC Capture Save still image from video clip with JPEG Print Print still images from video clips Back up Save and convert recorded files Speed control...

  • Page 17: Save, Convert And Open Recording Files

    Save, convert and open recording files ■ Click the back-up button at the bottom of the SJA manager. ■ Select the file you want to back-up from the file list – press “Back-Up” Save video file as it is / Convert to AVI, then save ■...

  • Page 18: Gps Mapping Window

    Innovative Personal Driving Recorder GPS Mapping window ■ As shown in the image on the right, the map is displayed in a small window to indicate the location of the Vehicle when the Digital Video footage was taken. ■ PC users should have access to the internet to use this mapping function.

  • Page 19: Specifications

    8. Specifications Technical Specification CPU No. Cupid ASIC chipset Performance 133 MHz G-Sensor Internal 3D G-sensor Collision, Q-Break, Q-Acceleration detection Optional GPS module * Only available with DVR-GPSl Sensor CMOS Lens High quality precision lens Camera Resolution 640 x 480 Angle 64.8°(V) x 92.8°...
