B23 L
BEDIENUNGSANLEITUNG ......................................... 2
Bitte vor Inbetriebnahme des Gerätes lesen!
USER INSTRUCTIONS ............................................ 14
Please read the manual before using the equipment!
MODE D'EMPLOI ................................................... 26
Veuillez lire cette notice avant d'utiliser le système!
ISTRUZIONI PER L'USO .......................................... 38
Prima di utilizzare l'apparecchio, leggere il manuale!
MODO DE EMPLEO ................................................ 50
¡Sirvase leer el manual antes de utilizar el equipo!
INSTRUÇÕES DE USO ............................................ 62
Favor leia este manual antes de usar o equipamento!
Advertisement
Table of Contents
Related Manuals for AKG B23 L
Summary of Contents for AKG B23 L
- Page 1 B23 L BEDIENUNGSANLEITUNG ......... 2 Bitte vor Inbetriebnahme des Gerätes lesen! USER INSTRUCTIONS ..........14 Please read the manual before using the equipment! MODE D’EMPLOI ........... 26 Veuillez lire cette notice avant d’utiliser le système! ISTRUZIONI PER L’USO .......... 38 Prima di utilizzare l’apparecchio, leggere il manuale!
-
Page 2: Table Of Contents
Connect microphones .......... 20 Application ............21 MONO ..............21 STEREO ............... 22 Adjusting audio level ..........23 RECORDING ............23 Cleaning ............. 24 Technical data ........... 25 B23 L... -
Page 3: Safety And The Environment
Only use the equipment for the applications described in this manual. AKG cannot accept any liability for damages resulting from improper handling or misuse. At the end of the lifetime of the product, disconnect... -
Page 4: Description
Optional accessories catalogue at www.akg.com. Your dealer will be happy to advise you. The B23 L Battery Power Supply Unit supplies "C... L" & Short description "C… ML"- versions of AKG MicroMic II Series microphones with phantom power and enables operation of the microphones with mixers, home recorders or the like without integrated phantom power. -
Page 5: Control Elements

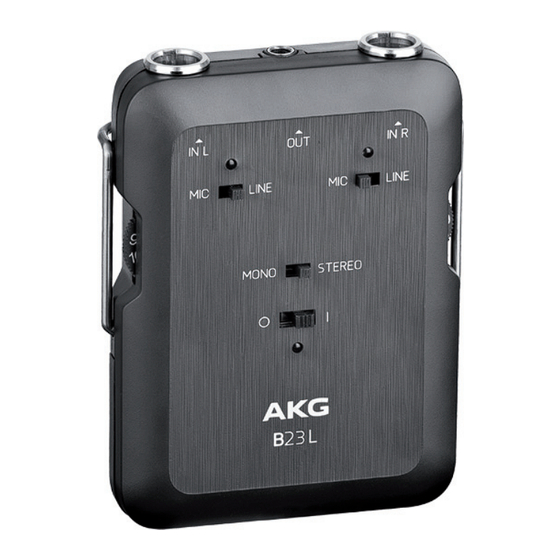

L IN E M IC S T E R E M O N O Figure 1: B23 L control elements Mini XLR inputs (2x): Two microphones can be provided with supply voltage. Output jack 3.5 mm is connected to a pocket transmitter, mixer or recording device (notebook, Tablet PC). - Page 6 Description STATUS LED: lights up for approx. one second when switching the unit on: B23 L is ready for operation. does not light up: Check the batteries and ensure that the polarity is correct. lights up during operation: Change the batteries.
-
Page 7: Setting Up
Exchange the batteries with new ones as soon as possible. 5) Close the battery compartment by sliding the battery cover over the battery compartment until it clicks into place. 6) Insert the belt clip. B23 L... -
Page 8: Connect Microphones
At contact 3, there is a positive voltage supply of 9 V (idle) available for condenser microphones. Proper functioning of the B23 L with products from other manufacturers cannot be guaranteed. Potential damage due to the operation using products from other manufacturers shall be excluded from the guarantee. -
Page 9: Application
Plug the mini XLR connector plug on the cable of your microphone to an audio input plug (1). 2) Connect the B23 L with a pocket transmitter over the output jack (2). 3) Set the selector switch (4) of both inputs to "MIC". -
Page 10: Stereo
XLR plug into the audio input jack on the B23 L. 2) Connect the B23 L with a pocket transmitter, mixer or recording device over the output jack (2). 3) Set the selector switch (4) of both inputs to "MIC". -
Page 11: Adjusting Audio Level
VOLUME control down slightly, or change the selector switch from MIC to LINE so that the CLIP LED occasionally NOTE lights up shortly. The B23 L output signal can be used on your notebook or RECORDING Tablet PC for purposes of further processing or recording. ... -
Page 12: Cleaning
Cleaning 5 Cleaning Use a soft cloth moistened with water to clean the surfaces. B23 L... -
Page 13: Technical Data
89 x 70 x 26 mm (3.5 x 2.75 x 1.02 in) Weight including batteries: 115 g (4.05 oz) This product conforms to the standards listed in the Declaration of Conformity. To view a copy of the Declaration of Conformity for this product, visit http://www.akg.com or contact sales@akg.com. B23 L...
