Assembly INSTRUCTIONS

Congratulations on purchasing a

Dirt Demon Automatic Pool Cleaner.

You have made an excellent choice.

MODEL DD 100

6025

Table of Contents

Need help?

Do you have a question about the DD 100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dirt Demon DD 100

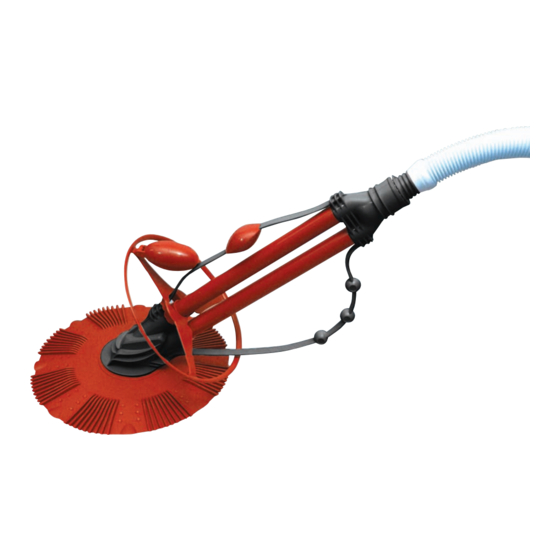

Page 1 DIRT DEMON ABOVEGROUND AUTOMATIC POOL CLEANER ASSEMBLY INSTRUCTIONS Congratulations on purchasing a Dirt Demon Automatic Pool Cleaner. You have made an excellent choice. MODEL DD 100 6025...
Page 2 The Dirt Demon is the finest filter assisted pool cleaner on the market. Please note that as the Dirt Demon is a filter assisted cleaner, it is a direct extension of your filter. The cleaner’s performance is directly related to your filter’s performance, therefore the better your filter is operating, the better the vacuum will work.
Page 3 S T T T E E E P P P 1 1 ATTACH THE SEAL To install the seal locate the word “UP”. Face it up towards the body of the cleaner. Gently stretch the seal over the foot pad of the cleaner until it sets itself into the groove as illustrated in figure 2.
Page 4 S T T T E E E P P P 4 4 ASSEMBLE THE HOSE Your cleaner hose comes in 3’ sections which must be connected together. The hoses are connected by inserting the male cuff of one section of hose into the female cuff of another. Twist the sections of hose together until you establish a snug fit (See figure 5).
Page 5 Once fully assembled, your Automatic Pool Cleaner should look like this..I N N N S S S T T T A A A L L L L L L A A A T T T I I I O O O N N Your automatic pool cleaner is designed to work in a wide variety of swimming pools.
Page 6 H O O O S S S E E E B B B A A A L L L A A A N N N C C C E E E ( ( ( O O O P P P T T T I I I O O O N N...
Page 7 If debris is still lodged inside the cleaner, you must remove the flapper. To do this you must first remove the foot pad. Once the foot pad has been removed you will see the flapper plate. Remove the single screw that secures the plate and slide the plate out of the main body.
Page 8 T R R R O O O U U U B B B L L L E E E S S S H H H O O O O O O T T T I I I N N N G G POSSIBLE CAUSE SOLUTION PROBLEM...
