Ikelite 6182.50 Instruction Manual

Ikelite Digital Housing
i n s t r u c t i o n
#6182.50 for Nikon Coolpix P5000
Congratulations on your purchase of an Ikelite Digital Camera
Housing. Ikelite has over 30 years of experience in the underwater
photographic and lighting market. Our products are designed and
built in the USA by Ikelite for both the professional and amateur
photographer.
The clear housing permits instant visual inspection of the camera
and all sealing surfaces as well as complete monitoring of controls
and camera LCD screens.
Ikelite Digital Housings are slightly negative in salt water for
stability. This housing has been water pressure tested at the
factory. Housing is pressure tested to 200' (60m).
O O p p e e n n i i n n g g t t h h e e H H o o u u s s i i n n g g
1 . Lid Snaps have a L L o o c c k k .
To open, push Lid Snap Lock
forward and lift as shown.
Keep pressure on the Lid
Snap so it does not fly
open quickly.
Some lid snaps have a lot of
spring tension once they go over center, have a firm grip on the
lid snap. Lid Snaps may be opened one at a time.
L L u u b b r r i i c c a a n n t t s s
1 . Ikelite provides silicone lubricant with the housing. We recommend
you use only Ikelite lubricant on Ikelite products as some other
brands may cause the o-ring to swell and not seal properly.
2. Use only enough lubricant to lightly cover control shafts and
o-rings. Wipe off any excess lubricant with a clean cloth.
Lubricant is not a sealant, it is used to reduce friction. Excessive
lubricant can collect sand and dirt which may interfere with
proper sealing.
C C A A U U T T I I O O N N
N N e e v v e e r r u u s s e e s s p p r r a a y y l l u u b b r r i i c c a a n n t t s s a a s s t t h h e e p p r r o o p p e e l l l l a a n n t t i i n n g g r r e e d d i i e e n n t t c c a a n n
c c a a u u s s e e t t h h e e p p l l a a s s t t i i c c h h o o u u s s i i n n g g t t o o c c r r a a c c k k . .
m a n u a l
Push Forward
Lid Snap Lock
Lift
3
Command Dial
Shutter
Release
Zoom
Lid
Snap
External Strobe
O-ring
Connector & Cap
Function
Lid
Monitor
Snap
Playback
Menu
Delete
I I n n s s t t a a l l l l i i n n g g t t h h e e C C a a m m e e r r a a
Remove the back from the housing. The mounting tray for the
camera is secured to the housing back. Position the camera on
the tray and secure it with the mounting bolt which extends
through the mounting tray and threads into the camera's tripod
socket. U U s s e e a a c c o o i i n n o o r r f f l l a a t t b b l l a a d d d d e e d d s s c c r r e e w w d d r r i i v v e e r r t t o o t t i i g g h h t t e e n n t t h h e e
m m o o u u n n t t i i n n g g b b o o l l t t s s o o t t h h e e
c c a a m m e e r r a a i i s s f f l l a a t t a a g g a a i i n n s s t t
t t h h e e t t r r a a y y . .
C C A A U U T T I I O O N N : :
Some camera tripod
socket threads are
plastic. The mounting
tray bolt is metal.
Do not cross thread
or over tighten as
you may damage
the camera tripod
socket threads.
Power On/Off
Mode

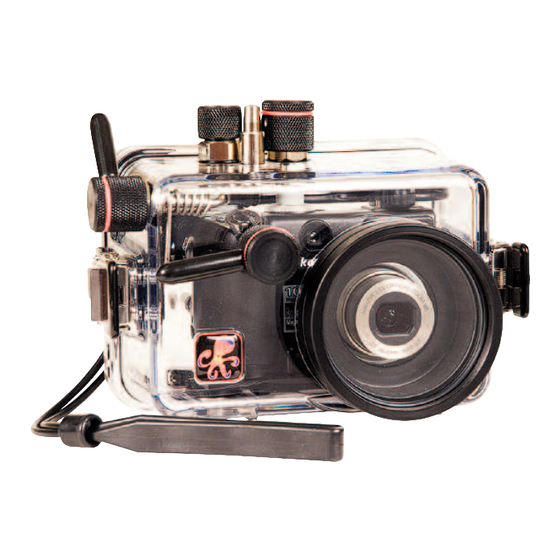

Lens Port
Front View
Lanyard
Multi
Back View Selector/OK
2
O'Ring
Mounting
Mounting
Tray
Bolt
4
Lid
Snap
Thumb
Rest
Shutter
Release
Lid
Snap
