11. Failure diagnosis
Malfunction
Checking
If turn the switch to the "ON"?
Fail to start the
If the power of Li-on battery is
product
not enough?
If the plug of power adaptor
correctly plug into mini-USB?
Fail to charge
If the power adaptor correctly
get through the 100-240V AC
electricity?
No voice in talk
If the talk volume is adjusted to
mode
be the least?
If the indoor monitor is close to
The image is
induction cooker and
flashing or
microwave oven which has
noisy
magnetic wave?
If the outdoor camera doesn't
connect the power?
If the outdoor camera is far
No signal in
away from the indoor monitor?
If there is other strong
magnetic space bother?
Debug
Turn the switch to the ON
Charge the Li-on battery
Re-connect indoor monitor
with power adaptor
Re-insert the plug to make
power adaptor get AC
electricity.
To adjust the talk volume to
be suitable.
Keep indoor monitor far away
from these things which has
magnetic wave.
To connect power adaptor to
the outdoor camera
Keep the distance in 60
meters within (stopped by
multi-wall)
Keep indoor monitor far away
from the strong magnetic
space
11

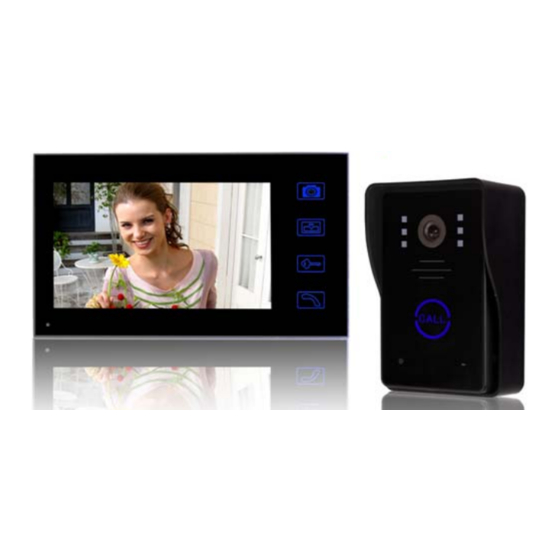

2.4GHz Digital
Wireless Video Door Phone
User Manual
● Thank you for purchasing our product.
●
For better taking advantage of the prior functions please carefully
read user manual for correct installation and operation.
Advertisement
Table of Contents
Summary of Contents for STEVEN SY806MJW
- Page 1 11. Failure diagnosis Malfunction Checking Debug 2.4GHz Digital If turn the switch to the "ON"? Turn the switch to the ON Fail to start the Wireless Video Door Phone If the power of Li-on battery is product Charge the Li-on battery User Manual not enough? If the plug of power adaptor...
- Page 2 8. Working environment Contents (1) Working temperature: -15℃—+55℃ (2) Working humidity: ≤85% 1. Introduction……………………………………………………...2 2. Features…………………………………………………………2 9. Notices 3. Indoor monitor…………………………………………………..3 Microphone speaker (1) Please don’t cover anything on the when it is in 4. Outdoor monitor………………………………………………...4 working mode. 5. Setting……………………………………………………………5 Please always use the specified power adaptor, or that with the same 6.
- Page 3 Introduction Operation Our wireless video door phone is composed of outdoor camera, indoor monitor and (1). Status Indicator wireless unlock control. You can operate the indoor monitor to communicate with visitors via voice and video, and then unlock the door if you wish. It’s applicable in apartment, hotel, house, office, building and so on.
- Page 4 Indoor monitor Power on lock Electronic Power off lock Magnetic lock...
- Page 5 4. Outdoor camera 6. Installation (1) Recommended location: avoid direct light shinning, proper installation height around 1.5m (1) Microphone (2) Infrared light （2）Switch setting (3) Camera lens Unlock time setting: by switch M1 (on the back of the camera) (4) Speaker A .
- Page 6 5. Setting two following reasons: A) With battery operated door station you will get the video only when doorbell is A Indoor monitor turn on/off pressed. The Video monitoring function is available only when the door Turn on: Turn monitor On/Off switch on a left side of video monitor in “On” station is connected to the mains.
