Summary of Contents for Hitron HEV0118H

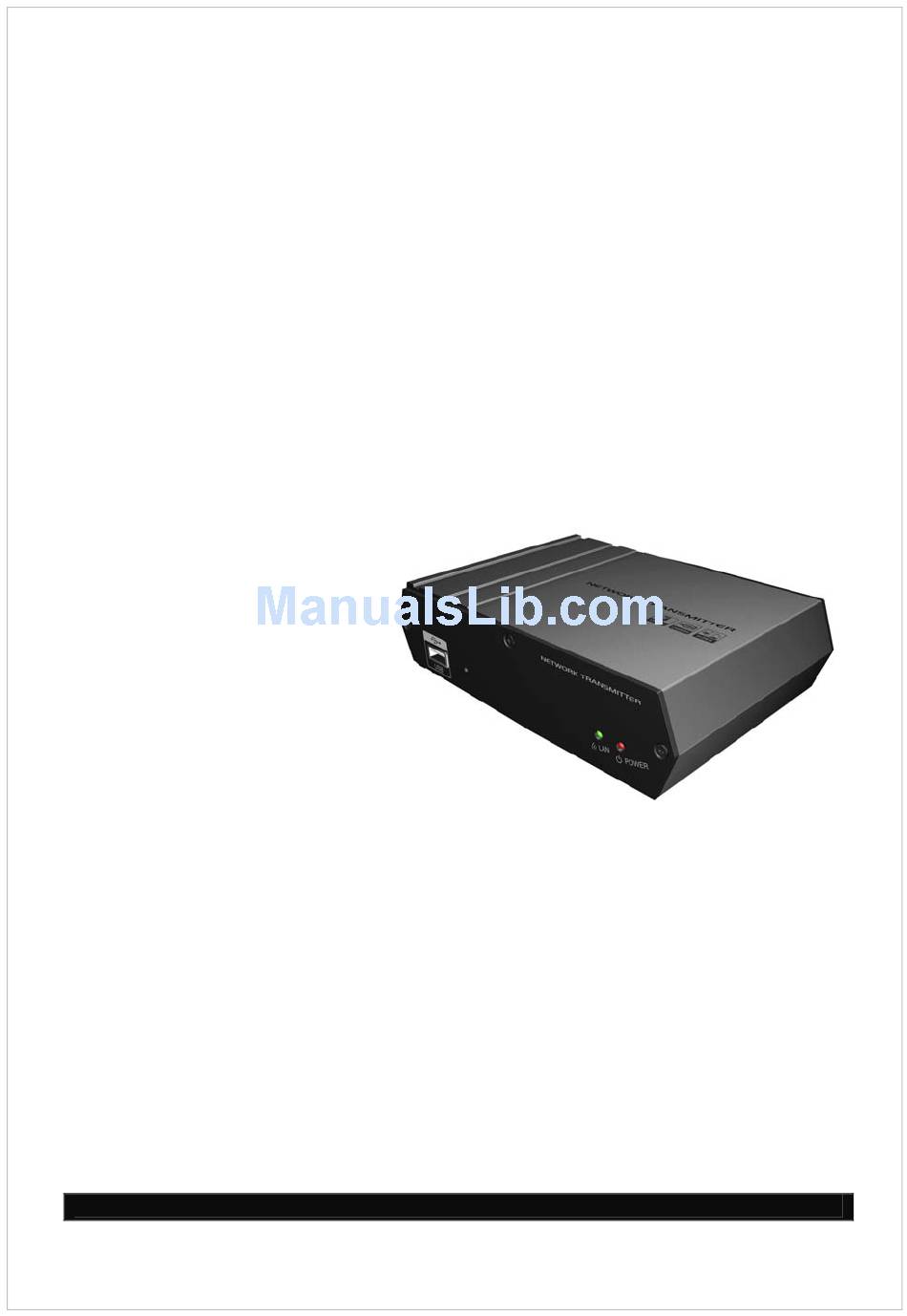

- Page 1 H.264 Network Transmitter User’s Manual English Version 1.0 Model : HEV0118H www.hitron.co.kr Copyright ⓒ 2007 Hitron Systems Inc...
- Page 2 WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PROCUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS ON THE EQUIPMENT. CAUTION The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"...
-
Page 3: Fcc Compliance Statement
FCC COMPLIANCE STATEMENT INFORMATION TO THE USER : THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. -
Page 5: Table Of Contents
Table of Contents 1. Product Description…………………………………………………………………………………………………6 2. Installation……………………………………………………......…………..…………………9 3. Operation……………………………………………………………………………………………………….….10 3.1 Access from a browser ……………………………………………………………………………….….10 3.2 Access from the internet ………………………………………………………………………………..11 3.3 Setting the admin password over a secure connection…………………………….…….…11 3.4 Live View Page ………………………………………………………………………………………………12 3.5 Setup...………………………………………………………………………………………………………...14 3.5.1 Basic Configuration…………………………………………………………………….…………...14 3.5.1.1 Users…………………………………………………………………………………….………...14 3.5.1.2 Network……………………………………………………………………………….…………...15 3.5.1.3 Video &... -
Page 6: Product Description
1. Product Description This manual applies to the Network Transmitter. The Network Transmitter supports the network service for an existing analog camera. An analog image entered can be monitored on a real-time screen regardless of distances and locations. By using its dedicated program, many users are able to have an access to the Network Transmitter at once or a single user can monitor various network transmitters at the same time. -
Page 7: Key Features
Key Features • Brilliant video quality The Network Transmitter offers the highly efficient H.264 video compression, which drastically reduces bandwidth and storage requirements without compromising image quality. Motion JPEG is also supported for increased flexibility. • Dual streams The Network Transmitter can deliver dual video streams simultaneously at full frame rate in all resolutions up to D1 (720x480 in NTSC, 720x576 in PAL) using Motion JPEG and H.264 (or MPEG-4). - Page 8 Overview • Front Panel Function Description One USB port is provided to connect external USB memory stick for archiving video or system upgrade. Reset Button Press this button to restore the factory default settings Network Indicator Lights when a remote user is connected to the unit. Lights when the power is on.
-
Page 9: Installation
2. Installation For the operation of the Network Transmitter, it is necessary to connect a network cable for data transmission, power connection from supplied power adapter and connect a general analog camera. Depending on operation methods, it is possible to connect an alarm cable or audio cable additionally. -
Page 10: Operation
4. Selecting the “Assign IP” in the popup menu displays the following window. Enter a proper IP address and click the OK button. The description of each field for the connection in the SmartManager window status follows. : Available for connection to the camera : Loading settings information of video after connecting the camera. -
Page 11: Access From The Internet
4. The encoder’s Live View page appears in your browser. 3.2. Access from the internet Access from the internet Once connected, the Network Transmitter is accessible on your local network (LAN). To access the video encoder from the Internet you must configure your broadband router to allow incoming data traffic to the video encoder. -
Page 12: Live View Page
an encrypted HTTPS connection, which requires an HTTPS certificate (see note below). To set the password via a standard HTTP connection, enter it directly in the first dialog shown below. To set the password via an encrypted HTTPS connection, see Setup>System >Security>HTTPS, on page Note:... -
Page 13: Setup
The live viewer toolbar is available in the web browser page only. It displays the following buttons: The Stop button stops the video stream being played. toggles the Pressing the key again start and stop. The Start button connects to the network transmitter or start playing a video stream. -
Page 14: Basic Configuration
This section describes how to configure the network transmitter, and is intended for product Administrators, who have unrestricted access to all the Setup tools; and Operators, who have access to the settings for Basic, Live View, Video & Image, Audio, Event, and System Configuration. -
Page 15: Network
User Group Authority Provides the lowest level of access, which only allows access to the Guest Live View page. An operator can view the Live View page, create and modify events, Operator and adjust certain other settings. Operators have no access to System Options. -
Page 16: Video & Image
addresses on a network. DHCP is enabled by default. Although a DHCP server is mostly used to set an IP address dynamically, it is also possible to use it to set a static, known IP address for a particular MAC address. •... - Page 17 -. Codec The codec settings are separated into MPEG4 and H.264. H.264 is a lso known as MPEG-4 Part 10. This is the new generation compression standard for digital video. This function offers higher video resolution than Motion JPEG or MPEG-4 at the same bit rate and bandwidth, or the same quality video at a lower bit rate.
-
Page 18: Audio
but in this case cannot, the frame rate and image quality are affected negatively. To partly compensate for this, it is possible to prioritize either the frame rate or the image quality whenever the bit rate needs to be increased. Not setting a priority means the frame rate and image quality are equally affected. - Page 19 The Network Transmitter can transmit audio to other clients using an external microphone and can play audio received from other clients by attaching a speaker. The Setup page has an additional menu item called Audio, which allows different audio configurations, such as, full duplex, and simplex.
-
Page 20: Date & Time
the input gain for the microphone attached to the network transmitter. • Audio Output -. Enable full duplex Check the box to enable Full Duplex mode. It means that you can transmit and receive audio (talk and listen) at the same time, without having to use any of the controls. This is just like having a telephone conversation. -
Page 21: Live View
It displays the current date and time (24h clock). The time can be displayed in 12h clock format in the overlay (see below). • New Server Time Select your time zone from the drop-down list. If you want the server clock to automatically adjust for daylight savings time, select the “Automatically adjustment for daylight saving time changes”. - Page 22 ▼ Channel1 Refer to “3.5.1.3 Video & Image” for more details. ▼ Appearance - Basic...
- Page 23 • Image Appearance -. Brightness - The image brightness can be adjusted in the range 1-255, where a higher value produces a brighter image. -. Color level -Select an appropriate level by entering a value in the range 1-14. Lower values mean less color saturation.
- Page 24 The privacy masking function allows you to mask parts of the video image to be transmitted. You can set up to eight privacy masks and the color of privacy masks is black. The privacy masks are configured by Mask windows. Each window can be selected by clicking with the mouse.
-
Page 25: Audio
The network transmitter can stream live video to a website. Copy the HTML code generated on the screen and paste it in page code of the website you want to display live video. Note: To use webcasting service, the Enable Anonymous viewer login option must be checked. -
Page 26: Event
Refer to “3.5.1.4 Audio” for more details. 3.5.5 Event... -
Page 27: Event In
3.5.5.1 Event-In ▼ On Boot This is used to trigger the event every time the Network Transmitter is started. Select “Enable” to activate the motion event. ▼ Alarm In... - Page 28 Select “Enable” to activate the alarm event. The network transmitter support 2 alarm input ports. -. Type - Choose the type of alarm you wish to use from the drop-down list. -. Dwell Time - Set the dwell time an event lasts for the specified dwell time from the point of detection of an alarm input.
- Page 29 This option makes use of the manual trigger button provided on the live view page, which are used to start or stop the event type manually. Alternatively the event can be triggered via the product's API (Application Programming Interface). ▼ Motion...
- Page 30 Motion detection is used to generate an alarm whenever movement occurs (or stops) in the video image. A total of 8 Motion and/or Mask windows can be created and configured. Motion is detected in defined Motion windows, which are placed in the video image to target specific areas.
-
Page 31: Event Out
described below. A motion index is a set of parameters describing Window Name, Type, Threshold, Sensitivity, and Dwell Time. Window Types is one of Motion and Mask windows. -. Threshold - Sets up the sensitivity for the motion detection. -. Sensitivity - Sets up the sensitivity for the motion detection. -. - Page 32 ▼ SMTP(E-Mail) The Network Transmitter can be configured to send event and error email messages via SMTP (Simple Mail Transfer Protocol). • SMTP(E-Mail) Setting Select “Enable” to activate the SMTP operation. -. Mail Server / Port - Enter the host names (or IP addresses) and port numbers for your mail server in the fields provided, to enable the sending of notifications and image email messages from the camera to predefined addresses via SMTP.
- Page 33 To ensure that the login procedure is performed as securely as possible when using SMTP authentication, you must define the weakest authentication method allowed. -. Login Method - Set the Weakest method allowed to the highest/safest method supported by the mail server. The most secure method is listed in the drop-down list: Login / Plain / CRAM-MD5 / DIGEST-MD5 •...
- Page 34 Network Transmitter actively initiates both the FTP control and data connections to the target server. This is normally desirable if there is a firewall between the camera and the target FTP server. -. Remote directory - Specify the path to the directory where the uploaded images will be stored.
- Page 35 -. URL - The network address to the server and the script that will handle the request. For example: http://192.168.12.244/cgi-bin/upload.cgi -. User name/Password - Provide your log-in information. • HTTP Server Test When the setup is complete, the connection can be tested by clicking the Test button. ▼...
- Page 36 When the network camera detects an event, it can output a predefined audio data to external speaker. Check the box to enable the service. • Audio Alert Setting To use the audio alert with the network camera, an audio data file made by user must be uploaded from your PC.
- Page 37 Audio Recorder To use Audio Recorder tool to make an audio file for Audio Alert function, you must install the NCTitanium on the installation CD at first. The NCTitanium program (Start>All Programs>NCTitanium>Tools>ARecorder) in your PC, the ARecorder window will be displayed as below. The description of each button in the ARecorder window follows.
-
Page 38: Event Map
▼ PTZ Preset When the network transmitter detects an event, you can make a PTZ camera connected to its RS485 port to move to a predefined preset position. Check the box to enable the service and return to the Home position once the event has ended. 3.5.5.3 Event Map... - Page 39 The event map allows you to change the settings and establish a schedule for each event trigger from the network transmitter. You can register the event map up to max. 16. Click Add button to make a new event map and you can see a popup window as below. •...
-
Page 40: Device
3.5.6 Device ▼ PTZ The Network Transmitter supports several PTZ devices. Using an appropriate cable, connect the device to your RS-485 port. These ports are available via the I/O terminal connector. • PTZ settings -. Enable - Check the box to enable the PTZ function. -. - Page 41 ▼ RS485 • RS485 settings -. Baud rate - Select a Baud Rate in the drop-down list. (Default 9600 bps) -. Data bits - Select Data Bits in the drop-down list. (Default None) -. Parity bits - Select Parity Bits in the drop-down list. (Default 8 bits) -.
-
Page 42: System
3.5.7 System 3.5.7.1 Security ▼ Users User access control is enabled by default, when the administrator sets the root password on first access. New users are authorized with user names and passwords, or the administrator can choose to allow anonymous viewer login to the Live View page, as described below: •... - Page 43 ▼ HTTPS For greater security, the Network Transmitter can be configured to use HTTPS (Hypertext Transfer Protocol over SSL (Secure Socket Layer)). That is, all communication that would otherwise go via HTTP will instead go via an encrypted HTTPS connection. •...
- Page 44 ▼ IP Filtering Checking the Enable IP address filtering box enables the IP address filtering function. Up to 256 IP address entries may be specified (a single entry can contain multiple IP addresses). When the IP address filter is enabled, addresses added to the list are set as allowed or denied addresses.
-
Page 45: Date & Time
3.5.7.2 Date & Time • Current Server Time It displays the current date and time (24h clock). The time can be displayed in 12h clock format in the overlay (see below). • New Server Time Select your time zone from the drop-down list. If you want the server clock to automatically adjust for daylight savings time, activate “Automatically adjustment for daylight saving time changes”. -
Page 46: Network
3.5.7.3 Network Setting in regard to network can be executed. Settings for IP, DNS, Host Name, Port, and ARP/Ping can be established, along with setting for DDNS, uPnP, QoS, and SNMP. - Page 47 ▼ Basic • IP Address Configuration: -. Obtain IP address via DHCP - Dynamic Host Configuration Protocol (DHCP) is a protocol that lets network administrators centrally manage and automate the assignment of IP addresses on a network. DHCP is enabled by default. Although a DHCP server is mostly used to set an IP address dynamically, it is also possible to use it to set a static, known IP address for a particular MAC address.
- Page 48 ▼ DDNS • Internet DDNS(Dynamic Domain Name Service) When using the high-speed Internet with the telephone or cable network, users can operate the Network Transmitter even on the floating IP environment in which IPs are changed at every access. Users should receive an account and password by visiting a DDNS service like http://www.dyndns.com/, or http://www.security-device.name/.
- Page 49 ▼ RTP Have a setting for sending and receiving an audio or video on a real-time basis. These settings are the IP address, port number, and Time-To-Live value to use for the media stream(s) in multicast H.264 format. Only certain IP addresses and port numbers should be used for multicast streams.
- Page 50 ▼ UPnP The Network Transmitter includes support for UPnP™. UPnP™ is enabled by default, and the Network Transmitter then is automatically detected by operating systems and clients that support this protocol. Note: UPnP™ must be installed on your workstation if running Windows XP. To do this, open the Control Panel from the Start Menu and select Add/Remove Programs.
- Page 51 ▼ QoS Quality of Service (QoS) provides the means to guarantee a certain level of a specified resource to selected traffic on a network. Quality can be defined as a maintained level of bandwidth, low latency, and no packet losses. The main benefits of a QoS-aware network are: -.
- Page 52 • Automatic Traffic Control Set a limitation on user network resources by designating the maximum bandwidth. -. Maximum bandwidth - In case of sharing other network programs or equipment, it is possible to set a limitation on the maximum bandwidth in the unit of Mbit/s or kbit/s. -.
-
Page 53: Language
• NAT traversal Settings -. Enable - when enabled, the network transmitters attempt to configure port mapping in a NAT router on your network, using UPnP™. Note that UPnP™ must be enabled in the Network Transmitter (see System>Network>UPnP). * automatic setting: The Network Transmitter automatically search for NAT routers on your network. -
Page 54: Maintenance
3.5.7.5. Maintenance • Maintenance Server -. Restart - The unit is restarted without changing any of the settings. Use this method if the unit is not behaving as expected. -. Restore - The unit is restarted and most current settings are reset to factory default values. -
Page 55: Support
Note: Backup and Restore can only be used on the same unit running the same firmware. This feature is not intended for multi-configurations or for firmware upgrades. 3.5.7.6 Support The support page provides valuable information on troubleshooting and contact information, should you require technical assistance. -
Page 56: Ptz Control
3.6 PTZ Control You can control PTZ camera in the live screen. Press the button on the left top in the live screen to activate the PTZ control panel. PTZ Control Panel PTZ Menu Panel Direction Buttons Iris/Focus/Zoom Buttons • Control Panel -. -
Page 57: Help
• Manu Panel Menu: Enters programming menu. -. Esc: Cancels current inputs. Exits from currently running functions or menu, error status, -. Home: Immediately calls Home function. Deletes selected value or function in programming mode -. Ctrl Off: Control function. ex) CTRL + Up, Down, Right, Left Button >>... -
Page 58: Resetting To The Factory Default Settings
3.8 Resetting to the factory default settings To reset the Network Transmitter to the original factory settings, go to the Setup>System >Maintenance web page (described in Maintenance, on page 54) or use the control button on the network video transmitter, as described below: •... -
Page 59: Appendix
4. Appendix 4.1 Troubleshooting Troubleshooting if problems occur, verify the installation of the Network Transmitter 1CH with the instructions in this manual and with other operating equipment. Isolate the problem to the specific piece of equipment in the system and refer to the equipment manual for further information. -
Page 60: Product Specification
4.3 Product Specification Video In/Out 1BNC/1BNC, 1.0Vp-p[75ohm, composite] Motion JPEG MPEG-4 Part2 Compression H.264 (MPEG-4 Part 10) Profiles: H.264 MP and BP, MPEG-4 ASP and 4CIF, 2CIF, CIF, QCIF, VGA, QVGA, QQVGA Resolutions Max. 704x480/704x576[NTSC/PAL] VIDEO Min. 160x120, Frame Rate, H.264 Up to 30/25fps[NTSC/PAL] @ all resolutions Frame Rate, MPEG-4 Up to 30/25fps[NTSC/PAL] @ all resolutions... - Page 61 Metal Casing, Standalone or with Bracket for Casing wall mount Operating 0°C ~ 50°C Temperature Operation Humidity GENERAL AC24/DC12V max. 5watt, Power Consumption Power over Ethernet IEEE 802.3af Class2/3 Dimensions (W x H x D) 6.1” / 155mm X 1.57”/40mm X 4.03”/102.4mm Unit Weight Approval FCC, CE, MIC...
