- Page 1 Team Expresso BARISTA SCALES User Guide Model BS 1001 High precision scales designed with baristas in mind Published by Nishanth Oblirajan, Ho Long Fong, Hauchan Bao and Thomas Sherborne...
-
Page 2: Table Of Contents
Contents Welcome System Diagram Instructions Specification Circuit Diagram Programming and Code ... -
Page 3: Welcome

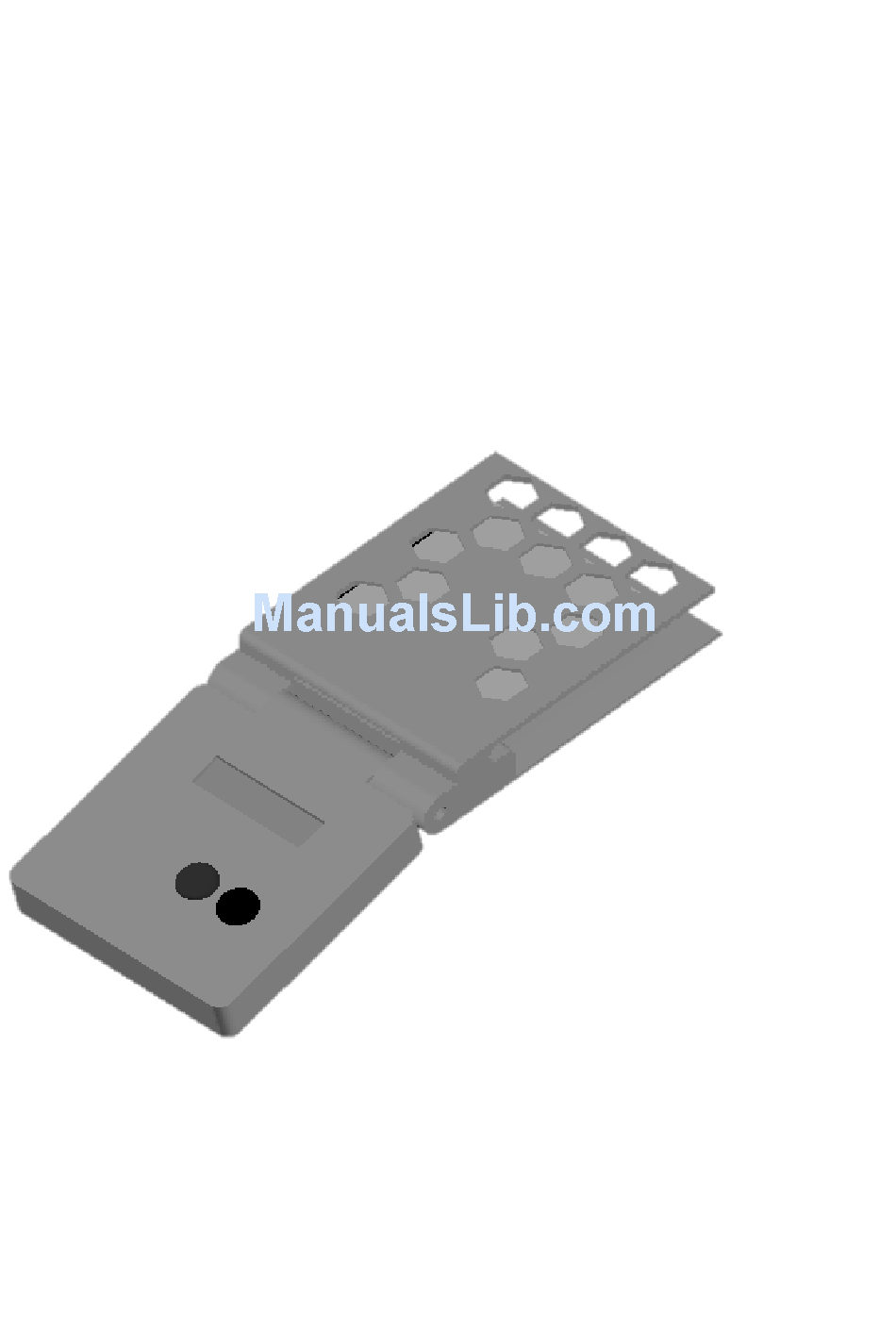

Welcome Welcome to your new set of Team Expresso BS 1001 Barista Scales. These scales are designed to sit under the brew group, fixed to the drip tray, to allow you to measure the weight of your espresso as it is pours into your cup. It is also the ideal tool to measure the weight of the ground coffee in a portafilter. -
Page 4: Instructions
Instructions Using your BS 1001 Barista Scales could not be easier, just follow these simple steps and your espresso will be perfected in no time. 1. Wake the scales from sleep mode by pressing the button o n the screen module. -
Page 5: Circuit Diagram
Circuit Diagram Below is the full circuit diagram for your BS 1001 Barista Scales. -
Page 6: Programming And Code
Programming and Code Your barista scales are controlled by the TI MSP430G2553 Microcontroller which is programmed in C using Energia. Find below the code used in your new scales in case you wish to modify the scales to your personal needs. #include ... - Page 7 } d elay(500); } //program t o z ero t he w eight s cale void ...
- Page 8 To help you better understand your new product, this is a flow diagram of the logic the code that your system runs on. ...
