Best Ｅｎｅｒｇｙ and Space Saving Best RAID

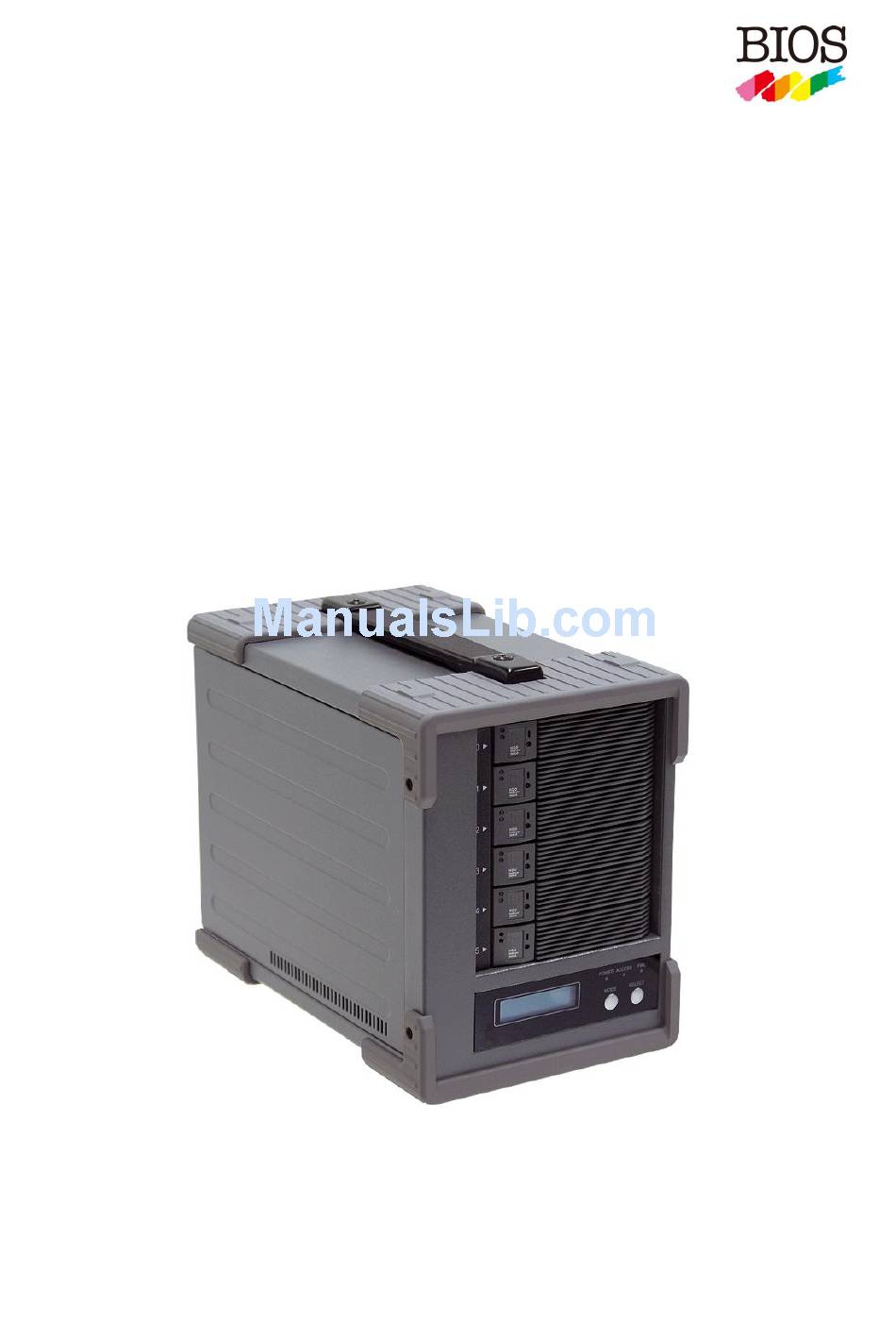

Portable RAID 6, 2.5"HDD×6・Desktop Model
----------------------------------------------------------------------------
－ eSATA＋USB3.0 model －
----------------------------------------------------------------------------
BR256
【 User Manual 】
Revision 1.01f
－ 0 －
BR256（eSATA+USB2.0）model取扱説明書
