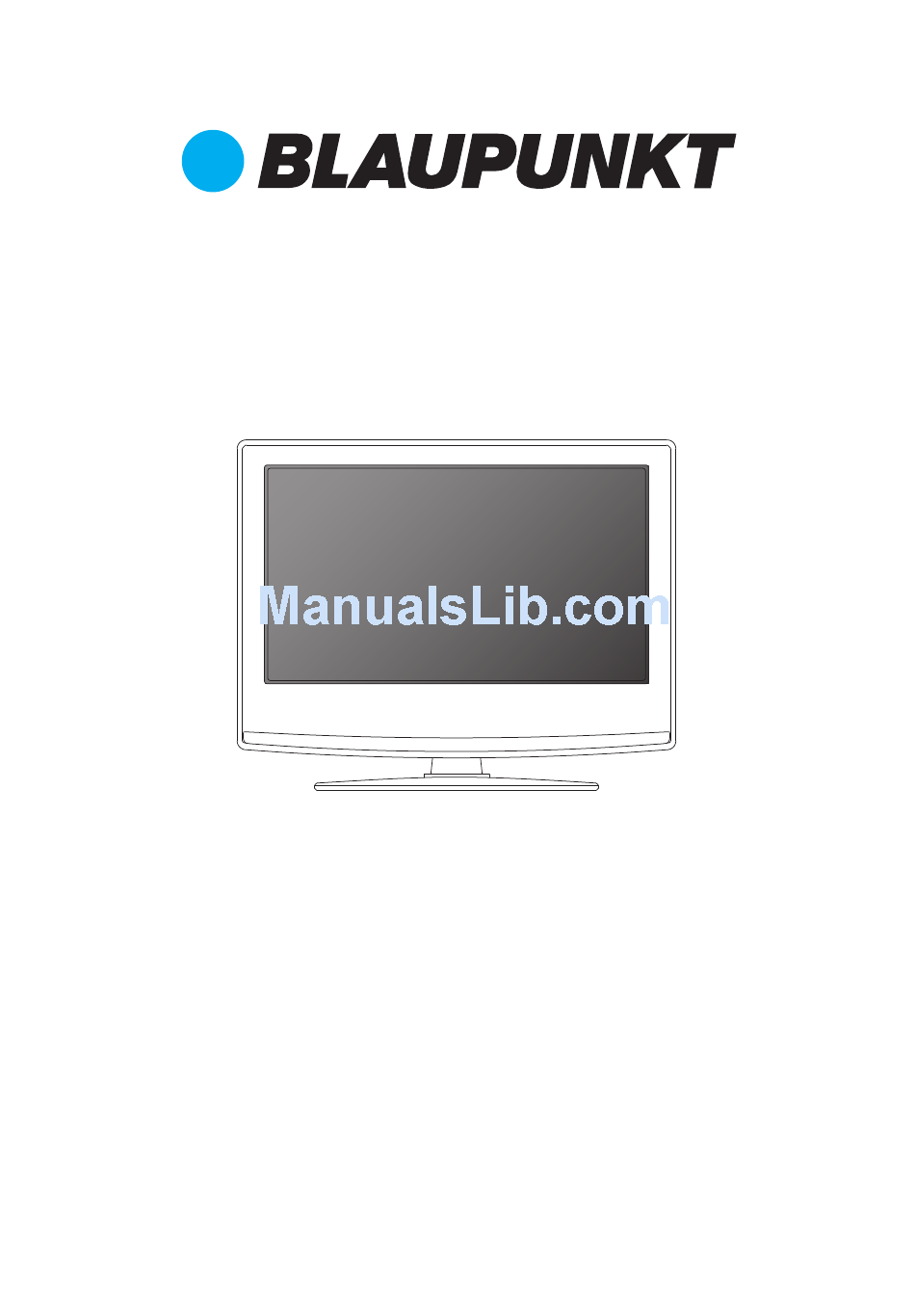

- Page 1 HD Ready LED TV with Freeview, Saorview & USB Media Player User Guide Model No 23/157I-GB-3B-HBCDUP 23/157I-GW-3W-HBCDUP 23/157I-GB-3B-HBCUP 23/157I-GW-3W-HBKDUP 23/157I-GB-3B-HBKDUP 23/157I-GW-3W-HCDUP 23/157I-GB-3B-HBKUP 23/157I-GW-3W-HKDUP 23/157I-GB-3B-HCDUP 23/157J-GB-3B-HCDU 23/157I-GB-3B-HCUP 23/157J-GB-3B-HKDU 23/157I-GB-3B-HKDUP 23/157I-GB-3B-HKUP...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Please read these instructions. All the safety and operating instructions should be read before the appliance is operated. Warnings • When installing on a wall, ensure the TV is at least 5cm from the wall for ventilation. •... - Page 3 IMPORTANT SAFETY INSTRUCTIONS Please read these instructions. All the safety and operating instructions should be read before the appliance is operated. Important Information Regarding Use of How do I dispose of this product? Video Games, Computers, Captions or Other UK: Waste electrical products should not be Fixed Image Displays disposed of with household waste.
-
Page 4: Table Of Contents
CONTENTS Manufacturers Guarantee Information ........3 Important Safety Instructions . -
Page 5: What Is Included In The Box
What is included in the Box WHAT IS INCLUDED IN THE BOX Accessories Included with this TV are the following accessories 1 x User Guide 1 x Remote Control User Guide 2 x AAA Batteries 1 x Quick Start Guide Quick Start Guide 1 x Mini Component / YPbPr... -
Page 6: Attaching/Detaching The Stand
Attaching/Detaching the Stand ATTACHING/DETACHING THE STAND Attaching the stand To complete the stand installation you will require a cross head screw driver (fi g.1) Attach the stand neck to the rear of the (fi g.2) Connect the stand neck and base to the TV TV set by using the screws provided (fi... -
Page 7: Securing The Tv To A Wall/Wall Mounting
Securing the TV to a Wall/Wall Mounting SECURING THE TV TO A WALL Securing the TV to a Wall For maximum security in the home when using a TV with its stand anti-tip straps should be fi tted. These are available from supermarket websites and other websites and are an easy, inexpensive and an effective way of ensuring your TV stays safely upright. -
Page 8: Remote Control
Remote Control REMOTE CONTROL STANDBY - Switch on TV when in standby or vice versa MUTE - Mute the sound or vice versa DTV - Switch to digital source RADIO - Switch to radio whilst in digital source USB - Switch to USB source DVD - Switch to DVD source NUMBER BUTTONS - 0 –... -
Page 9: Tv Buttons And Input Source Menu
TV Buttons & Input Source Menu TV BUTTONS & INPUT SOURCE MENU This information is for models This information is for models without built in DVD players with built in DVD players Stop/Eject Disc Volume down and menu left Play/Pause Disc Volume up and menu right Volume down and menu left Programme/Channel down and menu down... -
Page 10: Connections
Connections CONNECTIONS Y P b P r /P C (A udio in) C O A X V G A /P C IN HDMI 1 HDMI input HDMI 2 (ARC) HDMI input with Audio VGA PC VGA-PC input Return Channel VGA PC Audio In 3.5mm PC audio input USB port YPbPr... - Page 11 Connections CONNECTIONS Note: Connecting cables are shown for example only and may not be included. Please check ‘What Is Included In The Box’ page. Connecting to a device with Composite AV/Video output TV Source should be set to Composite / AV L (white) R (red) Mini...
- Page 12 Connections CONNECTIONS Connecting to a device with Component/YPbPr output If you are supplied with a cable from the device which has RED, GREEN, BLUE, RED & WHITE connectors you must connect via Component (for picture) and by phono cable (for sound). TV Source should be set to Component / YPbPr Mini YPbPr...
-
Page 13: Tv Menu Operation
TV Menu Operation CHANNEL MENU To access this menu, press [MENU] button on the remote control. To enter a menu press [OK] If you wish to make changes to any of the default settings, use the scroll buttons. To confi rm any settings press [OK] button. To exit this menu at anytime, press [EXIT] button. Auto Tuning - Allows you to retune the television for all digital channels, digital radio stations and analogue channels... -
Page 14: Picture Menu
TV Menu Operation PICTURE MENU Home Mode To access this menu, press [MENU] button on the remote control and scroll right. To enter a menu press [OK] If you wish to make changes to any of the default settings, use the scroll buttons. -
Page 15: Sound Menu
TV Menu Operation SOUND MENU To access this menu, press [MENU] button on the remote control and scroll right. To enter a menu press [OK] If you wish to make changes to any of the default settings, use the scroll buttons. -
Page 16: Time Menu
TV Menu Operation TIME MENU To access this menu, press [MENU] button on the remote control and scroll right. To enter a menu press [OK] If you wish to make changes to any of the default settings, use the scroll buttons. -
Page 17: Lock Menu
TV Menu Operation LOCK MENU To access this menu, press [MENU] button on the remote control and scroll right. To enter a menu press [OK] If you wish to make changes to any of the default settings, use the scroll buttons. -
Page 18: Setup Menu
TV Menu Operation SETUP MENU To access this menu, press [MENU] button on the remote control and scroll right. To enter a menu press [OK] If you wish to make changes to any of the default settings, use the scroll buttons. -
Page 19: Tv Menu Operation
TV Menu Operation SETUP MENU To access this menu, press [MENU] button on the remote control and scroll right. To enter a menu press [OK] If you wish to make changes to any of the default settings, use the scroll buttons. - Page 20 DVD Menu Operation DVD SETUP (Applies to models with built in DVD player) Tip: This TV/DVD player is pre-set to play Region 2 DVDs. In the event you wish to use the TV/DVD in another country that uses different region discs, please visit www.umc-uk.co.uk.
- Page 21 7 Day TV Guide 7 DAY TV GUIDE TV Guide is available in Digital TV mode. It provides information about forthcoming programmes (where supported by the Freeview/Saorview channel). You can view the start and end time of all programmes and on all channels for the next 7 days and set reminders.
- Page 22 USB Record USB RECORD - FREEVIEW/SAORVIEW MODE ONLY APPLIES TO MODELS WITH USB RECORD USB RECORD – FREEVIEW/SAORVIEW MODE Built into this television is a USB record facility. This function is available in Freeview/Saorview mode when used in conjunction with a compatible USB memory stick or USB Hard drive. The benefi ts of this are as follows: •...
- Page 23 USB Mode/Media Player USB MODE/MEDIA PLAYER USB mode offers playback of various different types of content that you have saved on your USB Memory Stick. On switching to USB source the below menu screen will appear. The content will be divided into Photo, Music, Movie and Text based on fi...
-
Page 24: Using Your Tv With A Sky Digital Set Top Box
General Information USING YOUR TV WITH A SKY DIGITAL SET TOP BOX Option 1) Connecting your TV to your Sky box (when both the TV and Sky Box are located in the same room) Depending on your Sky Box & TV model, connect either by SCART or HDMI cables (available separately) If connecting by SCART, select the ‘Input source’... -
Page 25: Frequently Asked Questions
General Information FREQUENTLY ASKED QUESTIONS General I would like to have louder 1) Use the 3.5mm headphone output and a 3.5mm to phono cable sound by connecting (available separately) to connect to an amplifi er/surround sound system. additional speakers Please note this will deactivate the TV’s built in speakers. 2) Connect a COAX cable from the TV’s COAX output to your amplifi... -
Page 26: Technical Specification
General Information TECHNICAL SPECIFICATION Supplier Blaupunkt Model ID DVD models 23/157I-GB-3B-HBCDUP 23/157I-GB-3B-HBKDUP 23/157I-GB-3B-HBCUP 23/157I-GB-3B-HCDUP 23/157I-GB-3B-HBKUP 23/157I-GB-3B-HKDUP 23/157I-GB-3B-HCUP 23/157I-GW-3W-HBCDUP 23/157I-GB-3B-HKUP 23/157I-GW-3W-HBKDUP 23/157I-GW-3W-HCDUP 23/157I-GW-3W-HKDUP 23/157J-GB-3B-HCDU 23/157J-GB-3B-HKDU Energy effi ency class Visible screen size (diagonal) 58 cm / 23 inches On mode model average power consumption... -
Page 27: General Information
General Information TECHNICAL SPECIFICATION Compatible fi les in USB Mode Codec Media File Ext. Remark Video Audio Max Resolution: 1920x1080 .mpg MPEG-1, MPEG-2 Max Data rate: 40 Mbps Xvid, MJPEG, .avi MPEG-4 SP/ASP, H.264 MPEG-2, H.264 Max Resolution: 1920x1080 MP3, WMA, .mov/ MPEG-4 SP/ASP, Movie... - Page 28 BLA/MAN/0268...
