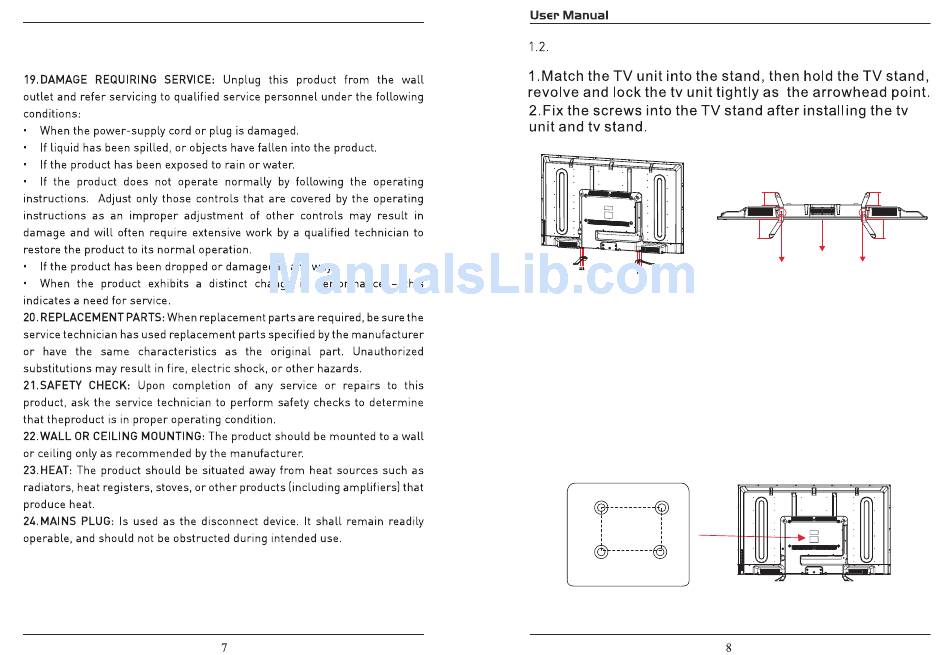

TV Base Stand assemble

6 Screws (23BMH)
3.Mounting on the wall
This unit is VESA-complian,and is designed to be wall-mounted
with a VESA-compliant 15.75"x7.87"(400mmx200mm)mounting kit
designde for flat-panel TVs(not supplied).Mount this unit according
to the instructions included in the monting kit. Length of screw should
not exceed 12 mm
NOTE
Remove the base stand before mounting the unit on the wall.
400mm
200mm
Four mounting holes
(size M6 screw)
Short Short
Long Long
Panel side
R L
