MULTISWITCH
Owner's Manual
Owner's Manual
Owner's Manual
Owner's Manual
multiswitch™ 1.41
Firmware-Version 1.06
OS- Version 1.02
The information contained in this manual is subject to change without
prior notice. All rights reserved.
th
Current as of: Juli 19
2012
© 2005-2012
Aqua Computer GmbH & Co. KG
- 1 -
Gelliehäuser Str. 1, 37130 Gleichen
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Aqua Computer multiswitch 1.41
Summary of Contents for Aqua Computer multiswitch 1.41

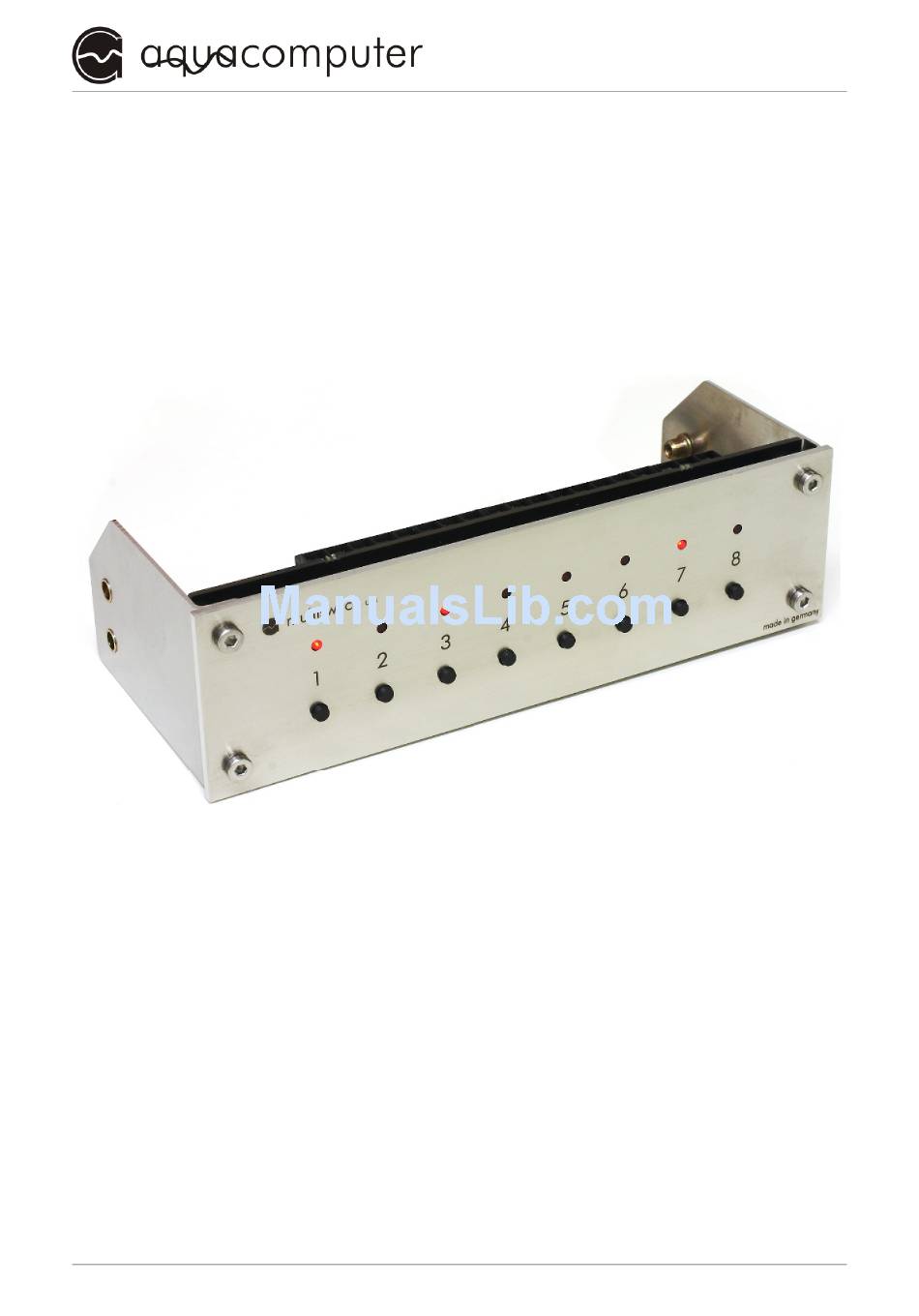

- Page 1 OS- Version 1.02 The information contained in this manual is subject to change without prior notice. All rights reserved. Current as of: Juli 19 2012 © 2005-2012 Aqua Computer GmbH & Co. KG - 1 - Gelliehäuser Str. 1, 37130 Gleichen...
-
Page 2: Table Of Contents
Jumper position 3: Deactivate PWM function .........9 Jumper position 4: Button function............10 Jumper position 5: USB/aquabus............10 6. Initial operation............11 7. Further details...............12 7.1. Changing the front plate..............12 8. Technical Data.............12 - 2 - Aqua Computer GmbH & Co. KG © 2005-2012 Gelliehäuser Str. 1, 37130 Gleichen... -
Page 3: Contents Of Package
It therefore is possible that your product does not correspond precisely to the descriptions or especially the illustrations in this manual. Your Aqua Computer Team © 2005-2012 Aqua Computer GmbH & Co. KG - 3 - Gelliehäuser Str. 1, 37130 Gleichen... -
Page 4: Safety Precautions
Aqua Computer GmbH & Co. KG for any damages resulting from Aqua Computer GmbH & Co. KG for any damages resulting from Aqua Computer GmbH &... -
Page 5: Connecting External Components
Please consult the manual of your mainboard for help. Pin assignment: Pin 1: GND black wire Pin 2: GND black wire © 2005-2012 Aqua Computer GmbH & Co. KG - 5 - Gelliehäuser Str. 1, 37130 Gleichen... -
Page 6: Aquabus (I2C-Bus)
Terminal strip 2 contact 1: Output 4 +12 V enabled Terminal strip 2 contact 2: Output 4 GND Terminal strip 2 contact 3: Output 3 +12 V enabled - 6 - Aqua Computer GmbH & Co. KG © 2005-2012 Gelliehäuser Str. 1, 37130 Gleichen... -
Page 7: Led-Outputs
Pin 10: GND LED 5 Pin 11: VCC LED 6 Pin 12: GND LED 6 Pin 13: VCC LED 7 Pin 14: GND LED 7 © 2005-2012 Aqua Computer GmbH & Co. KG - 7 - Gelliehäuser Str. 1, 37130 Gleichen... -
Page 8: Relay
Revision Controller 1 Revision Controller 2 Revision Controller 2 Revision Controller 2 Revision Controller 2 1.0 or higher not possible 1.5 or higher 3.0 or higher - 8 - Aqua Computer GmbH & Co. KG © 2005-2012 Gelliehäuser Str. 1, 37130 Gleichen... -
Page 9: Configuration
LEDs to be controlled in brightness. You must must must must check if all all all all connected devices are able to © 2005-2012 Aqua Computer GmbH & Co. KG - 9 - Gelliehäuser Str. 1, 37130 Gleichen... -
Page 10: Jumper Position 4: Button Function
Jumper position 5: USB/aquabus This jumper configures which interface of the multiswitch is active. Jumper open: USB enabled, aquabus disabled Jumper closed: aquabus enabled, USB disabled - 10 - Aqua Computer GmbH & Co. KG © 2005-2012 Gelliehäuser Str. 1, 37130 Gleichen... -
Page 11: Initial Operation
To conveniently operate the device the aquasuite software can be used. Software and updates may be found in the internet at http://www.aqua- computer.de in the section „Support“. © 2005-2012 Aqua Computer GmbH & Co. KG - 11 - Gelliehäuser Str. 1, 37130 Gleichen... -
Page 12: Further Details
MULTISWITCH 7. Further details 7. Further details 7. Further details 7. Further details 7.1. Changing the front plate 7.1. Changing the front plate 7.1. Changing the front plate 7.1. Changing the front plate The front plate of the multiswitch™ (not multiswitch LT™ version) can be exchanged for different colored plates (not included in delivery).
