WARNING
This operating manual has been writen following the original BENDIX KLN 94 Pilot's
Guide, but it's not intended to be valid for training purposes other than its use with
Microsoft ® Flight Simulator. We consider very interesting to read the original BENDIX
KLN 94 Pilot's Guide to know better this wonderful GPS.
FriendlyPanels
www.friendlypanels.net
fpanels@friendlypanels.net

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BENDIX KLN 94 GPS and is the answer not in the manual?

Questions and answers

Summary of Contents for FriendlyPanels BENDIX KLN 94 GPS

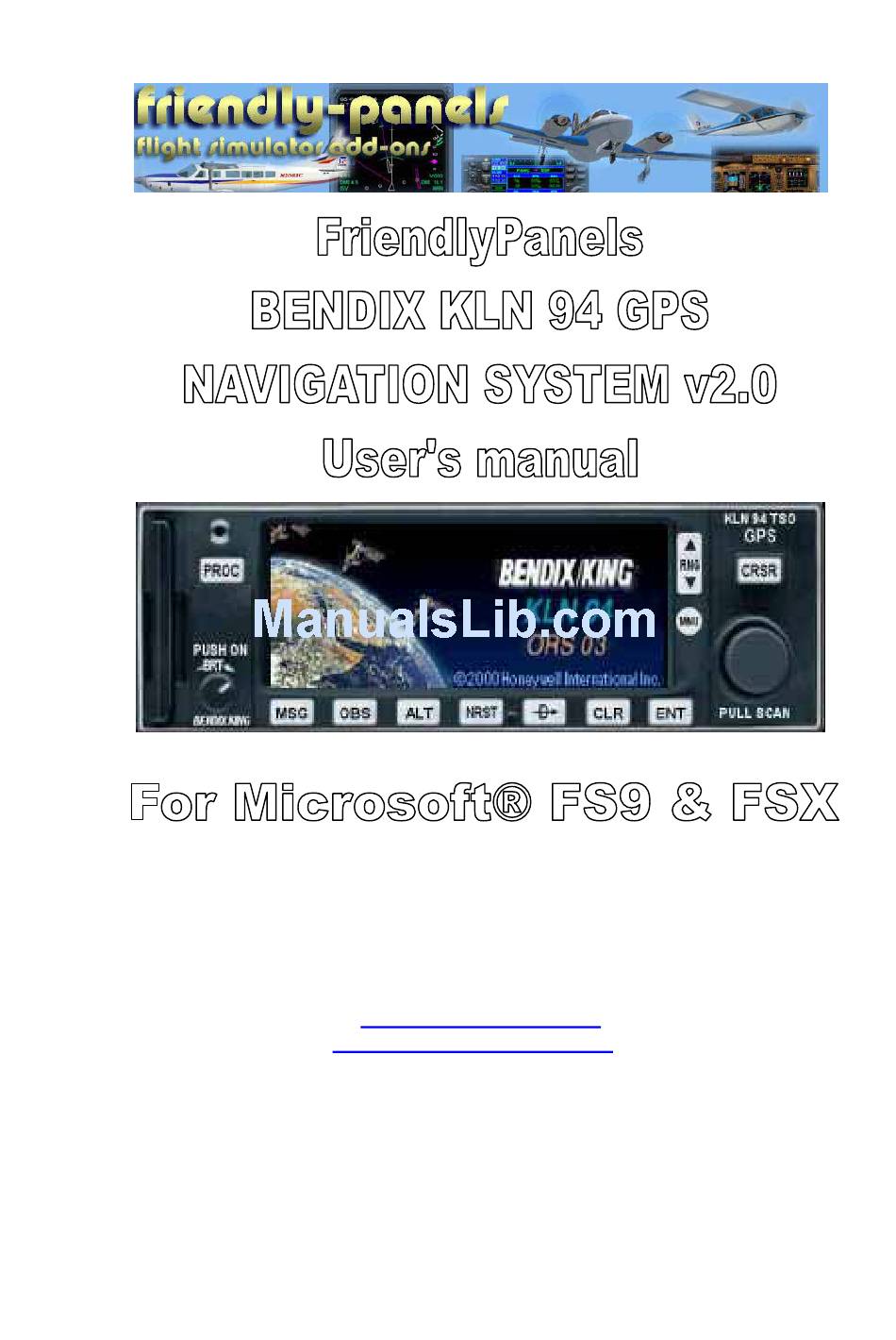

  • Page 1 FriendlyPanels Software WARNING This operating manual has been writen following the original BENDIX KLN 94 Pilot’s Guide, but it's not intended to be valid for training purposes other than its use with Microsoft ® Flight Simulator. We consider very interesting to read the original BENDIX KLN 94 Pilot’s Guide to know better this wonderful GPS.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION CLICKING AREAS THE NAV PAGES THE AIRPORT, INTERSECTION, NDB AND VOR PAGES THE NEAREST PAGES THE AUXILIARY PAGES THE DIRECT TO PAGE THE FLIGHT PLAN PAGE THE MESSAGE PAGE THE PROCEDURES PAGE 1.10 THE ALT PAGE...
  • Page 3 1. BENDIX KLN 94 GPS NAVIGATION SYSTEM The FriendlyPanels KLN94 has two knobs and eleven buttons. The bottom left little knob is only used to turn on/off the gauge. The outer right knob is used to select the pages group that can be displayed in the screen or to manage cursor.

  • Page 4: Clicking Areas

    the ENR, TERM or APR. Line 4 will normally display “LEG” which is the default mode. “OBS” is displayed when the pilot has selected the OBS mode. A Line 5 will appear in map modes to show the page you’re in NAV4 or NAV5 1.1 Clicking areas 1.
  • Page 5 NAV2: displays the aircraft’s present position: the radial and distance from a nearby VOR and current latitude and longitude of the aircraft. NAV3: The Navigation 3 page shows you several important times pertaining to your flight. Line 1: The current local time. Line 2: The time of departure. This is the time when a valid groundspeed was first greater than 30 knots (typically during takeoff).

  • Page 6: The Airport, Intersection, Ndb And Vor

    1.3 The Airport, Intersection, NDB and VOR pages There are ten pages in this group: 6 APT, 2 INT, 1 VOR and 1 NDB displaying info about their respective facilities. You can use the outer and inner knob and CRSR to manage through them.

  • Page 7: The Nearest

    1.4 The Nearest pages Push NRST button to access this five pages group (or use the outer knob untill you find this page) which displays info about their respective nearest facilities. You can use the outer and inner knob and CRSR to manage through them. Here is a couple of screenshots.

  • Page 8: The Flight Plan Page

    1.7 The Flight Plan page Use the outer knob to get to the Flight Plan List page. CRSR and outer knob allow you scrolling through this page. Inner know let you change the information displayed in the right column: Distance, ETE, ETA or DTK to waypoints. From these pages you can choose to select to fly Direct To a FPL waypoint and then continue the FPL from there.

  • Page 9: The Procedures Page

    Altitud are not available in this version. ALT 2, as Vertical Navigation page is not implemented in this version, shows the current altitud, the autopilot selected altitud, next waypoint and distance to it, ground speed and current vertical speed. --oOo-- 2007 FriendlyPanels...
