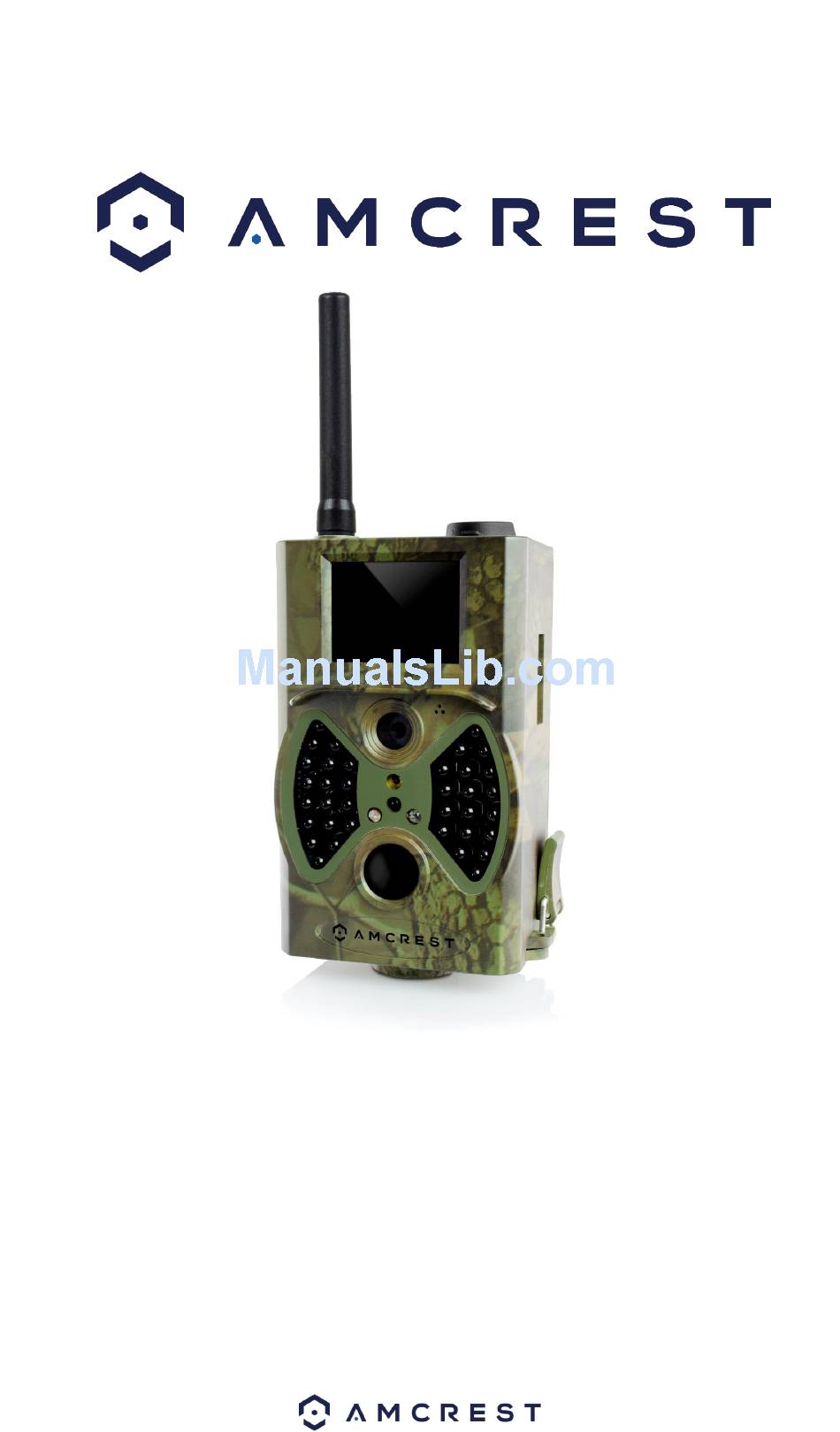

Wireless Game & Trail Hunting Camera
User Manual
ATC-1202W
Version 1.0.0
th
Revised June 25
, 2015
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATC-1202W and is the answer not in the manual?

Questions and answers

Summary of Contents for Amcrest ATC-1202W

  • Page 1 Wireless Game & Trail Hunting Camera User Manual ATC-1202W Version 1.0.0 Revised June 25 , 2015...

  • Page 2: Table Of Contents

    Table of Contents 1. Instructions ............................1 1.1 General Description ........................1 1.2 Camera Body Interface ........................1 1.3 Camera components and features ....................1 1.4 Remote Control ..........................1 1.4.1 Navigating..........................2 1.4.2 Characters ..........................2 1.5 Shooting Information Display ......................2 1.6 Supported Format .........................

  • Page 3: Instructions

    1. Instructions 1.1 General Description The Amcrest AT-1201 is a big game hunting camera which can be triggered by any movement in a specified region monitored by highly sensitive Passive Infrared (PIR) motion sensors. It can also automatically capture high quality pictures (up to 12 Megapixels) and record 1080p HD video clips (WVGA or QVGA).

  • Page 4: Navigating

    1.4.1 Navigating Press UP or DOWN to select or highlight a menu item, press LEFT or RIGHT to select the menu item options, and press OK to make a selection. 1.4.2 Characters Press the “*” button on the remote to activate the built-in laser pointer. 1.5 Shooting Information Display When the camera is turned on (the power switch is in the TEST position), the shooting information will be displayed on the LCD.

  • Page 5: Cautions

    2. Cautions The working voltage of the camera is 6.0V. The camera can be powered by four or eight AA batteries (using four AA batteries will offer less battery output). Please unlock write-protection before inserting the SD-card. Please insert the SD-card when the power switch is in the OFF position before testing the camera.

  • Page 6: Easy Operation

    3. Easy Operation 3.1 Power Supply To supply power to the camera, four or eight AA size batteries are needed. Open the bottom cover. Confirm that the power switch is in the OFF (right) position, pull out the battery holder. Load the fully charged batteries into the holder according to the polarity shown below.

  • Page 7: Power On And Enter The On Mode

    Insert a Micro SD card into the Micro SD card slot with contacts facing the front of the camera. Please note that the SD card can only be inserted in one direction. Make sure that the write-protection “Lock” switch of the SD-card is in the “Write” position (not locked). Insert the SIM card into the SIM card slot with the contact area facing the bottom of the camera.

  • Page 8: Advanced Operations

    4. Advanced Operations From the basic operations of the camera in previous chapters, we know that the camera has three basic operation modes: 1. OFF mode: Power switch is set to the OFF position (Right). 2. ON mode: Power switch is set to the ON position (Left). 3.

  • Page 9: Photo Settings

    4.1.1 Photo Settings 4.1.2 Video Settings...

  • Page 10: System Setting

    4.1.3 System Settings 4.1.4 MMS Menu Settings 4.1.5 SMTP Menu Settings...

  • Page 11: Default

    4.1.6 Default Default Settings are listed as below: Setting Default Options Mode Camera Camera, Video, Camera &Video Resolution (Camera) 12M,8M,5M Delay 5 Seconds 5-30 Seconds,1-30 Minute Multi Single Single,3,6,9 Pictures 100,200,400 Resolution (Video) 1080P 1080P,720P,WVGA,QVGA Video Length 10s,30s,60s,90s Same as last Date/Time time YY/MM/DD,MM/DD/YY,DD/MM/YY Adjust...

  • Page 12: Video Size

    c) Press DOWN to select Resolution. d) Press Right then select 12M. e) Press OK to save the current setting, then press menu to return to info display. Press MENU return to the info display without saving the settings. 4.1.9 Video Size This parameter also has four values: 1080P, 720P, WVGA, QVGA.

  • Page 13: Video Sound

    d) Press OK to save the current setting, then press menu to return to info display. Press MENU return to the info display without saving the settings. 4.1.14 Video Sound The following shows how to turn off the sound on the video recording: a) Press MENU to display the settings menu.

  • Page 14: Delete Photo Or Video

    b) Press RIGHT to view the latest picture (or video) on the LCD screen on the camera or TV monitor. c) Press LEFT to start playing the video being viewed. d) Press LEFT again to pause the video. e) Press UP to view the previous picture (or video) and DOWN for the next. f) Press OK to return to info display.
  • Page 15 5.1 MMS/SMTP Settings 5.1.1 Preparation for Setup 1. Must have a SIM card from a mobile provider that has 2G/GSM capabilities 2. Must have a 2GB MicroSD Card that has been formatted in the camera 3. Must have a Windows computer (Windows Vista or above) 4.
  • Page 16 5.1.3 SMTP Settings 1. With SD Card & SIM Card inserted, antenna attached, and camera powered, toggle the camera to test mode and check for cellular signal and the SIM card icon. 2. Connect the camera to a PC using the included USB cable, then open the MMSCONFIG software.

  • Page 17: Appendix I: Technical Specifications

    Appendix I: Technical Specifications Image Sensor Type(True 8 Mega Pixels Color CMOS Megapixels) Memory SD Card 8MB~32GB Lens F=3.1; FOV=60 ° Size 145mm * 80mm * 55 mm IR Filter: Full Automatic IR Filter TFT Display Screen: 2.0 inch PIR Sensitivity 3 sensitivity levels: High/Normal/Low PIR Sensor Sight Angle 100 Degrees...
