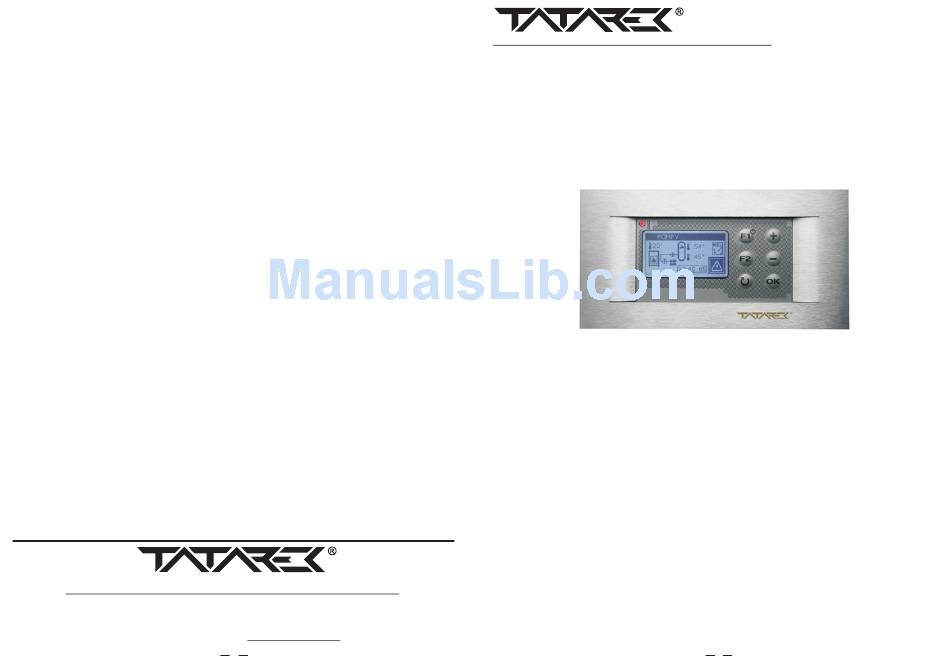

TATAREK RT-08G-BUF-SOLAR User Manual

Fireplace lux
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

Enlarged version
WARNING!!!
WE INFORM THAT THE OFFERED CONTROL UNIT
CAN BE ONLY APPLIED TO THE FITTING DEVICES.
THE REQUIREMENTS OF THE TECHNICAL AND
BUILDING STANDARDS CONCERNING THE
STOVE-FITTER AND HEATING
CORRECTNESS OF
SYSTEMS HANDLING THE FIREPLACE INPUTS MUST
BE MET.
WRONG USAGE OF THE CONTROL UNIT CAN LEAD
BOTH TO ITS DAMAGE AND IN EXTREME CASES TO THE
DAMAGE OF THE FIREPLACE INPUT AND HEATING
SYSTEM CONTROLLED BY THE FIREPLACE AS WELL ,
ALONG WITH THE DEVICES THAT COOPERATE WITH
THE HEATING SYSTEM.
Zakład elektroniczny TATAREK Jerzy Tatarek
50-559 Wroclaw, 75 Swieradowska st.
ph. (071) 367-21-67, 373-14-88, fax 373-14-58; Tax index number 899-020-21-48;
Bank account: BZ WBK S.A. WROCLAW 6910901522-0000-0000-5201-9335
www.tatarek.com.pl.; e-mail: tatarek@tatarek.com.pl
16
Zakład elektroniczny TATAREK Jerzy Tatarek

USER MANUAL

Program version 3.0 (
FIREPLACE LUX (RT-08G-BUF-SOLAR)
CONTROL UNIT OF THE HEATING SYSTEM
WITH THE FIREPLACE CONTROLLED
BY THE AIR DAMPER
The RT-08G-BUF -SOLAR control unit controls the heating system based on the water jacket
fireplace that is a heat source, in which the combustion process is controlled by the air damper. The
heat receivers is the buffer container (BUF), which is additionally loaded up from the solar collector
(KSL).
! The control unit is equipped with its own emergency power source - breaks in power
supplying up to 8 secs do not interrupt its operation (over the time the emergency buffering
power source is activated).
1.Basic technical parameters
Power
Power consumption without load
Max connection power
Operation conditions
Housing protection class
Fuse
Number of outputs to control pumps
Number of nonvoltage outputs
Number of outputs to control the air damper drive
Number of water temperature sensors
Temperature measurement precision
Temperature measurement resolution
RT08G_BUF_SOLAR/2012/v.3.0/ANG
)
30.07.2012
230V/50Hz
5W
750W
o
0-50 C, humidity 10-90%
(no condensation)
IP41
6,3A/250V
3 * 250W/230V/50Hz
1
1 * 5V/500mA/DC
3 * PT1000 (-50...+200 C )
o
2 C
o
0,5 C
1
o
