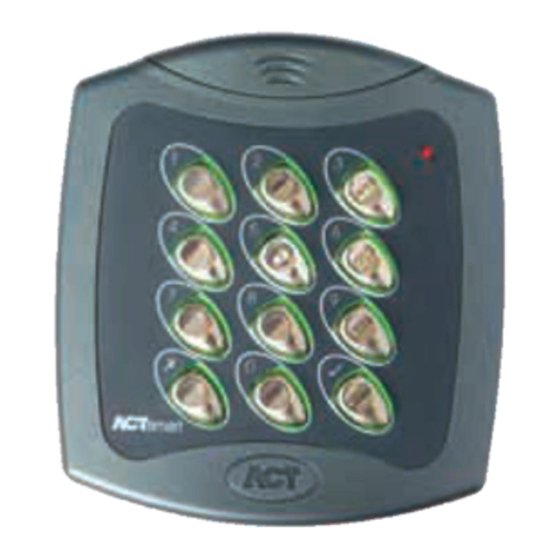

Summary of Contents for ACT Technology ACTSmart 2 1070

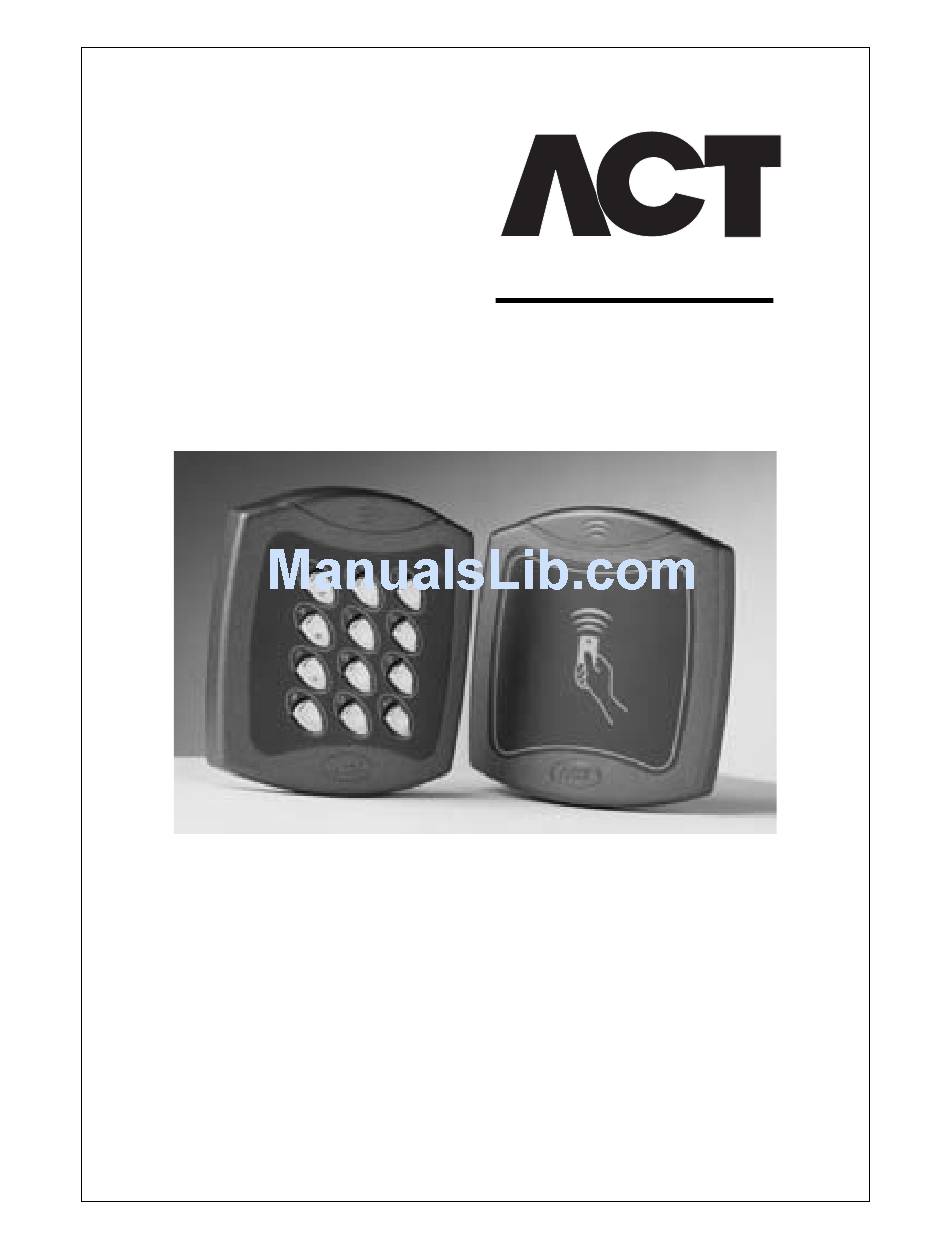

- Page 1 access control TECHNOLOGY Operating & Installation Instructions for ACTSmart Product Range...
-
Page 3: Table Of Contents
ACTSmart2 Operating and Installation Manual Rev. 1.0 Contents Installation Notes ....................4 Product Specification....................4 30 Second Programming Guide................5 Programming Summary..................6 ACTSmart Operation.....................7 ACTSmart Programming..................7 Adding a Card Batch ................8 Deleting a Card Batch ................8 Adding a PIN ..................8 Deleting a PIN ..................8 Adding a Card and PIN ................8 Deleting a Card and PIN ................8... -
Page 4: Installation Notes
ACTSmart2 Operating and Installation Manual Rev. 1.0 Installation Notes • Remember to Factory Default the ACTSmart before programming • Remember to place the supplied varistor across the terminals of the door strike coil to protect the relay contacts • Don’t mount the ACTSmart Prox units near RF sources (Eg mobile phones, radio transmitters, computer monitors) or metal surfaces. -
Page 5: 30 Second Programming Guide
ACTSmart2 Operating and Installation Manual Rev. 1.0 30 Second Programming Guide (For typical Standalone System) 1. Enter Programming Mode. ✘ Press button followed by the programming code (default is 9999) The LED will flash amber. 2. Add a Batch of Cards (ACT 1080 only) Press 10, then present the first card in the batch followed by the last card in the batch. -
Page 6: Programming Summary
ACTSmart2 Operating and Installation Manual Rev. 1.0 Programming Summary Code Function Default Add Card Batch Delete Card Batch Add PIN Code Delete PIN Add Card and PIN Delete Card and PIN Add Card Batch using keypad Delete Card Batch using keypad Add Random Card Set Door Relay Time 5 seconds... -
Page 7: Actsmart Operation
ACTSmart2 Operating and Installation Manual Rev. 1.0 ACTSmart Operation The ACTSmart family consists of Proximity only, Pin and Proximity and PIN only units. Each ACTSmart can operate in standalone mode. Up to 8 ACTSmart devices can be connected on a RS485 network. -
Page 8: Adding A Card Batch
ACTSmart2 Operating and Installation Manual Rev. 1.0 Adding a Card Batch: Step Keypad Entry Operation Add Card Batch Present Card First card in Batch (lowest number card) Present Card Last Card in Batch (highest number card) Enter 1-8, (optional)* Select each door this batch enabled for Press ✔... -
Page 9: Adding A Card Batch Using The Keypad
ACTSmart2 Operating and Installation Manual Rev. 1.0 Adding a Card Batch using the keypad: Step Keypad Entry Operation Add Card Batch Enter 10-digit card 10-digit First Card number with leading zeros. number Eg. Card 54321 enter 0000054321. Enter 10-digit card number Second Card number 1-8, (optional)* Select each door to which these cards are enabled... -
Page 10: Change Programming Code
ACTSmart2 Operating and Installation Manual Rev. 1.0 Change Programming Code: Step Keypad Entry Operation Change Programming code 0001-9999 New 4 - 6 digit programming code Change Number of PIN Digits: Step Keypad Entry Operation Change Number of PIN digits Select number of PIN digits in range 4 to 6. When set, the codes require leading zeros Eg. -
Page 11: Programming Actsmart Options
ACTSmart2 Operating and Installation Manual Rev. 1.0 Programming ACTSmart Options: Step Keypad Entry Operation 30-41 Select Option Number 0 or 1 0 = Off, 1 = On 1-8, (optional)* Select each door this option is set for Press ✔ End setting options Option Function Default... -
Page 12: Setting Programmable Input Function
ACTSmart2 Operating and Installation Manual Rev. 1.0 Setting Programmable Input Function: Step Keypad Entry Operation Set Input Function (Door Release button is default) Select I/O Function Code (see below for explanation of codes) 1-8 (optional)* Select each door this function is valid for Press ✔... -
Page 13: Quick Io Setup
ACTSmart2 Operating and Installation Manual Rev. 1.0 Quick IO Setup: Step Keypad Entry Operation Set Input Output Functions (0 - is default) Select a code Prog Input AUX IO 1 AUX IO 2 Door Release Button Door Contact Door Alarm Door Release Button Door Contact Buzzer... -
Page 14: Add Random Card For Second Door
ACTSmart2 Operating and Installation Manual Rev. 1.0 Add Random Card for Second Door: Step Keypad Entry Operation Add random card for Second Door (I/O function code 12 must be set for the Aux O/P) Enter 1-8, (optional)* Select each door these cards enabled for Press ✔... -
Page 15: Programming A Network System
ACTSmart2 Operating and Installation Manual Rev. 1.0 Programming a Network System Up to 8 ACTSmart devices can be connected on the network. See the ACTSmart Network Installation diagram to complete the necessary connections. Programming Door Numbers To allow some users through a door and prevent access to other users, each ACTSmart on the network must be given a door number (1-8). -
Page 16: Find Door Number
ACTSmart2 Operating and Installation Manual Rev. 1.0 Find Door Number: Step Keypad Entry Operation Find Door Numbers Enter the door number to be found. The ACTSmart assigned the door number starts to beep. Press a key or present To stop the ACTSmart beeping. a card Find All Door Numbers: Step Keypad Entry... -
Page 17: Programming Actsmart Prox Only
ACTSmart2 Operating and Installation Manual Rev. 1.0 Programming ACTSmart Prox Only To program an ACTSmart Prox Only device, a Programming Card must be assigned to the ACTSmart. The Programming Card may be any proximity card. To set the Programming Card into the ACTSmart Prox, power up the device with the tamper open (by removing the main unit from the mounting plate or the surface mount collar), and immediately present a card twice. - Page 23 ACTSmart2 Operating and Installation Manual Rev. 1.0 NOTES...
-
Page 24: User List
access control TECHNOLOGY Smart User List Doors User Name Card Number Access Control Technology, Unit 8, IDA Business Park, Whitestown, Dublin 24, Ireland. TEL:353-1-4622585 FAX: 353-1-4622587 WEB: http://www.accesscontrol.ie E-MAIL: sales@ accesscontrol.ie...
