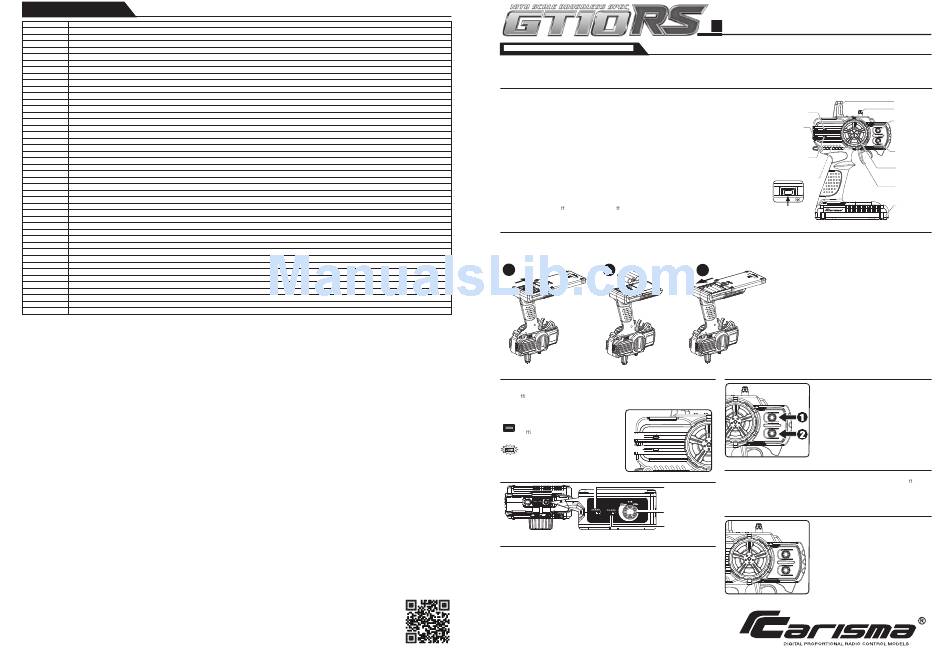

SPARE PARTS LIST
ITEM NO.
PRODUCT NAME
14103
FRONT HUB/STEERING ARM SET
14104
REAR HUB SET
14114
STEERING POST SET
14129
LOCK NUT (4MM AND 3MM)
14130
BALL BEARING 4X10X3 AND 8X12X3.5
14131
BALL BEARING 5X11X4
14139
SPUR GEAR 72T
14986
WHEEL HEX/DRIVE PIN SET
14994
HINGE PIN BRACE SET
15015
METAL MAIN DRIVE SHAFT FOR METAL DIFFERENTIAL GEAR
15224
BODY CLIP SET (S/M/L)
15239
INPUT GEAR SHAFT SET (F/R)
15339
GT10RS MERCEDES-AMG C-COUPE DTM 2014 (WHITE) CAR BODY PAINTED AND DECORATED BODY
15340
GT10RS MERCEDES-AMG C-COUPE DTM 2014 (RED) CAR BODY PAINTED AND DECORATED BODY
15343
GT10RS MERCEDES-AMG C-COUPE DTM 2014 (RED) CLEAR CAR BODY
15347
GT10RS MERCEDES-AMG C-COUPE DTM 2014 CAR BODY PLASTIC PARTS + REAR BUMPER SET
15348
GT10RS MERCEDES-AMG C-COUPE DTM 2014 FRONT BUMPER SET
15349
GT10RS FRONT SHOCK ASSEMBLED (PR.)
15350
GT10RS REAR SHOCK ASSEMBLED (PR.)
15352
PINION GEAR 24T
15354
GT10RS FRONT DOG BONE PAIR
15355
GT10RS REAR DOG BONE PAIR
15356
GT10RS DIFFERENTIAL OUTDRIVE SET
15357
GT10RS OUTDRIVE
15358
GT10RS THREAD ROD SET
15362
GT10RS SLIPPER SET
15363
GT10RS MERCEDES-AMG C-COUPE DTM 2014 (WHITE) CLEAR CAR BODY
15364
GT10RS SUSPENSION PIN SET
15367
MRS-540BL SERVO + RECEIVER +ESC UNIT
15368
SERVO MS-1135W
15369
GT10RS MERCEDES-AMG C-COUPE DTM 2014 LED ASSEMBLE
15370
GT10RS DIFF. GEAR SET
15371
GT10RS AUDI RS5 DTM 2014 ( RED) CAR BODY PAINTED AND DECORATED BODY
15373
GT10RS AUDI RS5 DTM 2014 CAR BODY PLASTIC PARTS + REAR BUMPER SET
15374
GT10RS AUDI RS5 DTM 2014 (RED) CLEAR CAR BODY
15376
GT10RS AUDI RS5 DTM 2014 WHEEL ASSEMBELED (PAIR)
15378
GT10RS AUDI RS5 DTM 2014 FRONT BUMPER SET
15379
GT10RS AUDI RS5 DTM 2014 LED ASSEMBLE
15437
GT10RS BMW M4 DTM 2014 ( WHITE ) CAR BODY PAINTED AND DECORATED BODY
15438
GT10RS BMW M4 DTM 2014 CAR BODY PLASTIC PARTS + REAR BUMPER SET
15440
GT10RS BMW M4 DTM 2014 ( WHITE ) CLEAR CAR BODY
15441
GT10RS BMW M4 DTM 2014 WHEEL ASSEMBELED (PAIR)
15443
GT10RS BMW M4 DTM 2014 FRONT BUMPER SET
15444
GT10RS BMW M4 DTM 2014 LED ASSEMBLE
Visit Us on
www.carisma.com.hk
www.carisma-shop.com
Also avaliable at
©2015 Carisma. All Rights Reserved. Product specifications are subject to change.
Some models shown are prototypes which may vary slightly from what is inside.
ABOUT THE RADIO SYSTEM
ABOUT THE RADIO SYSTEM
Carisma CTX-2710 2.4GHz FHSS Technology System
The following is an overview of the various functions and adjustments found on CTX-2710 radio system for Carisma models. It is important to read and understand about all
of these functions and adjustments before driving.
FUNCTIONS
TRANSMITTER CTX-2710
Steering Wheel : Control direction (Left / Right) of the RC model.
Throttle Trigger : Control speed and direction (Forward/Brake/Backward) of the driving model.
Antenna : Transmit signal to the model.
Power ON / OFF : Power ON / OFF the transmitter
SYNC & Battery Indicator : Top Green LED light indicates synchronization status and/or adequate
battery power supply.
Power Indicator : Bottom Red LED light indicates Power "ON".
Dual Rate Dial : Adjust the maximum steering angle on both sides when model turns Left / Right
ST. Trim Dial : Adjust the neutral position of steering servo when model wheels are straight
ahead.
TH. Trim Dial : Make sure the model stays still when releasing the throttle trigger.
Battery Compartment Tray : Cover and hold the batteries powering the transmitter.
* In general, user will experience under steer when making a wide turn at high speed or over steer
when making sharp turn at high speed (easy to spin out). User should practice the Throttle and
steering approach for di erent cornering at di erent speed or road surface.
Battery Installation
1. Supplied with 4 x 1.5V AA Batteries,
radio can be operated a few hours.
Installation: Remove the battery
compartment cover as shown below.
1
Battery LED Indicator
The Green LED indicator located on the front left side of the transmitter indicates the
power supply of batteries. The green LED will go solid on indicating that the batteries
have su cient power. When batteries voltage drops below 4 volts, LED will turn to
Flashing RED, indicating the batteries power is low and should be replaced.
Solid GREEN :
Su cient Power supply
Flashing RED :
Time to replace batteries
Top Control Panel
Reversing
Reversing is used to change the response direction of steering wheel and throttle trigger.
CTX-2710 Transmitter features 2 reversing functions: Steering Reverse and Throttle Reverse.
Steering Reverse: Reverse the response direction when operating steering wheel.
Turning left steering wheel, the model turns right while turning right the model turns left.
Throttle Reverse: Reverse the response direction when operating throttle trigger.
Pushing forward throttle trigger the model moves backward while pulling back, the
model moves forward. If necessary you can just use a small screwdriver to adjust the
or responding switches.
Printed in China
MAN-G00607
INSTRUCTION MANUAL
INSTRUCTION MANUAL
Level Indicator
ON / OFF
SYNC Button
(Synchronization)
2.Install the batteries observing
3.Then reinstall the battery
Warning :
the polarity marked on battery
compartment cover as the
Never disassemble batteries or put the batteries
compartment.
Picture shown below.
in fire, chemical agents, otherwise they may cause
personal injuries or property damages.
2
3
Battery Disposal :
Observe corresponding regulations about wasted
battery treatment regulations.
1. After running out of power, dispose of wasted
2. Submit the wasted batteries to specific recycling
Pre-Run Check
ST.TRIM
Green
Green
TH.TRIM
Red
Red
Dual Rate Dial
Dual Rate Dial enables to adjust the same maximum steering angle of servo on both
sides (Left and Right) when model makes steering. The Dual Rate Dial a ects the
Steering Reverse
sensitivity of servo. Reducing dual rate value can lower the sensitivity of servo and
Switch
reduce the same maximum steering angle on both sides. Remember to adjust the
dual rate value within the adjustment range.
Trimming
Dual Rate Dial
Throttle Reverse
Switch
ST.TRIM
TH.TRIM
Antenna
SYNC and
Battery
Dual Rate Dial
Steering Trim
Power
Dial
ST.TRIM
TH.TRIM
Throttle Trim
Power
Dial
Indicator
Steering
Wheel
SYNC
Throttle
Trigger
SYNC
Battery
Compartment
Tray
CTX-2710
batteries in designated areas far away from
water supply, household areas and planted areas.
stations.
1. Steering : Adjust the steering trim to keep the
front wheels in straight line when steering wheel
remains in NEUTRAL position.
2. Throttle : Adjust the throttle trim to ensure
the rear wheels stop rotating when throttle
trigger remains in NEUTRAL position.
* Always turn on the transmitter first by sliding
the switch on the left side from bottom to top.
The small red and green lights above the switch
should both light up. If not, you need to check
for low or incorrectly installed batteries.
CTX-2710 features two trimming functions:
Steering Trim and Throttle Trim.
Steering Trim Dial :
Adjust the neutral position of steering servo
when the wheels are straight ahead.
Normally steering trim is adjusted until the
model can keep straight tracks.
Throttle Trim Dial :
Adjust neutral position of throttle servo.
Make sure the model stays still when
releasing the throttle trigger.
