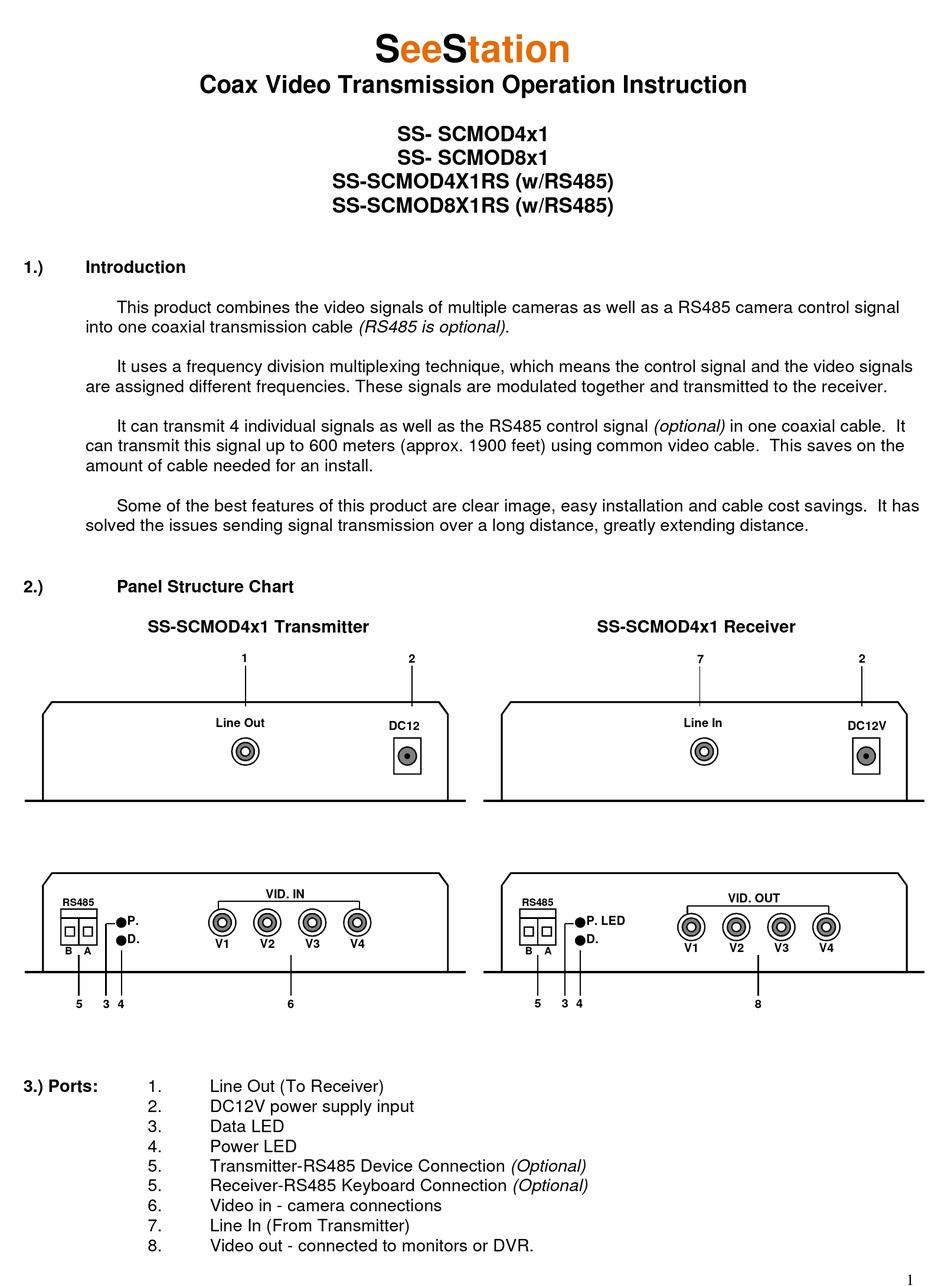

SEESTATION SS-SCMOD4x1 Operation Instruction

Coax Video Transmission Operation Instruction
1.)

Introduction

This product combines the video signals of multiple cameras as well as a RS485 camera control signal
into one coaxial transmission cable (RS485 is optional).
It uses a frequency division multiplexing technique, which means the control signal and the video signals
are assigned different frequencies. These signals are modulated together and transmitted to the receiver.
It can transmit 4 individual signals as well as the RS485 control signal (optional) in one coaxial cable. It
can transmit this signal up to 600 meters (approx. 1900 feet) using common video cable. This saves on the
amount of cable needed for an install.
Some of the best features of this product are clear image, easy installation and cable cost savings. It has
solved the issues sending signal transmission over a long distance, greatly extending distance.
2.)

Panel Structure Chart

SS-SCMOD4x1 Transmitter
RS485
P.
LED
D.
B A
LED
5 3 4

3.) Ports:

1.
2.
3.
4.
5.
5.
6.
7.
8.
S
SS-SCMOD4X1RS (w/RS485)
SS-SCMOD8X1RS (w/RS485)
1
Line Out
OUT
VID. IN
V1 V2 V3 V4
6
Line Out (To Receiver)
DC12V power supply input
Data LED
Power LED
Transmitter-RS485 Device Connection (Optional)
Receiver-RS485 Keyboard Connection (Optional)
Video in - camera connections
Line In (From Transmitter)
Video out - connected to monitors or DVR.
ee tation S
SS- SCMOD4x1
SS- SCMOD8x1
2
DC12
V
RS485
B A
5 3 4
SS-SCMOD4x1 Receiver
7
Line In
IN
VID. OUT
OUT
P. LED
D.
V1 V2
LED
8
2
DC12V
V3 V4
