SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE
An French manual is available upon request. Order P/N 506065-02.
Ce manuel est disponible en francais, simplement en faire la demande. Numéro
de la pièce 506065-02.
• Hot! Do not touch! The glass and
surfaces of this appliance will be hot
during operation and will retain heat
for a while after shutting off the appli-
ance. Severe burns may result.
• Carefully supervise children in the
same room as appliance.
• If small children are present in the home, it is
recommended that this appliance be fitted with
an adjustable safety gate or barrier screen.
WARNING
Listed to standards:
ULC-S610 and UL-127
Report # 3151759
PIBISNOVA REV. 4 05/2013
INSTALLATION AND
OPERATION INSTRUCTIONS
BIS

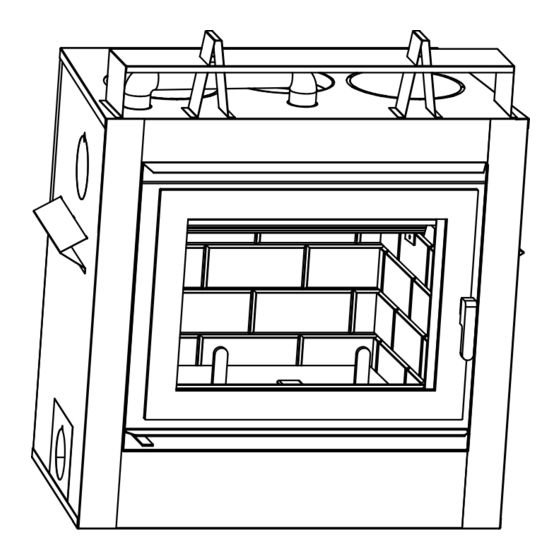

EPA Wood-Burning Fireplace
P/N 506065-01 REV. D 05/2013
MODELS
BISNOVABK
This installation manual will enable you to obtain a safe, efficient and
dependable installation of your fireplace system. Please read and
understand these instructions before beginning your installation.
Do not alter or modify the fireplace or its components under any circum-
stances. Any modification or alteration of the fireplace system, including
but not limited to the fireplace, chimney components and accessories,
may void the warranty, listings and approvals of this system and could
result in an unsafe and potentially dangerous installation.
IHP wood-burning fireplaces are designed for use as a supplemental
heater. They are not intended for continuous use as a primary heat
source.
• The fireplace cannot be operated without a door
or firescreen. Consult your dealer to select the
correct replacement door or firescreen.
• The fireplace is equipped with a blower, electri-
cal connection must be made prior to fireplace
installation
• Important! To assure proper alignment of glass
doors: Install this fireplace in a square and
plumb condition, using shims as necessary at
sides and/or bottom.
• Install the fireplace only as described in these
instructions.
Nova
®
WARNING
Advertisement
Table of Contents
Related Manuals for Security Chimneys BIS Nova
Summary of Contents for Security Chimneys BIS Nova
-
Page 1: Operation Instructions
INSTALLATION AND OPERATION INSTRUCTIONS Nova ® EPA Wood-Burning Fireplace P/N 506065-01 REV. D 05/2013 MODELS BISNOVABK This installation manual will enable you to obtain a safe, efficient and dependable installation of your fireplace system. Please read and understand these instructions before beginning your installation. Do not alter or modify the fireplace or its components under any circum- stances. -
Page 2: Safety Rules
IMPORTANT! GENERAL SAFETY WARNING WARNING PRECAUTIONS. READ AND UNDERSTAND THESE SAFETY Be careful adding wood fuel to the Use care when selecting window RULES BEFORE YOUR FIRST FIRE. treatments for windows located fire or handling fireplace tools such near the fireplace. Avoid using as shovels, tongs or pokers. -
Page 3: Table Of Contents
USE SOLID NATURAL WOOD FUEL ONLY. The Troubleshooting ......Page 4 building permit and check your local building BIS Nova fireplace is designed to work best Important Cautions ......Page 5 codes. Install the fireplace only as described when fueled with dry seasoned natural wood... -
Page 4: Starting And Maintaining A Fire
1 to 2 inches apart and allowing air this manner. Small dry pieces of softwood and The BIS Nova fireplace will operate best if at- to get under the fuel. Criss-crossing or arrang- construction scraps will burn very intensely us-... -
Page 5: Important Cautions
MAINTAINING YOUR BIS NOVA A. Negative pressure in the house 5. Check outside to ensure that sparks and hot ® As the fire burns, air goes up the chimney. embers coming out of the chimney are not FIREPLACE This air must be replaced through leakage igniting the roof. -
Page 6: Disposing Of Ashes
1. Remove the bottom refractory 2. Remove the front refractories 3. Remove the left side refractory • Use only a IHP glass doors, specifically designed for the BIS Nova 4. Remove the right side refractory fireplace. 5. Remove the back refractory •... -
Page 7: Glass Care - Replacement
OR BROKEN GLASS. Glass Cleaning The BIS Nova fireplace may be installed The BIS Nova fireplace is designed to keep the directly on the floor or on a raised base (for Gasket Length* Dimensions Part No. -
Page 8: Optional Cast Facade Installation
Optional Cast Facade installation WARNING: THE HEARTH EXTEN- Install the Facade per instructions provided Fireplace SION IS TO BE INSTALLED ONLY in Facade Kit (ordered separately - see Page 21). AS ILLUSTRATED. The crack between the fireplace Framing, Facing And Mantel and the hearth extension must be Safety Metal Strip sealed with a non-combustible... -
Page 9: Framing, Facing And Mantel
Back Wall of Chase/Enclosure OUTSIDE CHASE Including Finishing Materials, if any Corner Installation FRAMING DIMENSIONS 20-5/8” 35-7/8 911 mm 37-5/8” 956 mm * Zero Clearance 29-1/8” 740 mm From Back Spacer to Wall 12-1/2” 318 mm 70” 1778 mm 35” 889 mm Rough Framing Face (Unfinished Shown) 18-5/8”... - Page 10 Insulate Joists Same As Ceiling Insulated Chase Construction Storm Collar Roof Support Flashing Draft Stops Attic Radiation Shield Floor Ceiling NOTE: It is recommended that Firestop Wall the chase walls and floor be insulated in the same manner, CTDT Termination using the same insulation, as the rest of the building, below •...
-
Page 11: Fireplace Blower
* The height of the louver must be measured as the fireplace, or one or both of the outlets Spacer from the base of the BIS Nova fireplace to the can be installed in adjacent or upper rooms. middle point of the louver. -
Page 12: Central Forced Air Kit
This the insulation in order to obtain two 8” dia. BIS Nova fireplace hot air exhaust. thermostat will turn on the blower when the openings. Fix the adaptors on the fireplace 7. -
Page 13: Outside Air Kit
Adaptor Insulated Flex Pipe Figure 17 Insulation Blower Flex 5” Diameter Tightening Collar Aluminum Tape Figure 18 (fireplace and AC chimney) OUTSIDE AIR KIT The outside air kit is optional on the BIS Nova fireplace, but mandatory ® on the AC chimney. It can be burned drawing air only from the house. When the fireplace is in operation with the door closed, it will pull only a slight amount of air from the house. -
Page 14: Chimney System
NOTE: Local codes may not require firestopping at the ceiling levels for Insulation outside chase installations. However, it is recommended for safety and the reduction of heat loss. Flexible Pipe Figure 21 Aluminum Tape NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE. Available from Security Chimneys™... -
Page 15: Chimney Installation Instructions
7. Install the chimney cap. Once the chimney cap is in place, the roof flashing can be washed with a solvent or vinegar and then painted with rust-proof paint. Available from Security Chimneys™ NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE. -
Page 16: Offset Chimney Installation
When an offset is needed • A maximum of 2 offsets are allowed. immediately off the top of the fireplace, an elbow starter section, AC6SB30 (H3780 is available. NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE. Available from Security Chimneys™... - Page 17 (2740 mm) NOTE: With the AC chimney , a starting length of 6” high must be used on top of the fireplace before installing an elbow. Figure 28 Available from Security Chimneys™ NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
-
Page 18: Angled Wall Radiation Shield
Offset Support Framing 2” x 3” Insulated Wall Radiation Shield NOTE: In cold areas it is recom- mended to protect the chimney in a insulated chase. Figure 30 Available from Security Chimneys™ NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE. -
Page 19: Chimney Support Installation
16” (410 mm) horizontally, and 18” (460 mm) verti- cally. This separation is to prevent smoke migrating from one chimney to another (see Figure 32). Figure 33 Available from Security Chimneys™ NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE. -
Page 20: Masonry Application Instructions
Tubinox * or Projet SS * 3 Screws ASHT+ or HT6103+ Liner Must Slide at Least 2” Inside Length Insulated Length 6’ 8” Masonry Chimney, New or Existing FIREPLACE Figure 34 Available from Security Chimneys™ NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE. -
Page 21: Installation Accessories
NOVA - Approved Venting Components manu- ® place, UZIAD factured by Security Chimneys International™ only. Outside Air Ducting - includes 4” insulated flex x 10’ long, UZI • 6” diameter chimney - AC (air cooled), Secure Temp ASHT+ (or Nova Temp ®... -
Page 22: Replacement Parts
REPLACEMENT PARTS LIST SPECIFICATIONS Nova Replacement Parts ® Cat. No. / Model Description Description Part/Cat. No. BISNOVABK BIS Nova Black Fireplace Andiron (2 pieces) PR-SR2875 Bottom refractory PR-SR2825 Back refractory PR-SR2826 Product Reference Information Left side refractory PR-SR2828 Weight 215 lbs... -
Page 23: Chimney Components Lists
SECURITY CHIMNEYS™ - PARTS AND COMPONENTS LISTS The components listed below must be ordered from Security Chimneys International™. Contact your Security Chimneys Distributor or Dealer for ordering information. Security Chimneys International Limited 450-973-9999 (AC) Air-Cooled Chimney System* 2125 Monterey, Laval, Quebec 1-800-361-4909 (USA) 6”... - Page 24 SECURITY CHIMNEYS™ - PARTS AND COMPONENTS LISTS The components listed below must be ordered from Security Chimneys International™. Contact your Security Chimneys Distributor or Dealer for ordering information. Security Chimneys International Limited 450-973-9999 2125 Monterey, Laval, Quebec 1-800-361-4909 (USA) Canada, H7L 3T6 1-800-667-3387 (Canada) www.securitychimneys.com...
- Page 25 NOTES NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
-
Page 26: Product Reference Information
WARRANTY Normally, all parts should be ordered through your IHP distributor or dealer. Parts will be shipped at prevailing prices at time of order. Your fireplace is covered by a limited warranty. Please read the warranty When ordering repair parts, always give the following information: to be familiar with its coverage.
