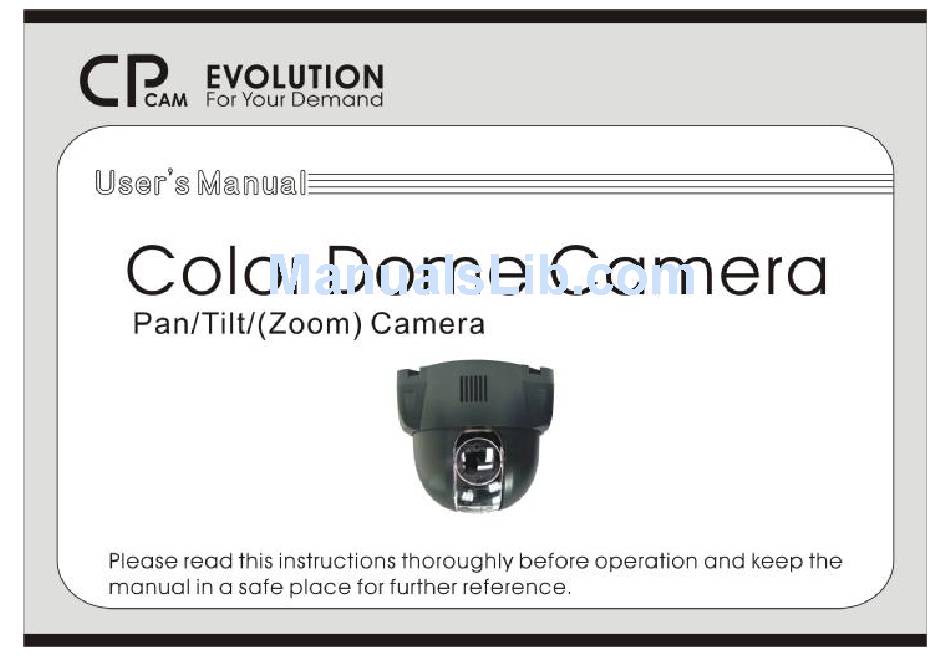

  • Page 1 CPC504-A V1.0...
  • Page 2 v WARNING We reserve the right to make improvements to the documentation, software and firmware of its products without notice. In order to provide users with better operation of this product, information in this manual is intended to be accurate and reliable. However, we assume no responsibility for its use;...
  • Page 3 • Please lift and place this equipment gently. • Do not expose this equipment to direct sunlight. • Do not use this equipment near water or in contact with water. • Do not spill liquid of any kind on the equipment. •...

  • Page 4: Table Of Contents

    v TABLE OF CONTENTS 1. PRODUCT INTRODUCTION …………………………………………………………………………………………………………………….1 Features ………………………………………………………………………………..……………………………….3 Description ………………………….…………………………………………………...……………………………….3 Precautions ……………..………………………………………….………………...………………………………..4 Specifications …………………………………………………….………………...…….………………………..6 Package content …………………………….…………………….………...…….………………………..7 Operating and installation ………………………………………………….………………….….………...…….……………………….10 Connection 2. SITUATION SIMULATE ……………………………………..…………………….….……...…….………………………..12 Situation simulate ……………..……….……….……………………….…….…………………...12 STEP1 : SET THE PRESET ……………..……….….……….……...…….……………………..……………...13 STEP2 : SET SEQUENCE ……………..……….…………...……………..…….………………………..…………..14 STEP3 : SET AUTO...
  • Page 5 3. DETAILED MENU SETUP ……………..……………………………………………………….…………...…………………..…..……………15 Menu ……………..……….….…………...…………..…………………………………...…...16 Enter PT(Z) Menu Via AP …………….…………...……..……………………...…….………………..…..………………..….…...18 Control Panel …..…………….…………...……..…………..…….……………………..…..…………………….….…...19 Main menu …………….…………..……..………..….…………………………..…..…………………….…...20 Main options …………….…………...……..……...………….…………………………….…..…………………….…...20 AUTO …………….…………...……..……...……………….….……………………………………...….…...21 AUTO PAN …………….…………...……..………..…...…….……………….……………………………...….…...22 PRESET …………….…………...……..…..……………….………….……………...…………….…...23 PT(Z) HOT POINT ……….…………..……...…….………………………….……………………...…………….…...25 SEQUENCE …………….…………...……..……...…….…………………..……….………………...………….…...27 CAMERA …………….…………...……..……...…….…………………..……….………………...………….…...29 SYSTEM 4. APPENDIX ………………….…………...……..……...…….………………………….………………...…………….…...31 Keypad...

  • Page 6: Product Introduction

    Product introduction CPC501&502 Features • Compatible with Intelligent Mutiplexing DVRs. • 1/3" Sony CCD. . • OSD function select. • S/N ratio more than 48dB(AGC off) • 16 Presets • RS-485 data port for surveillance application. • On screen menu.
  • Page 7 CPC503&504 Features •Compatible with Intelligent Mutiplexing DVRs. •1/3" Sony CCD. • 480 TV lines of resolution. • High sensitivity of 1.5 Lux / F2.6 • OSD function select. • 3X optical zoom lens • S/N ratio more than 48dB(AGC off) •...

  • Page 8: Description

    Description This is a color CCD pan/tilt/(zoom) camera which employs a 1/3" Sony CCD solid-state imaging device which provides extremely long life and high reliability. The camera provides 350º Pan Range, 0º ~ 90 Tilt Range. Precautions • Don’t shoot images that are extremely bright (e.g.,light sources, the sun, etc.) for long periods of time.

  • Page 9: Specifications

    Specifications Model No. CPC501 CPC502 CPC503 CPC504 Pick up Element 1/3" Sony High Resolution CCD image sensor 510(H) x492(V) Number of Pixel 768(H) x 494(V) <NTSC> / 752(H) x 582(V) <PAL> <NTSC> / 500(H) x 582(V) <PAL> Resolution 420 TV lines 480 TV lines 1.0 Vp-p, 75 Ω...
  • Page 10 Model No. CPC501 CPC502 CPC503 CPC504 On (low) / On (mid) / On (high) / Off On / Off 3X Optical Zoom 3X Optical Zoom Lens Board Lens(4,6,12mm) CCTV Lens(4,6,12mm) (4.2~12.7mm) (4.2~12.7mm) Auto Focus MANUAL/AUTO SEQ/AUTO PAN Auto Mode Camera ID...

  • Page 11: Package Content

    Package Content 1.Camera x 1 with power/video cable and single line (orange color x 1, brown color x 1). 2.User’s manual x 1. 3.Decoration cover x 3, screw x 3, screw faster x 3. PT(Z) Camera User’s manual Screws and Decoration covers...

  • Page 12: Operating And Installation

    Operating And Installation Refer to the illustrations below before installing the camera: Figure 1 Cable routing to the attic Figure 2 Cable routing over the ceiling surface 1. Cable routing to the attic (refer to figure 1) 2. Put the cable on the indentation, and cut off the thin border with nippers if necessary;...
  • Page 13 Screwed Base Screw Decoration Cover Figure 3 Note: 1. Don’t install the camera in the corner, because doing so may limit the function of the PT(Z). 2. Installation angle : ±15 degrees to a horizontal surface. 3. Don’t fasten the screw with a torque greater than 2kg-cm, else the base may deform and then hamper the movement of the PT(Z)
  • Page 14 I.M. DVR RS485-B Figure 4 RS485-A 1 Video Output Connector 2 Power Cable 3 RS485-B (orange color line) 4 RS485-A (brown color line) Figure 5 5. Connect the Video Output Connector to DVR’s Video Input. 6. Connect the Power Cable to Adaptor. 7.

  • Page 15: Connection

    Connection PAN/TILT/(ZOOM) I.M. DVR MONITOR PAN/TILT/(ZOOM) Internet...
  • Page 16 v SITUATION SIMULATE (an example for PT(Z) operation) Figure 6...

  • Page 17: Situation Simulate

    Situation simulate •If there are 3 important points you want to detect, and we need the camera to detect them like the figure 6. (AàBàCàA). •The speed moving from A to B is slow, from B to C is slow, and from C to A is fast. •When it moves to A, you want it to stay for 30 seconds.

  • Page 18: Step2 : Set Sequence

    STEP 2 : SET SEQUENCE 1. Press “ ” to move to “SEQUENCE” function. 2. Press “ENTER” to enter the “SEQUENCE” function. 3. Choose “ADD” to add the preset. 4. Move the cursor to SPEED, and press “ ” ” ” to choose the speed. 5.

  • Page 19: Step3 : Set Auto

    STEP 3 : SET AUTO 1. Press “ ” to move to “AUTO” function. 2. Press “ ” or ” ” to change the auto mode from AUTO PAN to SEQUENCE. 3. Press ENTER or MENU to confirm the selection. 4.

  • Page 20: Detailed Menu Setup

    SHARPNESS SYSTEM RESET COLOR NOTE: •CPC501—Without Mirror Function MIRROR •How to use AP to control the PT(Z) will be described below. •How to download AP is described in the user’s manual of the I.M. DVR. •How to set I.D. is described in the user’s manual of the I.M. DVR.

  • Page 21: Enter Pt(Z) Menu Via Ap

    Enter PT(Z) Menu Via AP Click here to choose channel...
  • Page 22 Select PT(Z) number Click here to enter PT(Z) mode Click here to enter PT(Z) mode MENU AUTO AUTO PAN PRESET SEQUENCE CAMERA SYSTEM Click here to enter the menu HOME...

  • Page 23: Control Panel

    Control Panel 1. preset(1-16). 2. To start the AUTO Mode. 3. ZOOM Tele/ ZOOM Wide. 4. FOCUS Near/ FOCUS Far. 5. Max zoom in/ Max zoom out. 6. PTZ 7. Enter 8. Menu(Exit), Left, Right, Up, Down. 9.TURBO...

  • Page 24: Main Menu

    Main Menu Press “MENU” button to enter the main menu. There are 7 options available in the Main Menu. MENU AUTO-----------To choose the mode “SEQUENCE” or “AUTO PAN”. AUTO AUTO PAN----Auto pan setup. AUTO PAN PRESET--------preset setup (1 to 16). PRESET SEQUENCE---Sequence setup.

  • Page 25: Main Options

    Main Options AUTO AUTO MODE AUTO MODE SEQUENCE AUTO PAN •Press “ ” or ” ” can change the auto mode to AUTO PAN or SEQUENCE. •Press MENU to confirm the selection •In the “AUTO PAN” mode, PT(Z) will catch the image automatically. •In the “SEQUENCE”...

  • Page 26: Auto Pan

    AUTO PAN AUTO PAN SPEED FAST LEFT LIMIT RIGHT LIMIT •“ ” ” ” : Move the cursor. •ENTER : Enter a submenu mode/ an option under a submenu for browsing/ Confirm the selection. •MENU : Enter the menu mode/ Confirm the change/ Exit a menu. 1.

  • Page 27: Preset

    PRESET PRESET ADD INS EDIT DEL 01 : A 02 : B •“ ” ” ” : Move the cursor. •ENTER : Enter a submenu mode/ an option under a submenu for browsing/ Confirm the selection. •MENU : Enter the menu mode/ Confirm the change/ Exit a menu. 1.

  • Page 28: Pt(Z) Hot Point

    PT(Z) HOT POINT (Control via CPD DVR) •You can control PT(Z) by mouse. Click the position you want to detect, and PT(Z) would move to where you click. •Below is the example for “PT(Z) HOT POINT”. •If you want to detect point A, you could move the mouse to point A.(figure 7) •Click the left click.
  • Page 29 •And then, if you want to detect point B. Move the mouse to point B.(figure 8) •Click the left click. •You can see the symbol “ + “. •And you will see the result below. (figure 8) (figure 9) (figure 9)

  • Page 30: Sequence

    SEQUENCE SEQUENCE Users can set up 32 sets of sequence at most. ADD INS EDIT DEL SPEED PRESET STAY 01 : FAST 01àA •“ ” ” ” ” ” ” ”: Move the cursor. 02 : FAST 02àB •ENTER : Enter a submenu mode/ Choose an option under a submenu for 03 : FAST 03àC browsing/ Confirm the selection.
  • Page 31 3. EDIT •To edit the preset you had set previously. 4. DEL •To delete the preset you had set previously. 5. SPEED •This function is to set the speed ( Fast and Slow). 6. STAY •This function is to set the staying time. ( 01s, 02s, 03s, 05s, 10s, 20s, 30s and 60s). 7.

  • Page 32: Camera

    CAMERA CAMERA •“ ” ” ” : Move the cursor. •ENTER : Enter a submenu mode/ Choose an option under a submenu BACKLIGHT for browsing/ Confirm the selection. •MENU : Enter the menu mode/ Confirm the change/ Exit the menu. BRIGHTNESS NORMAL SHARPNESS...
  • Page 33 4. SHARPNESS •There are 3 options, NORMAL, SOFT and SHARP. 5. COLOR •There are 3 options, NORMAL, LIGHT and COLORFUL. 6. MIRROR •ON/OFF 7. TITLE •Press “ ” or ” ” to set the title.

  • Page 34: System

    SYSTEM SYSTEM •“ ” ” ” : Move the cursor. •ENTER : Enter a submenu mode/ Choose an option under a submenu TITLE DISPLAY for browsing/ Confirm the selection. TITLE POSITION U—L •MENU : Enter the menu mode/ Confirm the change/ Exit a menu. PAN TILT SPEED FAST SYSTEM RESET...

  • Page 35: Title Position

    2. TITLE POSITION •Press “ ” ” ” to determine the title position, U-L (Up/Left), D-R (Down/Right), D-L (Down/Left) and U-R (Up/Right). 3. PAN TILT SPEED •Press “ ” ” ” to choose the PAN TILT MANUAL SPEED, FAST or SLOW. 4.

  • Page 36: Appendix

    vAPPENDIX Keypad Keypad USE DVR TO OPERATE PT(Z) 1.ENTER+ZOOM 8. PAUSE • UP. • PT(Z)(enter & exit). 9. ZOOM 2. MENU • MENU. • TELE DIGITAL ZOOM 3.ENTER • ENTER. • ZOOM TELE. 4.PLAY • AUTO. 5. FF • ZOOM WIDE. •...
  • Page 37 16.NUM4 12.MENU+SEARCH • PT(Z) CH4 •PRESET MENU (enter & exit). 17.ENTER+ •When enter PRESET MENU, you can change the setting value by: • LIVE QUAD. Focus Far Focus Near Increase Preset Number Decrease Preset Number 13.NUM1 • PT(Z) CH1. • PT(Z) CH1. 14.NUM2 •...

This manual is also suitable for:
