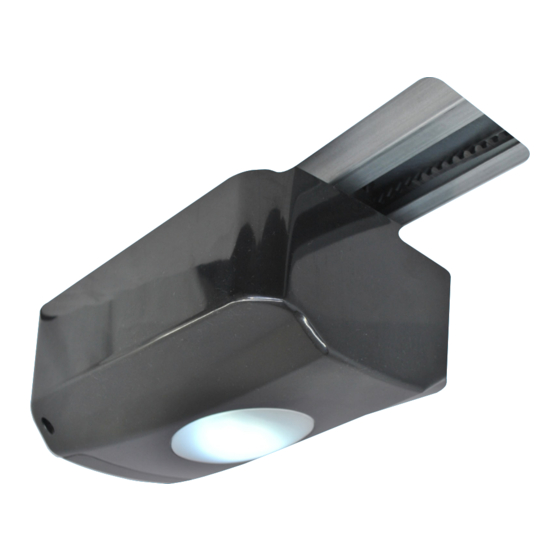

- Page 1 AUTOMATIC ENTRANCE SOLUTIONS WARNING! Please start by reading the safety instructions DITION garage door operator Installation Guide Nrg Automation Range 2015/16...
-
Page 2: Table Of Contents
Contents Contents Page Number Contents..................1 Safety Instructions.................2 Parts List ..................3 Control Board Wiring..............4 Installing the Boom & Operator...........5 Programming Motor Limits & Force Settings......6 Programming Alarm & Auto Time Closing.......7 Programming Reversing Force.............8 Programming 2000 Cycles Maintenance Alarm......9 Programming Transmitters............10 www.nrgautomation.co.uk... -
Page 3: Safety Instructions
Please start by reading the safety instructions Before you begin installing the door operator, please read thoroughly these instructions, keep the manual for future reference or pass it on to the subsequent owner of the door. The door operator has been designed for safe use in operation but safety can only be assured if the safety instructions are strictly adhered to during the installation and during use. -
Page 4: Parts List
Parts Lists Door Operator Package Boom Package Garage door opener One piece or three piece boom Two transmitters Carrier with cord release Installation manual Motor drive adapter Curved door arm Two slide over brackets (3 piece Two metal fixing bars boom only) Two U brackets Door arm fixing bracket... -
Page 5: Control Board Wiring
Aerial • LED light connections: The Nrg Automation 1 mtr light strip can be connected to the to terminals. 6 & 7. The LED will illuminate as a courtesy light and can also be turned on or off using the mode 3 function on the transmitter. -
Page 6: Installing The Boom & Operator
Installing the Boom Warning: incorrect installation could lead to sever injury. Before installing the boom and GDO ensure the door is in good working order and correctly balanced. After installation ensure the door automatically reverses when it makes contact with an object placed on the floor at a level of 50mm. -
Page 7: Programming Motor Limits & Force Settings
Programming Motor Limits & Force Remove the end programming cap with the NRG Automation label to reveal the programming panel. Programming LED’s Programming the OPEN and CLOSE limits and FORCE learning. Step 1. Open Limit: Press P button for 5 seconds - LED’s 1, 2 & 3 will illuminate, then release the P button Press + button once. -
Page 8: Programming Alarm & Auto Time Closing
Programming Auto Closing & Alarm Programming LED’s Automatic Closing (default set to OFF) Press P button for 5 seconds, LED’s 1, 2& 3 will illuminate. Press + button twice, LED 1& 2 will flash to enter programming mode. Press + or button to select auto close time in accordance with the chart below. -
Page 9: Programming Reversing Force
If a level above 2 is required we would suggest additional safety devices are fitted and that force level testing is carried out after the force is set. More information on setting the reversing force above level 2 can be obtained by contacting the Nrg Automation technical office (professional installers only) -
Page 10: Programming 2000 Cycles Maintenance Alarm
Programming 2000 Cycles Counter Alarm 2000 Cycles Maintenance Counter - Alarm Once the operator has reached 2,000 cycles, the built in alarm will sound and the courtesy light will flash. The alarm and lights will continue to flash until cancelled. This serves as a reminder to the user to carry out the annual maintenance inspection and service. -
Page 11: Programming Transmitters
Programming Transmitters Programming Transmitters: Max 40 Channels Transmitters can be programmed to work the following way: Mode 1 - Dynamic mode ( 1 button) Open/Stop/Close/Stop/Open..Mode 2 - (2 Buttons) Open / Close Mode 3 - Courtesy Light Light ON & OFF Programming: Mode 1: Dynamic Press &... - Page 12 AUTOMATIC ENTRANCE SOLUTIONS Garage Door Automation Solutions Single Piece Garage Doors Roller Garage Doors Sectional Garage Doors Radio Controls Smart Phone and GSM Control Nrg Automation Range 2015/16...
