BVSMP/LT
Issue 3 05/12/2011
ECR 2544
BVSMP / BVSMPLT
Firmware Version SMP V6.1 & SMPLT V6.1
Installation Manual
Baldwin Boxall Communications Ltd.
Wealden Industrial Estate, Farningham Road
Crowborough, East Sussex, TN6 2JR
Telephone: 01892 664422
Fax: 01892 663146
Website: www.baldwinboxall.co.uk
Email: mail@baldwinboxall.co.uk
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Baldwin Boxall BVSMP

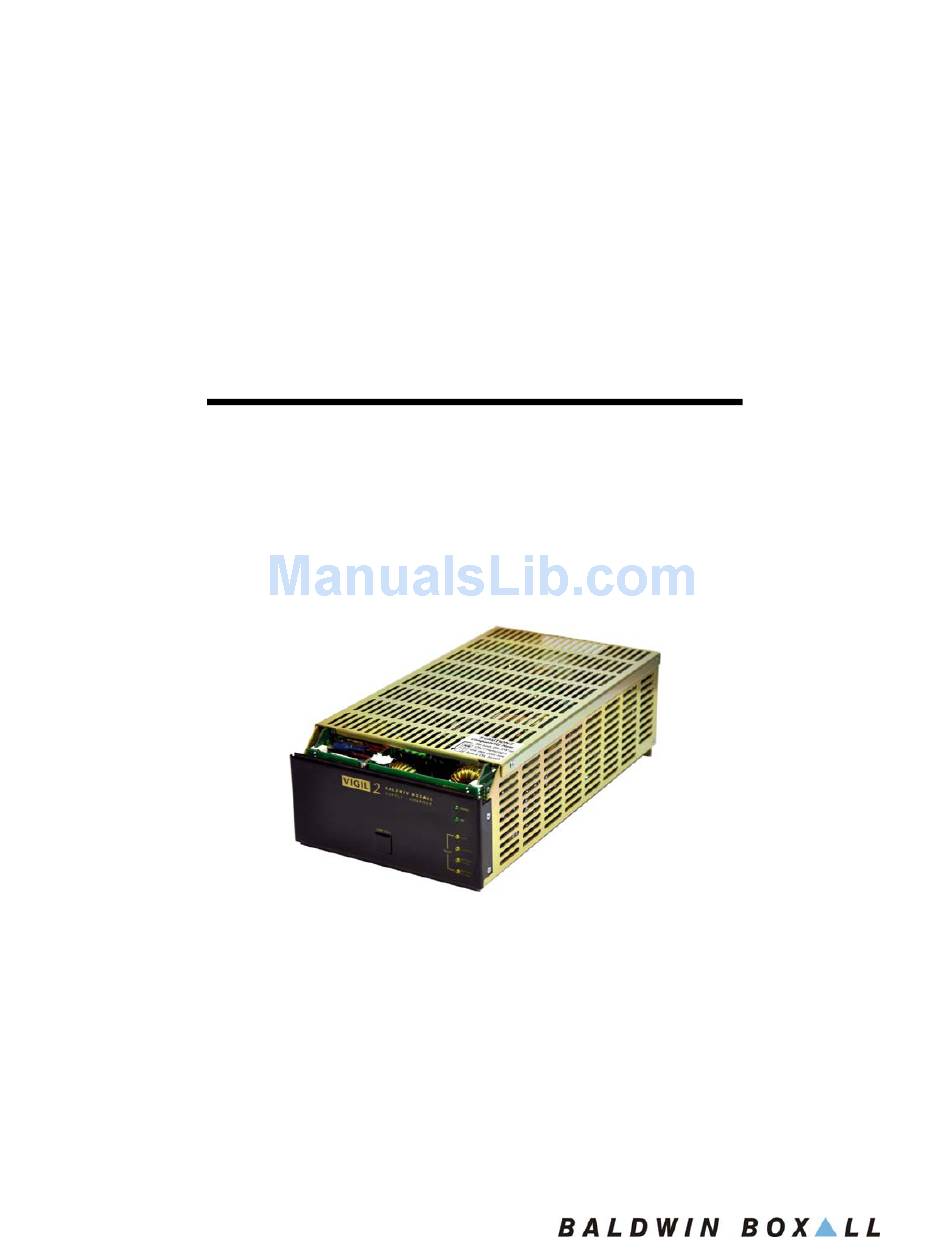

- Page 1 BVSMP/LT Issue 3 05/12/2011 ECR 2544 BVSMP / BVSMPLT Firmware Version SMP V6.1 & SMPLT V6.1 Installation Manual Baldwin Boxall Communications Ltd. Wealden Industrial Estate, Farningham Road Crowborough, East Sussex, TN6 2JR Telephone: 01892 664422 Fax: 01892 663146 Website: www.baldwinboxall.co.uk...
- Page 2 The charger incorporated is of the constant voltage type set for the recommended float charge. Should the battery be below this voltage the BVSMP will charge in a constant current mode at the rate of 3 amps which progressively reduces once the battery has achieved its nominal float level.
- Page 3 (see “Compatibility Mode” instructions below). The BVSMP has a factory preset default threshold of 0.1Ω for the overall resistance of the cables and batteries. If the BVSMP detects a reading above this threshold then a fault will be announced.
- Page 4 Battery Voltage Low fault (<21V) Lamp test for the above indicators Terminations: AC supply input: IEC 6A filtered connector 24V battery input: 3-pin screw terminated connector DC outputs & fault relay contacts: 9-pin crimp terminated connector BVSMP/LT Issue 3 ECR 2544...
-
Page 5: Front Panel View
Front Panel View BVSMP Rear Panel View RELAY SHOWN MODEL BVSMP. MADE IN ENGLAND AMP1 IN FAULT COND. www.baldwinboxall.co.uk AC FUSE 3.15A(T) AMP2 AMP1 WARNING! THIS APPARATUS MUST BE EARTHED AC FUSE 3.15A(T) 230V SYNC 50-60Hz 700VA MAX AMP2 24V BATTERY INPUT 20A MAX...
