Hunter F1 Quick Manual

The leader in hunting communication ™

Quick Guide

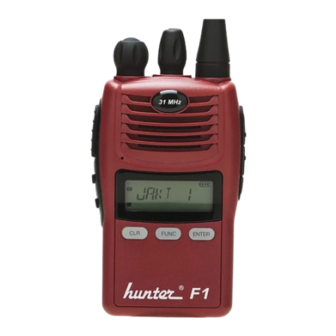

Hunter F1 31MHz
Parts Name & Function
1. Antenna – Removable flexible rubber antenna.
2. ON/OFF – Volume – Rotate clockwise for switching the radio ON
and increase the volume. Rotate counter clockwise for decreasing
the volume and switching the radio OFF.
3. Rotary selector – Rotate clockwise or counter clockwise for
selecting operating channel or function.
4. LED indicator – [Green]: the radio is receiving a signal, or
squelch is open. [Red]: the radio is transmitting.
[Red blinking]: low battery warning.
5. PTT (Push-To-Talk) – Press and hold for transmitting, speak into
the microphone (13) with normal voice. Release for receiving.
6. Squelch (Monitor) – Press shortly for opening the squelch
momentarily. Press and hold 3 seconds for opening the squelch
constantly, then press shortly for closing.
7. Keypad lock – Press and hold 2 seconds for enabling or
disabling the keypad lock. When enabled all keys except PTT (5)
and Squelch (6) are locked.
8. CLR – Returning key inside Function Mode.
9. FUNC – Function key for accessing Function Mode and selecting different radio functions. Press
and hold 1 second for accessing Function Mode, then rotate the Rotary selector (3) for selecting
different radio functions.
10. ENTER – Confirming key inside Function Mode, for saving the setting.
11. Display – Backlighted display, showing operating channel and functions. The backlight is
automatically activated for 15 seconds whenever a key is pressed, except PTT (5).
12. Accessory connector – Connectors for connecting external speaker/microphone or headset.
[MIC]: microphone 2,5mm. [SP]: speaker 3,5mm.
13. Microphone – Internal, built-in microphone.
14. Speaker – Internal, built-in speaker.
