Summary of Contents for AVIEM PRO 600VA

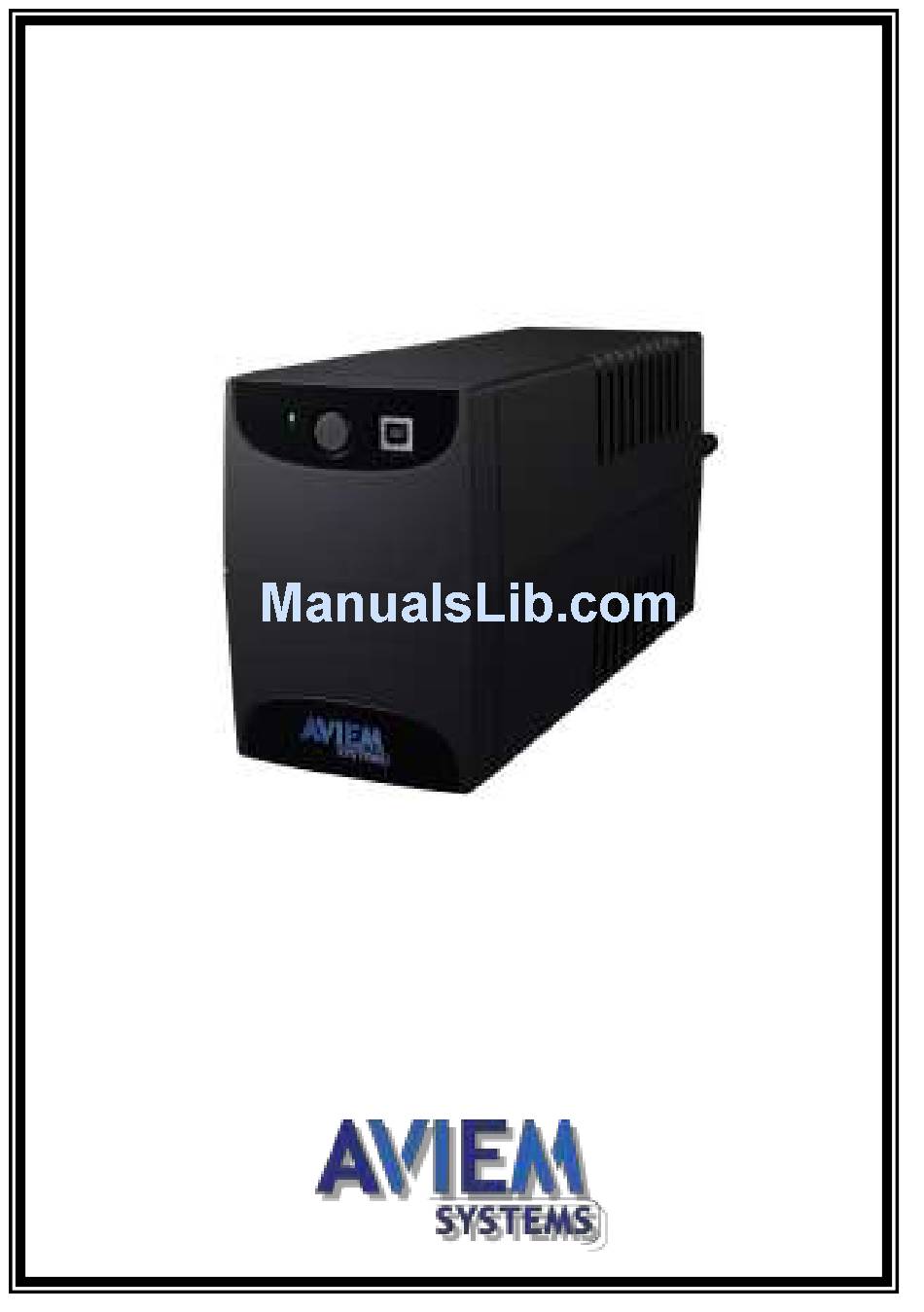

- Page 1 Aviem Pro User’s Manual AVIEM PRO 600VA/800VA Uninterruptible Power System...
-
Page 2: Safety Caution
Safety – CAUTION This UPS utilizes voltages that may be hazardous. Do not attempt to disassemble the unit. The unit contains no user serviceable parts. Only factory service personnel may perform repairs. Internal battery voltage is 12Vdc. sealed, lead-acid, 6 cells battery. ... - Page 3 AVR to stabilize input voltage range. It is also built-in with DC start function. This function enables the UPS to be started up without AC power supplied. Although it’s a small UPS, The main features of Aviem Pro UPS are listed below: Microprocessor control guarantees high reliability.
-
Page 4: Troubleshooting
TROUBLE SHOOTING Symptom Possible Cause Remedy No LED display on 1. Battery weak. 1. Charge battery up to 8 hours. the front panel. 2. Battery defect. 2. Replace with the same type of battery. 3. Power switch is not pressed. 3. - Page 5 Back Panel 1. AC input 2. Output receptacles 3. RJ11 communication 1. Inspection Remove the UPS from its packaging and inspect it for damage that may have occurred during shipping. If any damage is discovered, repack the unit and return it to the place of purchase. 2.
- Page 6 3. Placement Install the UPS unit in any protected environment that provides adequate airflow around the unit, and is free from excessive dust, corrosive fumes and conductive contaminants. Do not operate your UPS in an environment where the ambient temperature or humidity is high. On the other hand, place the UPS away from the monitor at least 20cm to avoid interference.
- Page 7 To turn on the UPS unit, press the power switch lightly. To turn off the UPS unit, press the power switch again. 6. DC Start All Aviem Pro Series are equipped with DC Start. To start the UPS when AC utility power is not available, simply press the power switch. 7. Green Power Function All Aviem Pro UPS is equipped with Green Power Function.
-
Page 8: Specification
SPECIFICATION AVIEM PRO 600VA AVIEM PRO 800VA MODEL CAPACITY VA/W 600VA/360W 800VA/480W Voltage 220VAC INPUT Voltage Range 162-268VAC Voltage 220/230/240VAC Voltage Regulation +/-10% (Batt. Mode) Frequency 50Hz or 60Hz OUTPUT Frequency Regulation +/-1 Hz (Batt. Mode) Output Waveform Modified Sine wave...
