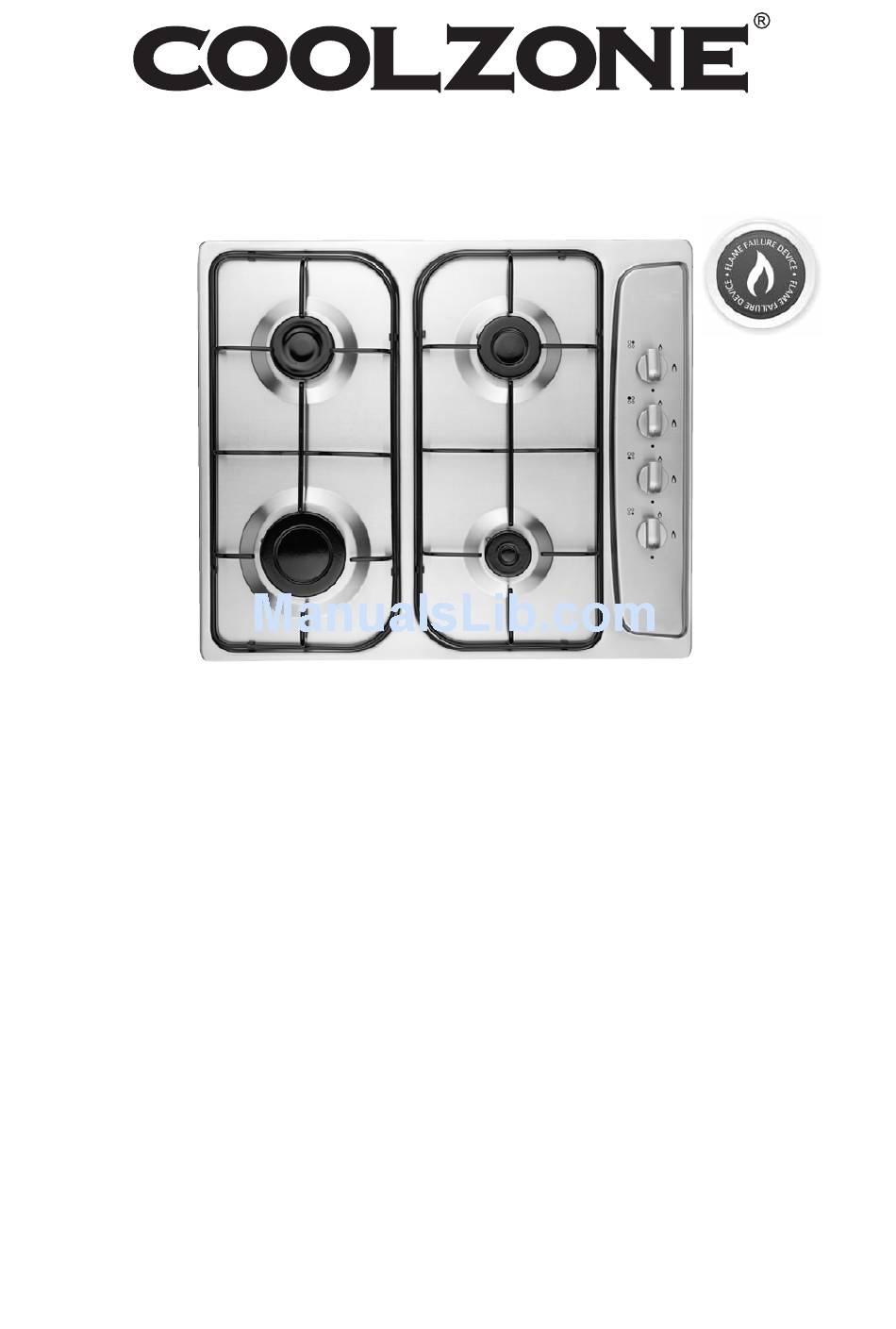

- Page 1 Built-in Gas Hob CZ55573 INSTALLATION AND OPERATING INSTRUCTIONS The product may differ from the one illustrated but the installation and operation procedure remains the same...
-
Page 2: Table Of Contents
Contents Introduction Unpacking Before installation Location Electricity supply Cut-out Fitting the hob Gas supply connection Electrical connection Preparation Safety notes Using the hob Pan types Care of burners Cleaning the hob Mains lead replacement Plug replacement Troubleshooting guide Back page Safe hob disposal Back page Customer Helpline... -
Page 3: Unpacking
Introduction Thank you for choosing this quality appliance. It has been designed to provide trouble-free service, provided it is installed and maintained correctly. This hob is for domestic use only. Please read these instructions carefully before installing or using your appliance. It is advisable to keep your purchase and installation receipts with these instructions in a safe place for future reference. -
Page 4: Location
Location Position of the hob The hob must be installed into a work surface, fitted with an opening cut into the surface, so that the top plate sits flush with the surface. It is best positioned directly above a 600mm wide fitted kitchen cabinet. Avoid installing the appliance next to a fridge, freezer or boiler. -
Page 5: Electricity Supply
Electricity supply Once a satisfactory location has been established, the electrical supply to the appliance must be arranged beneath the work surface. A switched 3-pin plug socket with an earth contact, if one does not already exist, should be installed beneath the work surface and near to the hob location, where it is easily accessible. -
Page 6: Fitting The Hob
Fitting the hob 1. Place the hob upside down on an adjoining surface. 2. Fit the clips onto the hob by sliding the notched end into the slot and loosely screwing the screw into the screw-hole (Figure 6). Turn the clips round so that they are in line with the hob (Figure 7). 3. -
Page 7: Gas Supply Connection
Gas supply connection PLEASE NOTE: Connection of the gas supply, adjustment, cleaning and tap servicing should ONLY be carried out by a CORGI registered gas fitter or qualified service engineer, in accordance with the latest regulations. There are two installation options: Connection to natural gas supply The hob comes ready for connection to a piped supply of natural gas, and should only be connected by a CORGI registered gas fitter or qualified service personnel, in accordance with the latest regulations. -
Page 8: Safety Notes
Please read safety notes before using the hob • Never leave children unsupervised where the hob • Make sure you understand what the controls do before using the hob. is installed as the appliance will get hot during and after use. •... -
Page 9: Using The Hob
Using the hob Before using your hob for the first time: Read the operating and safety instructions thoroughly. If you have not already done so, follow the steps in the “Preparation” section on page 7 so that the cooker is ready for use. Before switching on a burner, make sure that the selector knob you are using corresponds to the burner you wish to switch on (Figure 9). -
Page 10: Pan Types
Pan types For best results and good use of energy: • Use good quality cooking pans with thick flat • Never use recessed or ridged base pans. This bases. This gives the most efficient energy wastes energy and gives a longer cooking time transfer from the hob burners. -
Page 11: Mains Lead Replacement
Mains lead replacement Do not attempt to repair or replace the mains connecting cable yourself, consult a qualified electrician. Plug replacement This product is supplied with a fitted plug which contains GREEN/ YELLOW a 3A fuse. If you are simply replacing the fuse, you must (EARTH) use a 3A fuse which has been approved by ASTA to BS1362. -
Page 12: Troubleshooting Guide
Troubleshooting guide If you are experiencing problems with your hob, check the following problems and solutions below before contacting the Helpline. Solution Problem Check that: Ignition does not work (on all burners). The electric plug is in the mains socket and is switched to ON.
