Summary of Contents for Apro AP-C4000SR

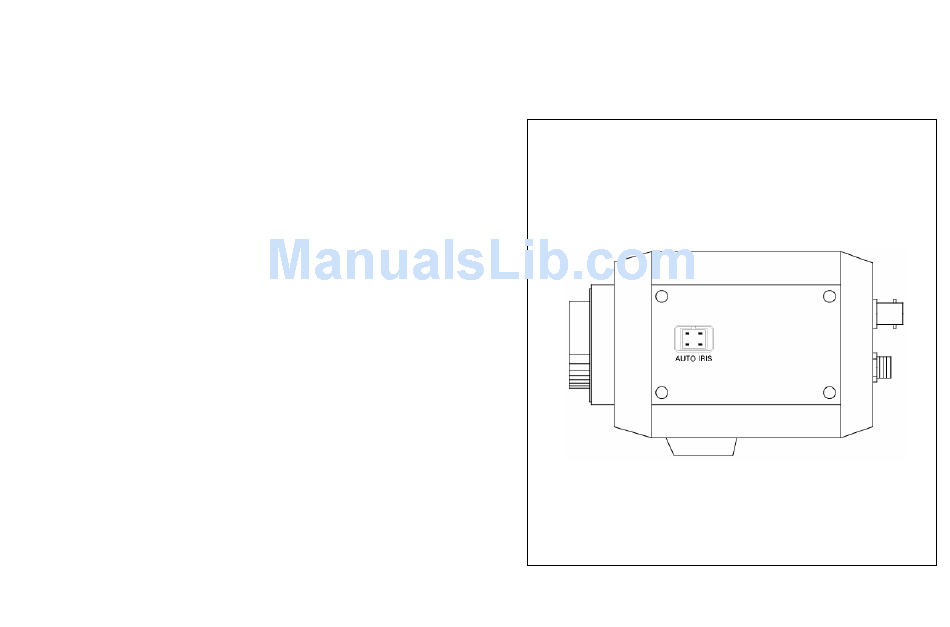

Page 1 AP-C4000SR...
Page 3: Table Of Contents
Contents Feature Operating Your Camera ■SET UP ■Setting Up LENS *SHUTTER SPEED CONTROL *BACK LIGHT *WHITE BALANCE *DNR *SENSE UP *CAMERA ID *COLOR/SYNC *MOTION DETECTION *PRIVACY Precautions *MIRROR *SHARPNESS *RESET/RETURN Troubleshooting Dimension & Specifications...
Page 4: Feature
Features ♣ SUPER BLC ♣ Adoptable When the image is in front of strong background One power connection self-configures to either 12V DC lighting, your camera allows you to get the clear or 24V AC. AC line lock standards with all cameras in 24V image.
Page 5: Precautions
Precautions * Do not install the camera in extreme temperature * Do not touch the front lens of the camera. conditions. _ It is one of the most important parts of the camera. Be careful not to be stained by fingerprint. - Only use the camera under conditions where temperatures are between -10℃...
Page 6: Operating Your Camera
Operating your camera ◈Function ◈Setting up the menu SETUP MENU LENS option Use the 5 SETUP MENU buttons on back of the camera. ●DC ●MANUAL UP button SHUTTER ●OFF ●F/L ●MANUAL LEFT button SET button WHITE BALANCE ●ATW ●AWC MANUAL● RIGHT button BACKLIGHT ●W-ATW...
Page 7: Set Up
Operating your camera - Operating your camera SETUP LENS SET UP 1. Press the SET button to access the SETUP mode. 1)Setting up the LENS ●SETUP menu is displayed on the monitor screen. Select the lens pressing the RIGHT button. ①On the SETUP menu screen, move the arrow indicator to the lens using the UP or DOWN button.
Page 8 Operating your camera – SUTTER SPEED CONTROL① 2)Shutter status and speed control You can control brightness of the screen by the shutter speed. ①Press the SET button to display the setup menu and move the arrow indicator to ‘SHUTTER’ using the UP or DOWN button. ②Set ‘SHUTTER’...
Page 9: Shutter Speed Control
Operating your camera – SUTTER SPEED CONTROL ② ▶MANUAL : When setting shutter speed manually. (Only for ▶ESC : You can control the BRIGHTNESS. LENS mode) You can select speed from ‘1/60’ to ‘1/200,000’sec ③When completed, press ‘SET’ Notes ●Don’t make the camera exposed fluorescent lamp directly not to get unstable image in the internal synchronization modes.
Page 10: Backlight
Operating your camera - BACKLIGHT 3) BACKLIGHT 4) AUTO GAIN CONTROL(AGC) SR chip built-in provides intelligent light level control to overcome AGC is to get bright picture. Higher GAIN level, getting brighter screen. the severe Backlight condition. But you can get noise increase. ①Press the SET button to display the SETUP menu and move the arrow ①Press the SET button to display the SETUP menu and move the arrow indicator to ‘BACKLIGHT’...
Page 11: White Balance
Operating your camera - WHITE BALANCE 5)WHITE BALANCE (WHITE BAL.) ▶MANUAL : To fine adjust, select the Manual mode. You can increase When needs color control on the screen, use ‘WHITE BALANCE’ function. or decrease the red or blue factor while monitoring the difference on the ①Press the SET button to display the SETUP menu and move the arrow screen.
Page 12: Dnr
Operating your camera - SENSE Operating your camera - 6) Digital Noise Reduction(DNR) 7) SENS-UP DNR is to reduce the noise on the screen. You can always get the clear image with this function under night ①Press the SET button to display the SETUP menu and move the or lowlighting level.
Page 13: Camera Id
Operating your camera - Operating your camera - CAMERA ID② CAMERA ID① 8)SPECIAL ③Press SET button to access the SETUP mode. ①Press the SET button to display the SETUP menu and move the ④You can enter up to 15 characters. arrow indicator to ‘SPECIAL’...
Page 14: Color/Sync
Operating your camera – COLOR/SYNC (2)COLOR : You can choose color and B/W mode electrnically.(OPTION) (3)SYNC : Two SYNCHRONIZATION modes are available INTERNAL and ①Press the SET button to display the setup menu and move the arrow EXTERNAL LINE-LOCK. In LINE-LOCK mode, it synchronous generator. indicator to ‘COLOR’...
Page 15: Motion Detection
Operating your camera – MOTION DETECTION (4)Whenever your camera detects motion of object displaying ‘MOTION DETECTED’ with the number counted up on the screen. ①Press the SET button to display the setup menu and move the arrow indicator to ‘MOTION DET’ using the UP and DOWN button. ②SET ‘MOTION DET’...
Page 16: Privacy
Operating your camera - PRIVACY (5)PRIVACY : To mask area which you want to mask. ①Press the SET button to display the setup menu and move the arrow indicator to ‘PRIVACY’ using the UP and DOWN button. ②SET ‘PRIVACY’ to the desired mode using the LEFT or RIGHT button. ▶OFF : Deactivation ▶ON : PRIVACY mode activated -Press the SET button.
Page 17: Mirror
Operating your camera - Operating your camera - SHARPNESS MIRROR (6)MIRROR (7)SHARPNESS ①Press the SET button to display the setup menu and move the arrow ①Press the SET button to display the setup menu and move the arrow indicator to ‘MIRROR’ using the UP and DOWN button. indicator to ‘SHARPNESS’...
Page 18: Reset/Return
Operating your camera - RESET/RETURN (8)RESET : To reset your camera to FACTORY DEFAULT SETTING. (9)RETURN : Save the setting of SPECIAL function, and then move to SET UP menu.
Page 19: Troubleshooting
Troubleshooting...
Page 20: Dimension & Specifications
Dimension & Specifications ITEM AP-C4000SR Power Source DC 12V / AC 24V (Option) Power Consumption 280mA(DC) / 3.8W(AC) 1/3”, SONY SUPER HAD CCD, 410,000 pixels I mage Sensor 811(H) x 508(V),1/3”CCD Total Pixels 768(H) x 494(V),1/3”CCD Effective Pixels LENS type...
