erc Shark-100N Instruction Manual

Currency reader counter

Hide thumbs

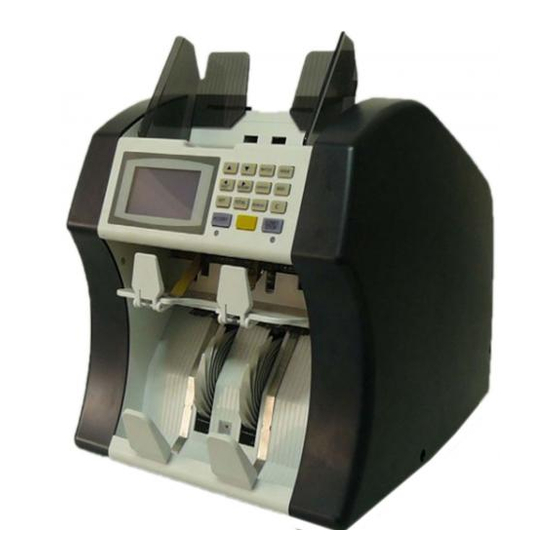

Currency Reader Counter

Table of Contents

Need help?

Do you have a question about the Shark-100N and is the answer not in the manual?

Questions and answers

Summary of Contents for erc Shark-100N

Page 1 Currency Reader Counter...
Page 2 content 、USER MENU REJECT CURRENCY SELECT DEFAULT DUAL USAGE AUTO START REPEAT START BUZZER OFF LCD LIGHT MODE KEY SWITCH 1-10 SPEED 1-11 REJECT FULL 1-12 REJECT CHECK 1-13 CNT MODE 1-14 CNT CF CHECK 1-15 ASSIGN OPERATOR 1-16 CURRENCY CF 1-17 MANUAL INPUT 1-18...

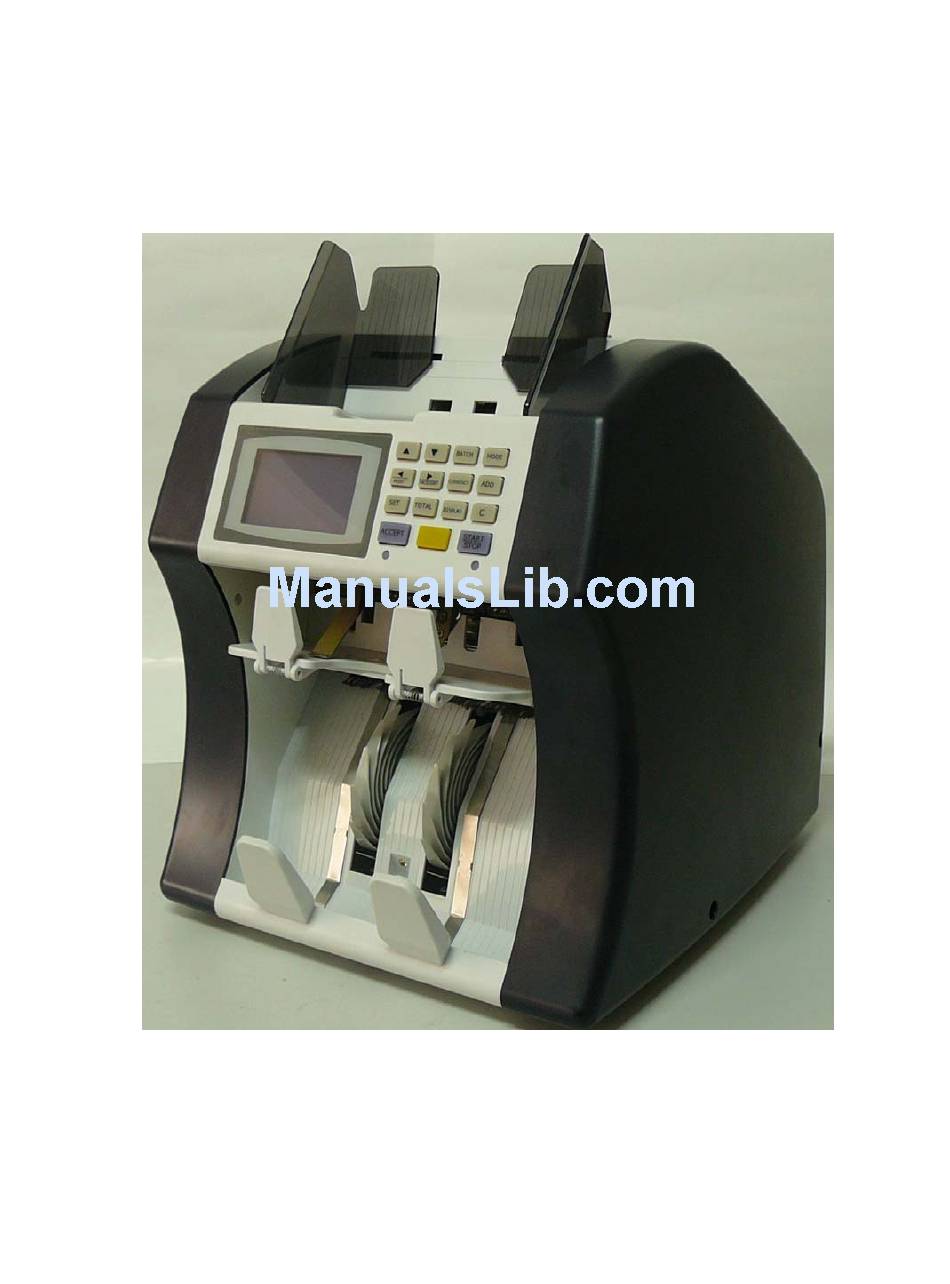

Page 3 INTRODUCTION Introduction Thank you for purchasing our products. The instruction manual contains the operating procedure precautions for using machine, please read this manual in detail before use Auxiliary Hopper Plate Hopper Guide plates for feeding Set notes in this the notes to the note compartment feeding mechanism.
Page 4 Precautions for Setting Notes Operation Keys: Used to move the next column ,change the value and menu selection at the user setup or used to change the BATCH value,menu selection at theuser setup,and move between the setup menu. Used to select BATCH quantity in [BATCH Value]...
Page 5 Used select from MDC、SDC and CNT Mode. When a printer is connected,the unit printstheconfirmend data and grand total value by pressing this key. Used to select Face/Direction arrangement Used to select Currency Used to Add the quantity Used to display the grand total Used change the screen between normal and detail screen Used to clear error or counting data are cleared to 0 Used to confirm the counting value and setup changes...
Page 6 1、Enable/Disable Reject LED on/off Press Accept key to confirm 2、 Currency can be selected/de-selected through Left Arrow or Right Arrow button. Press Accept key to confirm 3、Reset to factory default, Press Accept key to confirm 4、Enable two operators’ sharing 5、Enable/disable Auto or Manual start 6、At Batch count, enable/disable Auto/Manual repeat start...
Page 7 7-12 7、Buzzer On/Off, Press Accept key to confirm 8、LCD backlight On/Off ENABLE – After 5 minutes, enter into sleep mode to save engergy，Press Accept key to confirm 9、Mode button Lock/Unlock, Press Accept key to confirm...
Page 8 10、Counting Speed Selection, Press Accept key to confirm 11、Select notes to be accommodated in Reject Pocket, Press Accept key to confirm 12、When enable this function, if there is a note inside of Reject Pocket, the machine can’t be operated till empty Reject Pocket, Press Accept key to confirm 13-18...
Page 9 13、PIECE COUNT MODE enable/disable, Press Accept key to confirm 14、Counterfeit detection On/Off at CNT mode, Press Accept key to confirm 15、Assign Left and Right Operators, Press Accept key to confirm 16、Counterfeit detection sensitivity level setting for current currency count There are the following 2 settings: 1) Switch On/Off Detections: DD/DF/UV/MG/MT/IR...
Page 10 Press ACCEPT button, Press ACCEPT button, The above screen shows the following detections’ status: 0 - On 1 - Off Apply to all denominations: 1. DD: Length and Width detection 2. DF: Double notes detection 3. UV: Ultra violet detection 4.
Page 11 Press button to choose denomination Press ACCEPT button, Sensitivity Level: 0 to 9, 0 – off, 1 – less sensitive, 9 – most sensitive Finally, press ACCEPT button to confirm change 17、Manual Input press ACCEPT button to confirm, Press Accept key to confirm 18、RS232 Left Port Mode: Off/PC, Press Accept key to confirm...
Page 12 19-24 19、RS232 Right Port Mode: Off/Printer, Press Accept key to confirm 20、RS232 Left Port Baud Rate:9600/19200/38400/115200 Print: Data bits:8, Stop bits:1, Parity: none Data bits:7, Stop bits:1, Parity: none 21、RS232 Right Port Baud Rate: 9600/19200/38400/115200 Print Data bits:8, Stop bits:1, Parity: none Data bits:7, Stop bits:1, Parity: none...
Page 13 22、Switch CIS On/Off at CNT mode, Press Accept key to confirm 23、Select digit mark for display and print, Press Accept key to confirm 24、Switch external display On/Off, Press Accept key to confirm 25-30 Reserve 25、Set date and time: plus/minus, move cursor, Press Accept key to confirm...
Page 14 26、 When Batch = 0, counting stops when coutning figure reaches stackker full figure set by this item. 27、ADD mode (SDC) AUTO ZERO At SDC mode, ADD function is On, when the following counting denomination is different to previous counting denomination, the counting figure showed on the screen is reset to Zero MANUAL ZERO At SDC mode, ADD function is On, when the following counting...
Page 15 29、PRINTER CONTROL MODE: Manual: Press PRINT button to print AUTO 1: Print stack totals from every good bundle whenever the stacker is emptied. AUTO 2: Print bundle totals from every good bundle whenever the stacker and feed hopper are emptied. (Default) REPEAT: 2 –...
Page 16 MG1: Reject due to MT abnormal. Reject due to change color ink abnormal. DOUBLE: Reject due to double feed. CHAIN: Reject due to chain feed. Please Adjust the knob SKEW: Reject due to skew feed. TYPE2: Reject when reaching Batch Number RejDeno: Reject Denomination JAM:PS1...
