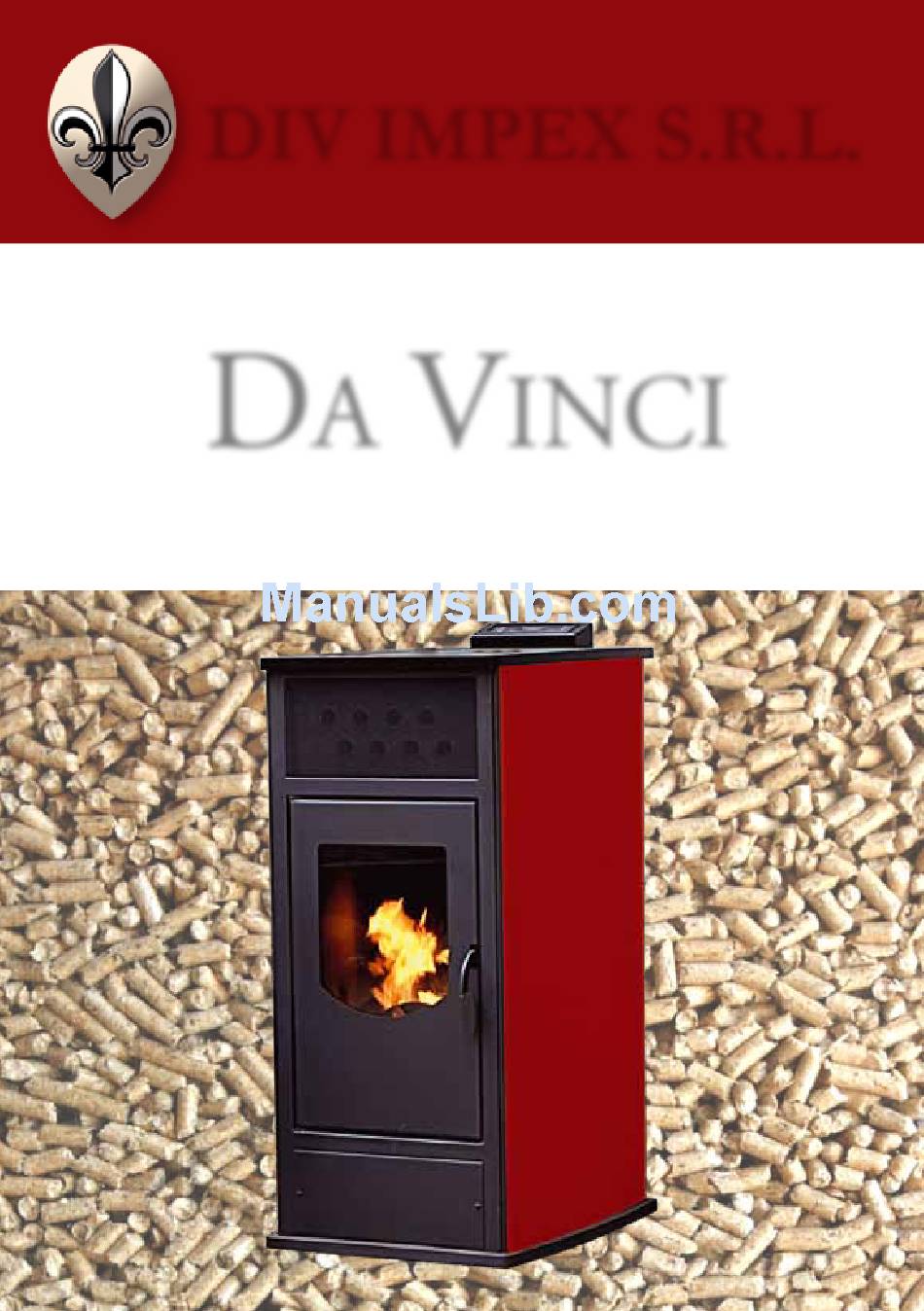

DIV IMPEX S.R.L.
PELLET STOVE
D
V
A
INCI
USER MANUAL
AND TECHNICAL PASSPORT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DA VINCI DV 140 W1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Div Impex DA VINCI DV 140 W1

  • Page 1 DIV IMPEX S.R.L. PELLET STOVE INCI USER MANUAL AND TECHNICAL PASSPORT...
  • Page 3 PELLET STOVE „Da Vinci” DV 140 W1 DV 220 W1 DV 180 W1 USER MANUAL AND TECHNICAL PASSPORT Dear Customers, We thank you for having chosen one of our products, the fruit of technological experience and of continual research for a superior quality product in terms of safety, dependability, and service.
  • Page 4 Check the precise flatness of the pavement where the product will be installed. The wall where the product will be placed must not be constructed in wood, or in any case, made of an inflammable material, and in addition it is necessary to maintain a safety distance.
  • Page 5 Keep/store the pellets in a cool dry place. The pellet stove must only be operated in living environments. This stove, being controlled by an electronic board, permits a completely automatic and controlled combustion; the digital can in fact, regulates the lighting phase,5 power levels and the shut down stage, guaranteeing the safe operation of the stove.

  • Page 6: Important Indications

    IMPORTANT INDICATIONS Function keys 1. Raising the temperature 1 This key allows the temperature to be raised from minimum of 7 C to a maximum value of 40 C. 2. Lowering the temperature 2 This key allows the temperature to be lowered from a maximum of 40 C to a minimum value of 7 C.

  • Page 7: Remote Control Description

    7. Timed thermostat led Indicates that the weekly and/or daily programming is activated. 8. Stove operating led This is lit when the stove is operating. 9-10.Upper/lower display The various operation modes of the stove are visualized on the display as well as the temperature and the working power set by the user.

  • Page 8: First Lighting Of The Stove

    2. Lowering the temperature: Pressing the button decreases the temperature from a maximum value of 40 C to a minimum value of 7 C . 3. Increasing power Pressing the button increases the power from a minimum value of 1 to a maximum value of 5.
  • Page 9 FIRST LIGHTING OF THE STOVE Lighting the stove Fill the container ¾ full with the pellets recommended by the manufacturer. The upper display will read “ OFF” and the lower display will show the current time. Press the button 4 for 2 seconds. After a few moments the smoke extractor and the lighting resistor will start and the display will read “ACC FAN”.

  • Page 10: Shutting Down The Stove

    Once the appropriate temperature has been reached the display will read “ Fire ON ” : this means that the stove has begun the last phase in lighting at the end of which the stove will be completely operational. After several minutes of ventilation the upper display will read “ON 1-2-3-4-5” according to the power that has been programmed while the lower display will show the environmental temperature.

  • Page 11: Display Information

    said value will be shown on the lower display. ATTENTION! The stove will function during the hours of ON programming at the same temperature and the power settings as when it was last shut down. DISPLAY INFORMATION “OFF” – “OFF”: the stove is off or it is in a shutting down phase. Es the current time is 2:30 pm.

  • Page 12: Cleaning And Maintenance

    Whenever the current fails (even for a few seconds) the stove shuts down and as provided for by the safety normative in force the stove will not automatically re-ignite. In this case the display will read “FIRE COOL”. By pressing the button 4 the stove will restart will the previously set parameters.
  • Page 13 WARNING! The use of aggressive detergents or thinners can damage the surfaces of the stove. Before using any detergent it is advisable to try it on a small section out of sight or contact the Authorized Assistance Center for information regarding the product.
  • Page 14 This operation must be performed more or less frequently depending on the quality of the pellets used. Cleaning the glass The glass is a self cleaning type therefore while the stove is working a veil of air is blown across its surface to remove ash and dirt; nevertheless over a period of several hours a grayish patina tends to form which should be cleaned when the stove is next shut down.
  • Page 15 At the end of the season when the stove will not be used for some time . It is advisable to perform a thorough and general cleaning: Remove all the pellets from the container and the screw feeder. Carefully clean the brazier the brazier support the combustion chamber and the ash box.

This manual is also suitable for:

Da vinci dv 220 w1Da vinci dv 180 w1
