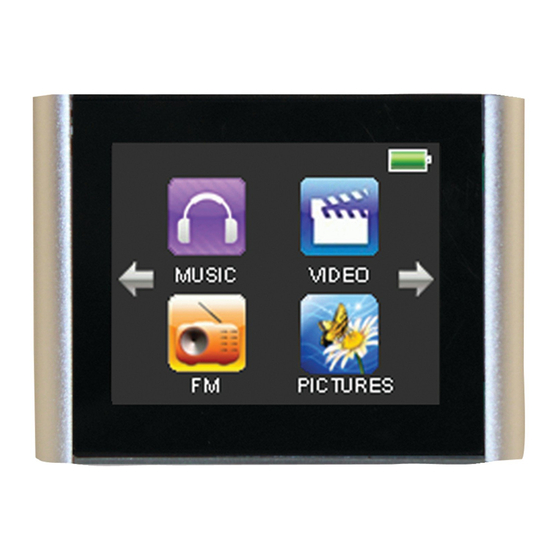

Eclipse T180
Instruction Manual
Congratulations on purchasing your Eclipse
Personal Media Player! To get the most out of your purchase,
please take the time to carefully read through this manual.
Foreword
If any problems occur while using your Eclipse, please feel free to contact Mach
Speed technical support at 580-272-0035, or send an email to
mssupport@machspeed.com.
Thank you for your support and cooperation!
Mach Speed Technologies bears no responsibility for any damage or loss of
personal data due to misuse of software and/or hardware, damage to the player
caused by human factors, replacement of battery, or other unforeseen
circumstances. To prevent loss of your data, please backup your data regularly.
Information in the manual is subject to change without notice and is subject to
copyright protection. Copying or otherwise reproducing this material without prior
written consent is prohibited.
Due to Firmware changes, some of the pictures and functions described in this
manual may not be the same as those included with your player.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Eclipse T180
Summary of Contents for Eclipse T180
- Page 1 Personal Media Player! To get the most out of your purchase, please take the time to carefully read through this manual. Foreword If any problems occur while using your Eclipse, please feel free to contact Mach Speed technical support at 580-272-0035, or send an email to mssupport@machspeed.com.
- Page 2 Note: ● The playback times listed refer to the maximum playback times possible, using the best power savings. The actual playback time may differ as adjustments to screen brightness; power savings modes, volume, etc. are made. ● As there are many brands of Micro SD cards in market, using different quality and speed standards.
- Page 3 Caution • Do not use the player in exceptionally cold, hot, dusty, damp or dry environments. • Do not drop, strike, or throw your player. Physical damage to your player will void ALL warranties. • Please charge your battery when: o Battery power icon shows an empty icon;...
- Page 4 Powering on To power the player on, press and hold the power button for 5 seconds until the eclipse logo displays on the screen. Powering off To power the player off, press and hold the power button for 5 seconds until the screen displays Bye-Bye and then goes dark.
- Page 5 Caution: Please ensure that the power is off when you connect or disconnect your SD card, or damage may occur to the player or your card. Loading files Using Windows Media Player (Note: You must use Windows Media Player 10 or later to use this feature.) (Note: This player does not support DRM encrypted audio or video files, such as those downloaded from the Windows Media Player “Overdrive”...
- Page 6 2. Once you have named your MP3 player, select “Finish”, and your Windows Media Player will open to the Sync tab. Drag your music to the sync list (on the right of the screen) from the list on the left. Once you have selected the music you wish to add to the player, press “Sync”, or “Start Sync.”...
- Page 7 Windows Media player will load the songs on to your player. Once all the songs you have added are synced to the unit, and Windows Media Player says that is safe to disconnect your MP3 player, disconnect the device.
- Page 8 COPY AND PASTE Note- This alternate method is used to load videos, pictures, and ebook files as well as audio files. Connect the MP3 player to a working USB port. When the unit is connected to your computer, it will create a gray and green icon in the system tray (lower right hand corner of your desktop).
- Page 9 Locate the music stored on your computer. Generally this is stored in the “My Music” folder of your computer. NOTE: If you are unable to locate the music on your computer, click on start, search, files and folders, then search for “*.MP3, *.WMA”.
- Page 10 Once you have located the song files, you can right click on the song itself, and select “Copy”. Open the removable disk drive, right click on in the empty space, and select “Paste.” This will transfer the song on to your player. Repeat step 7 for as many songs as you want to copy on to the unit.
- Page 11 The Main Menu Your main menu consists of two screens. To slide back and forth between the two screens, touch the Arrow icon with your finger/stylus, and slide it to the left. When on your second screen, you will touch the arrow icon, and slide your finger/stylus to the right.
- Page 12 Icon Explanation (top to Bottom) Battery Icon- This icon will display your battery charge. The more full this icon is, the more charge is left on the battery. Equalizer- This icon will display your equalizer mode. Repeat Mode- This icon will display your Repeat mode. In order, these are: Normal, Repeat One, Folder, Repeat Folder, Repeat All, and Random All.
- Page 13 Bitrate- This Number will display the bitrate of the current file (in kbps) Song counter – This icon displays how many files are in the current playmode, and which file you are on. For example, if this icon reads as 002/006, you are on the second of 6 files ready to play. Menu Icon- Tapping this icon will take you into your Music submenu, or Music selection menu.
- Page 14 playing screen, press again to select B point, then player will start to replay the section selected, as the number of times and gap already set. Press M button will exit A-B replay function. Music Selection Submenu The Music Selection Submenu allows you to browse through the folders saved on your device to select specific folders or files to play.
- Page 15 Please note that the Video Submenu is the only submenu for video mode. Selecting Delete File or Delete All will delete only the video files, not folders, audio files, pictures, etc. Photo Mode Photo mode allows you to view photos and pictures you have loaded to the device.
- Page 16 When you first enter Record mode, you will have the option to begin recording, or play back previous recordings. Tech Note- The build in microphone on this device is designed to record audio from 1-5 feet away. Setting the device down to record a lecture across a room will not work well.
- Page 17 Radio Your Eclipse comes equipped with an FM tuner, which allows you to tune in to your local radio stations. Tech Note- Please make sure that you connect your headphones before entering Radio mode, as they will act as an antenna.
- Page 18 Your radio playback screen again looks similar to the music playback screen. The station you are tuned into is displayed in the middle of the screen, and your radio begins playing automatically. The icon in the middle of the screen has no function in radio mode, while tapping the right or left arrow icons on the...
- Page 19 Auto Search- This will begin scanning through your stations, saving any with a strong enough signal as a preset. Please note that this WILL override any presets you have saved. Normal Band – This is your standard FM band in the US. Stations range from 87 to 108.
- Page 20 Firmware version- This will display information on the firmware of the device. Video Conversion If your video files will not play on your Eclipse T180 player, you can convert them using the conversion tool which is included with the device. To do so, you will need to first install the software.
- Page 21 Once the conversion tool is open, the first step in actually converting and loading the file is to select the file you wish to convert. Locate the “Input File” line towards the top of the window, and select the “Add file” button and use the file selection window to select the file you want to convert and load.
- Page 22 Limited Manufacturer’s Warranty 1. MACH SPEED products carry a one year from date of purchase warranty. This warranty is nontransferable. 2. Mach-Speed Technologies warrants to the original registered end-user purchaser that Mach Speed products will be free from defects in materials and workmanship for one year from the date of new purchase.
- Page 23 If at any point, you have questions about your player or experience an issue with your player, please feel free to contact our technicians at mssupport@machspeed.com or by phone at 580- 272- 0035. SZM-P4061 – T180 – MAN – V1.0.1 - 1...
