Vertex Standard MH-67A8J Service Manual

S
TANDARD
MH-67
Service Manual
©2009 VERTEX STANDARD CO., LTD.
MIC UNIT
RA1028400
FRONT CASE
RA1049500
MIC HOLDER RUBBER
M
ICROPHONE
A8J
EAE60X90A
RA0818400
PTT KNOB
TERMINAL ( B6 M4 )
RA0818700 ( 2 pcs )
WEIGHT
M3290029 (Lot. 1 ~ 22)
M3290045 (Lot. 23 ~)
MIC ELEMENT
VERTEX STANDARD CO., LTD.
4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan
VERTEX STANDARD
US Headquarters
10900 Walker Street, Cypress, CA 90630, U.S.A.
YAESU UK LTD.
Unit 12, Sun Valley Business Park, Winnall Close
Winchester, Hampshire, SO23 0LB, U.K.
VERTEX STANDARD HK LTD.
Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road,
Kwun Tong, Kowloon, Hong Kong
VERTEX STANDARD ( AUSTRALIA ) PTY., LTD.
Normanby Business Park, Unit 14/45 Normanby Road
Notting Hill 3168, Victoria, Australia

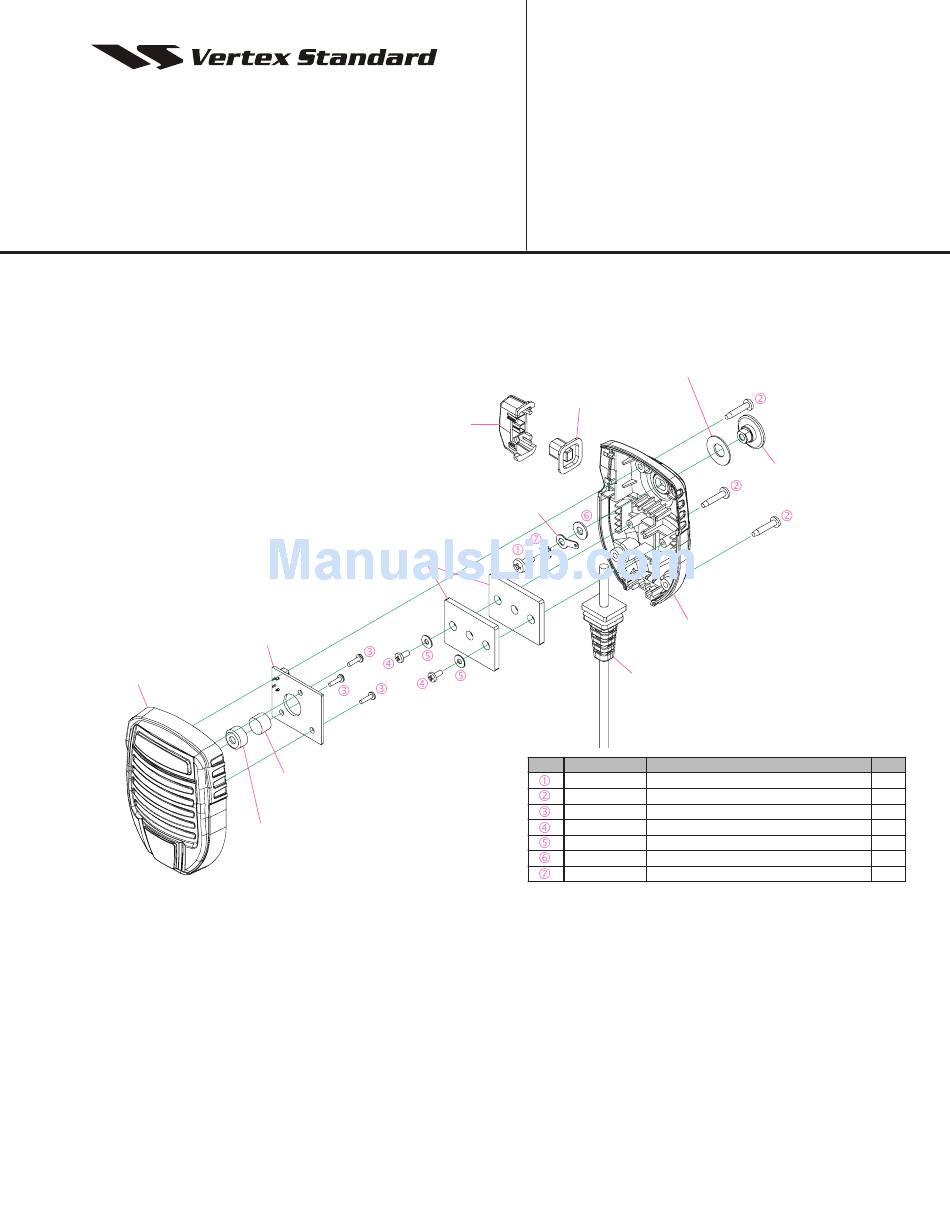

Exploded View & Miscellaneous Parts
RA0824500
PLATE ( HANGER )
RA0818600
RUBBER ( PTT )
Q6000116
T9207464
WIRE ASSY
REF. VXSTD P/N DESCRIPTION
BINDING HEAD SCREW ( M4X6NI )
U20406002
BIND HEAD TAPTITE-P ( M3X16B )
U23316007
BIND HEAD TAPTITE-B ( M2.6X6 )
U24206001
BIND HEAD TAPTITE-B ( M2.6X8 )
U24208001
PLAIN WASHER ( FW2.6 )
U70002001
U70004002 PLAIN WASHER ( FW4NI )
TOOTHED LOCK WASHER ( OW4NI )
U72004002
1
RA1028200
HOOK
RA0818300
REAR CASE
QTY.
1
3
3
2
2
1
1
