Page 1: User Manual

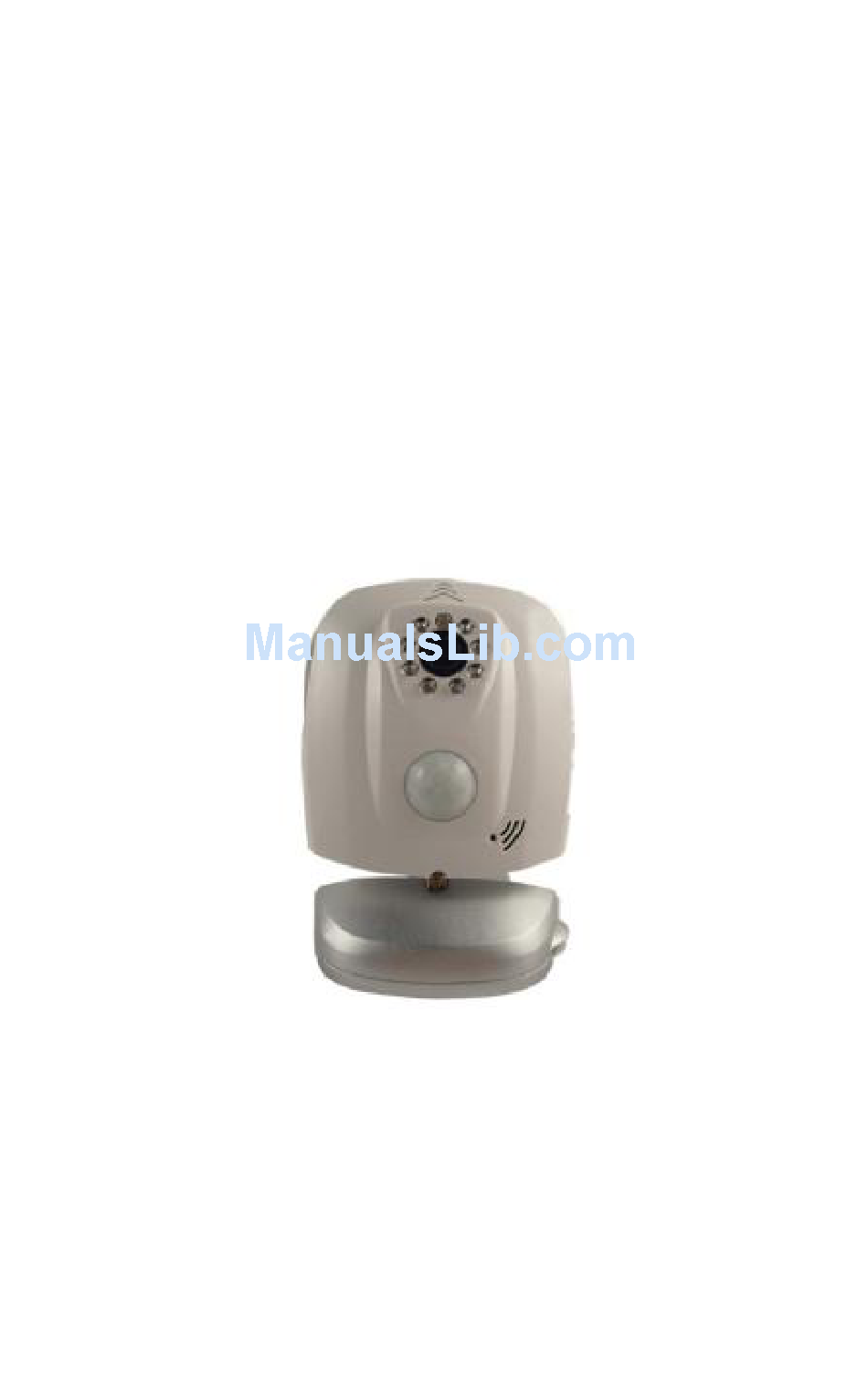

3G REMOTE CAMERA User Manual HC-6100 3G REMOTE CAMERA User Manual... -
Page 2: Table Of Contents
Contents Chapter 1. Product Features ………………………………………………….5 Chapter 2. Terms Explanation ………………………………………………..6 1.User Authorization Level: …………………………………………….6 2.Arming/ Automatic alarm …………………………………………….7 3.Disarming ……………………………………………………………..7 4.Incoming video call Talkback…………………………………..7 5.Setting………………………………………………………………... 7 6.Reset ……………………………………………………………….…7 Chapter 3. Remote controller and remote handle illustration ……………..…8 Chapter 4. Indicator light working Status Instruction …………………….…8 Chapter 5. - Page 3 8. Infrared light……………………………………………………….. 18 Turn on infrared light: ………………………………………………..18 9. Take photos ………………………………………………………..18 10. Video recording …………………………………………………..18 11. Automatic alarm …………………………………………………...19 12.ON/OFF Live voice amplifier、volume adjustment、digital zoom 19 13. Getting help ……………………………………………………..20 14. Reset the camera …………………………………………………..20 Chatpter 8. Maintenance…………………………………………………….20 Chapter 9.
- Page 4 Thank you for purchasing the 3G Remote Camera. The user manual illustrates how to operate this product so please read the user manual carefully before using it. With this high-tech wireless equipment, you can monitor anywhere at anytime by dialing video calls with 3G mobile phone. The 3G remote camera can be widely used in house、school、shop、moving cars、trains or take care of elders and children as long as WCDMA network is available.
-
Page 5: Chapter 1. Product Features
For Your Safety The product complies with the relevant Chinese standard about electromagnetic compatibility. However, please keep away from electronic equipment which is likely to interfere by the wireless signal, to avoid the signal interruption. Switch off this product in any area marked "Explosive", "might explode", "closed wireless transceiver devices"... -
Page 6: Chapter 2. Terms Explanation
² Special Camera: 2.0 mega pixels CMOS camera. ² Complete wireless connection.,easy installation:the product can be installed at any place you wanted. ² Built-in replaceable Lithium battery: rechargeable battery ensuring operation in case of external power failure. ² Real-time video: you can call the video phone to check the image of monitoring area anytime and anywhere. -
Page 7: Arming/ Automatic Alarm
Monitor by dialing √ √ Dial the voice call phone Monitor by dialing √ √ number video call √ √ Set sending SMS command √ √ Add、modify、delete sensor √ √ Bind wireless remote handle √ × Change password √ × System Recovery 2.Arming/ Automatic alarm Arming is to make the remote camera in working status. -
Page 8: Chapter 3. Remote Controller And Remote Handle Illustration
buzzer. Chapter 3. Remote control illustration Picture 2: Remote control Instructions 1. Antenna 2.Indicator light 3. Arming key 4. Disarming Key 5. Emergency key Chapter 4. Indicator light working Status Instruction... -
Page 9: Chapter 5. Installation
Color Action Status Flash slowly Searching the network. Flash Sensor alarming. Red LED quickly Continuously Not installed SIM card, or the remote camera damaged. Continuously Arming, Open the auto-alarm function. Green LED Flash slowly Disarming. Close the auto-alarm function. Flash Processing data. - Page 10 the host) Connect the adapter to an AC power, and connect the mini-USB plug to the power interface of the camera. The product has a built-in rechargeable Lithium battery. The camera will notify you when the power supply changed. For example, if the power adapter is disconnected or the AC power is cut off, it will show “AC power off”.
-
Page 11: Chapter 6. Quick Start
Chapter 6. Quick Start Tips：Assure that USIM doesn’t activate the caller transferring function and in coming call display,close the PIN code as well. 1.Power on/ off Power on: turn the power switch to upside “On” position. The indicator light will be on continuously with red color for 3-5 seconds, then change to flash slowly. -
Page 12: Arming
4. Arming Press“Arming key”directly on the remote control. If successful set, a“tick”sound can be heard from the camera and the indicator light of the camera will turn on continuously with green color 5.Disarming Press“Disarming key”directly on the remote control. If successful set, a “tick”sound can be heard from the camera and the indicator light of the camera will flash in green color. -
Page 13: Modify The Password
following SMS command to the camera: #master# After success activating the camera, it will reply you: “Welcome to use remote camera, the password is 1234” Note: If the camera has been activated before, the old master number will be saved in it, If you try to activate it again, it will reply SMS “Master already exists”. -
Page 14: The Operation Illustration Of Wireless Remote Controller
camera will send the following SMS to your mobile“user number already exists”. 4.2. Delete the telephone number of normal users： (Authority: Master） The master send a SMS to the camera and delete certain telephone number of users’ members Delete single user’s mobile number,the format is as followed： # deluser#normal users members telephone number # Delete all the normal users members’... - Page 15 with orange color. Then press any key of the remote control. When the host receives the new wireless remote control signal, a “tick …” sound will be heard and the indicator light will turn green for 2 seconds then turn to orange, and flash slowly.
-
Page 16: Built-In Pir Sensor On/ Off (Default: Off)
In disarming status, camera will not alarm (Unless press the emergency key on the remote control). All connected wireless sensors do not work. Method 1: send following SMS command to camera: Master and normal users： #disarm# Method 2: press the key of “Disarming” on the remote control. You can hear “tick…”... - Page 17 the camera will enter into the state to add new wireless sensors: status:#add sensor#sensor name# The sensor name should be English or Arabic number, Max 50 letters. It is named by Master to identify different alarm in the future. For example： #addsensor#door# If the SMS doesn’t contain the name of sensor，you can send #addsensor# to the camera.
-
Page 18: Infrared Light
After successful deletion, it will reply “All sensors deleted successfully” Guest is forbidden to do this operation. If guest send above SMS command to camera, it will reply “Sorry, you do not have the right to operate”. 8. Infrared light (Authority: Master, Normal users) Infrared light enable the camera to have a real time video clearly in dark night. -
Page 19: Automatic Alarm
Record video when taking a video call： When wireless sensor or infrared motion detector triggered, the camera system will start to dial video call orderly and record it into TF card when the video call answered. Users also can take out the TF card,and read the video document from computer by connecting with the card reader. -
Page 20: Getting Help
“5” Zoom In “6”Zoom Out 13. Getting help Get normal command help: (Authority: Master, Normal users, guest) Master or Normal User send following SMS command to camera: #help# Once success, the camera will reply users all the operating command. 14. Reset the camera (Authority: Master) If the remote camera setting is wrong, or fail to work even after restarting the camera, The following methods will enable the remote camera recover to... -
Page 21: Chapter 9. Common Malfunction Solutions
Chapter 9. Common malfunction solutions Trouble Possible Reason Solution description Can’t start Recover to original default camera Other master already set (Indicator light in the camera. setting. works) Calling line presentation All functions Contact network or MMS functions of the disable provider to active USIM USIM card does not... -
Page 22: Chapter 10. Main Technical Parameters
Trouble Possible Reason Solution description operating range battery. battery. shortened. Didn’t pull out the Pull out remote control antenna. antenna. Didn’t pull out the only remote control. antenna. The remote control or Exit the loading status. sensor already exists Can not add sensor quantity Delete old sensors before... -
Page 23: Chapter 11. Appendix: Sms Command List
Wireless sensor receiving code： Wireless sensor receiving frequency： 315/433 MHz Wireless sensor baud rate： 500-2500bps Max wireless sensor： 15unites Effective distance of the wireless remote control： 100 Meters (wide area) video format： Camera pixel 2.0 Mega pixels 60 degree （horizontally） ， 60degree （vertically） Camera Shooting angel：... - Page 24 #deluser# normal users number# Delete users Refer to Chapter 7. Advanced operation, number 4.2.Delete the telephone number of normal users. #arm# Arming Refer to Chapter 7. Advanced operation,5.3 Master Arming normal #disarm# users Disarming Refer to Chapter 7. Advanced operation, 5.4 Disarming #addsensor# Add or modify...
- Page 25 Refer to Chapter 7、advanced operation，9、 infrared light Master #shot#i(mage quantity)# Take photos normal image quantity(1 to 9), Refer to Chapter 7. users Advanced operation,10 Take photos Master #record#1# Video Record Start Video record normal #record#0# Video Record End users No SMS when Master #sms#0# alarm...
