Apexis APM-J0233-WS-IR Quick Installation Manual

Wired/wireless ip camera
Hide thumbs Also See for APM-J0233-WS-IR:

Advertisement

Quick Links

Download this manual See also: User Manual
More Security, More Convenience
http://www.apexis.com.cn

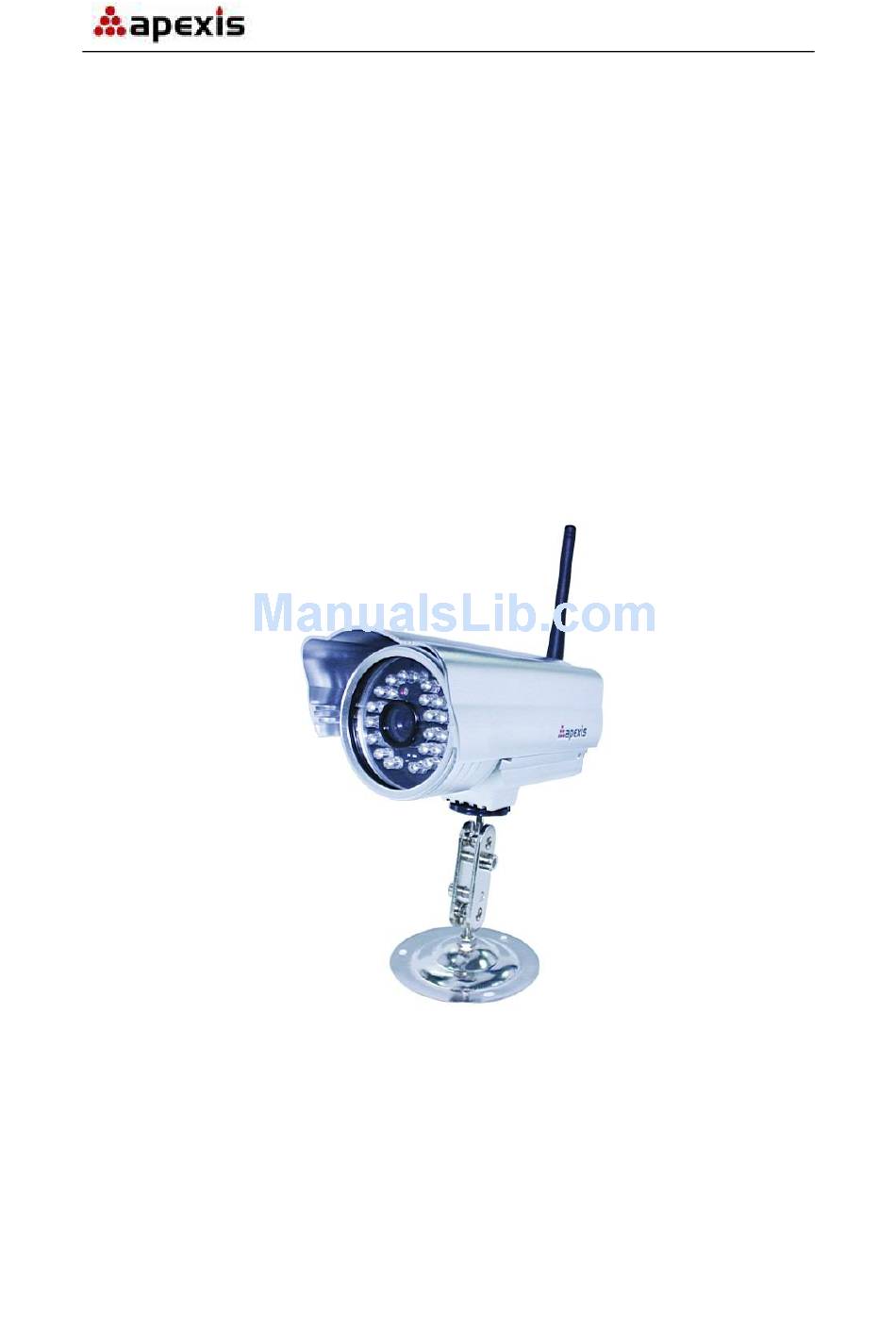

Wired/Wireless IP Camera

Quick Installation Guide

(IE Browser)
Model: APM-J0233-WS-IR
Silver
Purple
Black
White
Shenzhen Apexis Electronic Co., Ltd.

Advertisement

loading
Need help?

Need help?

Do you have a question about the APM-J0233-WS-IR and is the answer not in the manual?

Questions and answers

Related Manuals for Apexis APM-J0233-WS-IR

Summary of Contents for Apexis APM-J0233-WS-IR

  • Page 1: Quick Installation Guide

    More Security, More Convenience http://www.apexis.com.cn Wired/Wireless IP Camera Quick Installation Guide (IE Browser) Model: APM-J0233-WS-IR Silver Purple Black White Shenzhen Apexis Electronic Co., Ltd.

  • Page 2: Step 1: Hardware Installation

    More Security, More Convenience http://www.apexis.com.cn Step 1: Hardware Installation 1. Install the Wi-Fi antenna. 2. Plug the power adaptor into camera. 3. Plug the network cable into camera, the other side to the router/switch. Step 2: Software Installation Install the follow software: 1.

  • Page 3: Step 3: Real-Time Video Demonstration

    More Security, More Convenience http://www.apexis.com.cn Step 3: Real-time Video Demonstration 1. Login: Double click “IP Camera Tool” icon on desktop, search the IP address, choose the one of your camera, double click to go to IE login interface. Default username: admin Password: no password.
  • Page 4 More Security, More Convenience http://www.apexis.com.cn Q1: No pictures problem with ActiveX Settings for IE Browser If use IE browser to connect the camera for the 1 time, maybe there is no image displayed, there will be an ActiveX prompt, please click the prompt and choose Run Add-on, refresh the IE interface, and login the camera again, then will see live video.
  • Page 5 More Security, More Convenience http://www.apexis.com.cn Enable: Download unsigned ActiveX controls Enable: Initialize and script ActiveX controls not marked as safe Enable: Run ActiveX controls and plu-ins Addition: you can also click “start” menu->“Internet Explorer”, choose “Internet attributes “ to enter, or via “Control Panel” ->“Internet Explorer”, enter to Security setting.
  • Page 6 More Security, More Convenience http://www.apexis.com.cn key, then click “Submit”. 6. Wait about 30 seconds, the camera will reboot, then unplug the network cable. Q3: How to use DDNS 1. Login the camera: Click “Network”>”DDNS Service Settings”. 2. Choose the DDNS, there are 2 options:...
  • Page 7 More Security, More Convenience http://www.apexis.com.cn Third Party DDNS: This domain is provided by the 3 party, such as Dyndns, Oray, 3322 etc. Third Party DDNS If you use third party DDNS, please choose the server you use, such as “3322.org” or “dyndns.org”...
  • Page 8 More Security, More Convenience http://www.apexis.com.cn Note: Only one DDNS can be chosen, for example, if you use manufacturer’s DDNS, the 3 one won’t work, if use the 3 DDNS, the manufacturer’s one won’t work. 3. Change the camera’s port. The default port of camera is “80”, please change “80” to any other one you like, such as “81”, “100”, “8091”...
  • Page 9 More Security, More Convenience http://www.apexis.com.cn Fill the service port (except 80), IP address of the camera, then click Save The port and IP address should be the same as Camera. BELKIN: (1) Login the router. (2) Choose “Firewall”, select “Virtual Servers”...
  • Page 10 More Security, More Convenience http://www.apexis.com.cn After all these 4 steps done, then you can use the DDNS freely, check the DDNS status from the camera as below, and get the link of DDNS for internet view. Step: “Login”>”System”>”Device Info”:...
  • Page 11 More Security, More Convenience http://www.apexis.com.cn Q4: How to know the WAN IP of the device. 1. From internet. If you want to know the WAN IP of your device, please go to http://www.whatismyip.com. You will find the current WAN IP of your device.
  • Page 12 More Security, More Convenience http://www.apexis.com.cn 2. Choose Sign Up under FREE. 3. Do the follow steps: Then choose Add to Cart.
  • Page 13 More Security, More Convenience http://www.apexis.com.cn 4. Set the username and password as below: After these settings have been done, it will send an email to your mailbox to active this account. 5. Please login your email box, and open the active link you get by email, then it will go to the activate page to get this account active.
