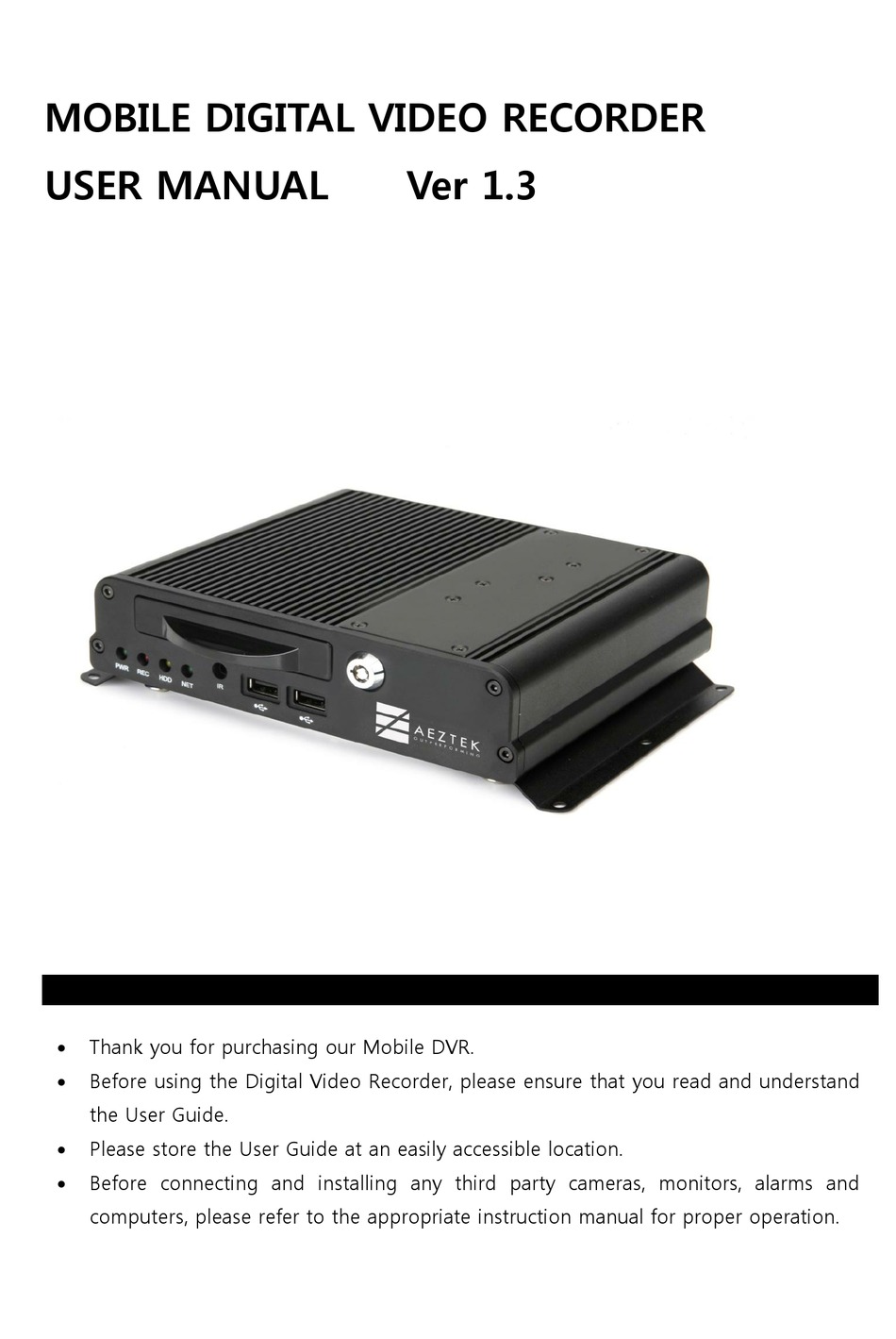

MOBILE DIGITAL VIDEO RECORDER

USER MANUAL

Thank you for purchasing our Mobile DVR.



Before using the Digital Video Recorder, please ensure that you read and understand



the User Guide.

Please store the User Guide at an easily accessible location.



Before connecting and installing any third party cameras, monitors, alarms and



computers, please refer to the appropriate instruction manual for proper operation.

Ver 1.3

Table of Contents

Need help?

Do you have a question about the Mobile DVR and is the answer not in the manual?

Questions and answers

Summary of Contents for AEZTEK Mobile DVR

Page 1 MOBILE DIGITAL VIDEO RECORDER USER MANUAL Ver 1.3 Thank you for purchasing our Mobile DVR.  Before using the Digital Video Recorder, please ensure that you read and understand  the User Guide. Please store the User Guide at an easily accessible location.
Page 2: Safety Precautions
SAFETY PRECAUTIONS CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated “dangerous voltage”...
Page 3: Table Of Contents
Contents Disclaimer ……………………………………………………………………………………………………..……………………………. Warning ……………………………………………………………………………..………………………………………………………… Caution ………………………………………………………………………………………………………………………………………… Preventing Malfunction ……………………………………………..………………………………………………………… 1. Controls ………………………………………………………………………………………………………..………………………… 2. Installation & Connection ………………………………………………..………….………………………………… 3. Live Monitoring ………………………………………………………………..………….…………………………………… 4. Setup Menu ……………………………………………………………………………………………………..…………………… 5. Search / Playback ………………………………………………………………….……..……..……………………………… 6. Quick Viewer (V-player) ………………………………………………………………………………………………… 7. SmartBlur Privacy Protection …………………………………………………..……………………………………...
Page 4: Disclaimer
Disclaimer The information in this manual is believed to be accurate and reliable as of the date of  publication. The information contained herein is subject to change without notice. Revisions or New editions to this publication may be issued to incorporate such change We makes no warranties for damages resulting from corrupted or lost data due to a ...
Page 5: Caution
around the ventilation or the slots on the outer casing over long periods of time may become saturated with humidity and short-circuit, leading to fire. Do not cut, damage, alter, or place heavy items on the power cord. Any of these actions ...
Page 6 cold temperatures may cause condensation (water droplets) to form on its external and internal surfaces. You can avoid this by placing the equipment in an airtight, resalable plastic bag and letting it adjust to temperature changes slowly before removing it from the bag.
Page 7: Package Contents
Package Contents Please check the package and contents for visible damage. If any components are damaged or missing, do not attempt to use the unit, contact your supplier immediately. If the unit must be returned, it must be shipped in the original packing box. CONTENTS QUANTITY REMARK...
Page 8: Controls
1.Control & Indicators 1.1 Front Panel 1.1.1. Mode Indicators 4 different types of LEDs show the status of the device 1) Power (PWR - Green) 2) Recording (REC - Red) 3) HDD activated (HDD - Yellow) 4) Network (Connected - Green) 1.1.2.
Page 9: Rear Panel Connectors
1.2. Rear Panel Connectors ① GPS: GPS(or GLONASS) Antenna connector ② A/V-IN: 8p (Camera 1 – 4) Connectors ③ A/V-OUT: 16p Audio/Video Output connector ④ Ethernet port ⑤ Sensor (ALARM-IN 1 – 4): For connecting alarm inputs Relay (ALARM-OUT A, B): For connection alarm out relays ⑥...
Page 10: Remote Control
1.3. Remote Control NOTE: “PTZ” and “SPOT ” are not supported by this model...
Page 11: Installation & Connection
2. Installation & Connection 2.1. Camera, Monitor, Mike and etc. 2.1.1. System Configuration The following illustration is showing the fully configured system of the Mobile DVR...
Page 12 (CONNECTION DIAGRAM) 2.1.2. Recommended mounting angle Due to default setting value of shock sensor, recommended mounting angle of DVR is basically horizontal If the DVR is to be installing to vertical or any other angles, it needs calibration of the shock sensor in the menu of DVR after installation.
Page 13: Live Monitoring
3. Live Monitoring 3.1. Display Overview ② ① ① ③ ④ ⑥ ⑤ ① Recording Status : it shows that the DVR is currently recording or not ② Alarm Status : It shows whether there is an event for each channel ③...
Page 14: Setup Menu
3.2. Display Split 3.2.1. Full Screen Select any camera for full screen display by pressing the Number button of the desired camera 3.2.2. 4Ch split Press [DISPLAY] buttons to activate 4ch split mode. 4. Setup Menu 4. 1. Setup Menu Overview When the DVR is powered on, the Live Viewing screen will appear after a short initialization.
Page 15: Camera Setup
１. Use Direction buttons [◀▶] to select the desired menu. Items selected in the menu are represented in color. Press [ENTER] button to select the menu and display Sub-Menu. Use Up/Down ２. buttons [▲▼] to select tab. Selected tab will be highlighted. Selected Not Selected NOTE: Changes are automatically saved when changing tabs...
Page 16: Record Setup
 The contrast of each camera can be adjusted with the [-, +] CONTRAST buttons. COLOR  The color of each camera can be adjusted with the [-, +] buttons. 4.3 Record Setup 4.3.1 General Settings The DVR comes with preset settings from the factory. Therefore once the DVR is installed, immediate recording is possible after pressing the record button.
Page 17 selected period  Delete the recording file after saving the AUTO DELETE NONE of recording time.  Adjust the post recording duration after a motion is POST RECORD 40 SEC. detected or event is triggered 4.3.2. Setup User can set up frame rate and image quality in MODE 1 and MODE 4. - Channel 1~4: User can set up to 30 (25 in PAL) frames with all resolutions (D1, 960H, Half D1/2CIF, &...
Page 18 4.4. Event 4.4.1. Alarm ITEM DEFAULT ADJUSTMENT Configure which relay will be triggered when an alarm is  activated per camera. Select from four available options: System, Video Loss, Motion, Event Press [Cancel] button to stop Alarm Out  It will be cleared by an order: Alarm>Motion> Video Loss NOTE: If “System”...
Page 19 2. How to connect ALARM OUT A, ALARM OUT B. 1) Connect ALARM OUT B to GND. 2) ALARM OUT A is used by signal line. 3) When ALARM is triggered, supply GND to ALARM OUT A port. 3. How to VIDEO LOSS ALARM OUT setting 1) After REC OFF, please select MENU →...
Page 20 Choose a channel for alarm input and N.C or N.O option. ALARM IN CH1, OFF Choose a channel which a panic button is connected. PANIC NONE ITEM DEFAULT ADJUSTMENT Select alarm channel you want to configure by using (-, +) ...
Page 21 * N.C. (Normally Closed): ex) Closed door is default for the alarm.  Set up the input reference duration of the alarm. When duration of the input signal exceeds the set value, the device recognizes and displays it as each alarm. 4.4.2 Shock Sensor DEFAULT ADJUSTMENT...
Page 22  Press START button to set up current AXIS value as a standard.  I f the DVR is not be installed by horizontal angle (If the DVR is to be installing by vertical or other angles), it should be needed calibration. AUTO START ☞...
Page 23 4.5. NETWORK 4.5.1. ACMS ITEM ADJUSTMENT SERVER Enter IP address of PC which ACMS is installed Enter port of PC which ACMS is installed. This Port should be PORT port forwarded to the ACMS PC. Port forwarding could be setup by router PACKET CYCLE...
Page 24 4.5.2. WIFI ITEM ADJUSTMENT WIZARD MENU Wizard to connect wifi MANUAL You can manually enter target wifi router and connect it with MENU its password.. CONNECTION It shows the status of the wifi connection INFO Below is the screen shot of Wizard menu of wifi. It shows that the DVR is scanning Wifi Router...
Page 25 Below is screen shot of manual menu for wifi setup 4.5.3. ETHERNET If you want to use this DVR as normal standalone DVR or connect DVR via RJ45 connector for local network and local monitoring, you need to put the IP address, Netmask, Gateway, DNS server and Access port.
Page 26: System Setup
ITEM ADJUSTMENT CONFIG (LAN) Choose Static or DHCP IP ADDRESS Enter assigned IP address of the DVR NETMASK Enter Netmask GATEWAY Enter Gateway PRI. DNS Enter Primary DNS Server IP address SERVER ACCESS PORT Enter Port Number. Default is 7000 4.6.
Page 27 4.6.2 DISPLAY ITEM ADJUSTMENT  Select “Show” or “Hide” to display the OSD information on main screen CAMERA  Select to show camera number on main screen, or unselect to hide.  Change color of border line between cameras. BORDER LINE [BLACK ...
Page 28 4.6.3. TIME ITEM ADJUSTMENT TIME ZONE  Select the time zone for the region of use (GMT -04:00 (Standard)) DATE  Enter the Date (MM/DD/YYYY) TIME  Enter the Time (HH:MM:SS)  If the DVR is connected with GPS, the time of the device can be synced with the time information received by the GPS GPS SYNC ...
Page 29 4.6.4. DISK ITME ADJUSTMENT 1. Stop the recording before formatting the internal HDD. FORMAT 2. Press START button to start 4. Format status is displayed on-screen DISK MONITOR  To check the condition of the HDD, Choose “START” and Press it. 4.6.5.
Page 30 INDICATOR ADJUSTMENT Enter the ID of the Vehicle VEHICLE ID VEHICLE INFO Enter information of the vehicle 4.6.6. MISC. INDICATOR ADJUSTMENT Turn on or off the buzzer of DVR EVENT BUZZER KEY TONE To turn on or off the key tone of remote control LANGUAGE Choose your language with DVR VIDE MODE...
Page 31: Search/Playback
5. SEARCH/PLAYBACK 5.1. Time Search 1. To start playback, press [Time Search] button, the Time Search Calendar Menu will pop up, as shown below. 2. Use the Left /Right buttons to select the month and year NOTE: The date will not change if there is no stored data on the previous or next month NOTE: The data is color-coded by category: Alarm (Red) >...
Page 32 5.2. Log List Search/Alarm, Motion Search The logs can be used to search and review directly a point in time of the recorded data. Alarm, motion, video loss and system related errors are logged and can be searched and played back directly from the time of the incident. To start Event Search, press [Log] button, then the Log List Menu will pop １.
Page 33: Quick Viewer (V-Player)
6. Quick Viewer (V-player) V-player is a quick viewer that does not need to be installed on the PC. It will be saved to the SD Card automatically. 6.1 Operation 1) Once an SD card with recorded data is inserted into the PC, open the SD card folder 2) Double click the icon (vplayer.lite.exe) to launch the quick viewer...
Page 34: Main Window
6.2 Main Window 6.2.1. Upper Status Bar ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ① Select storage folder in which recorded data is saved. ② Select recorded data file. ③ Click icon to show search display. - When folder with data is selected, this icon is activated with host name or vehicle name in the device.
Page 35 ⑨ Settings (Display, Events, Video Flip/Mirror) ⑩ S/W version 1) Display - OSD Display: Select option which user wants to display on the channel - Units: Select speed option between KMH or MPH. 2) Events: User can set up event name without Motion and Video Loss 3) Video Flip / Rotate: Flip or rotate the image, per channel...
Page 36 6.2.2. Playback Status Bar ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ① Auto / one file playback toggle icon ② Select playback speed. Supports x0.2, x0.5, x1, x2, x4 ③ Play / Pause icon ④ Playback previous record file ⑤...
Page 37 ③ User can choose to full screen or split mode by double-clicking selected channel ④ User can change channel by draging and droping. 6.2.4. MAP and GPS information Shows GPS information of device and driving location ① This icon shows where the device was on the map at that time. ②...
Page 38 6.2.5. Record file Search shows a graphical representation of the recorded video stored on the device. The data are color-coded by category: Event (Red)> Motion (Blue) > Normal (Green) ① Record data Tree * Data Filter All Data: Show days with all record data. ...
Page 39: Smartblur Privacy Protection
② Record Time/Min indication - If the record date is selected, recording data of selected date will be displayed by 5 minutes unit. - First row shows Time, Second row shows recorded data for 5 Minutes unit - Color bar info No data recorded Normal record data Motion record data...
Page 40 7. SmartBlur Privacy Protection Blur faces of innocent passengers or drivers throughout the video to protect privacy. User can modify and save recording file as avi file format to desired folder by using a SmartBlur function for privacy protection. 7.1 How to use the SmartBlur function Click Convert to avi icon - Path: Select path for saving file.
Page 41 - Ch Select: Select Channel which wants to convert. - Ch1~Ch4: Select Channel which you want to add Blur(Mosaic) to desired video. - +/-: Create Blur or delete. - Grid Control: User can change size of the created Mosaic(Blur).
Page 42: Specification
- Select the section which user wants to save by using ‘S(Start)’ and ‘E(End)’ button. - Convert to Avi: Start convert SmartBlur video file.
Page 43 8. Specifications Operating system Embedded Linux Video input 4 CH (D1, 4-channel @ 30fps, 960H) Video output 5 CH (4ch Camera Loop-out + 1CH DVR LIVE out) Video compression H.264 Audio input / output 4 CH / 5 CH (Octopus Cable, Camera Loop-Out) Audio compression G.711 Display split...
Page 44 WEEE Symbol Information Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates, that it should not be disposed with other household wastes at the end of its working life.
