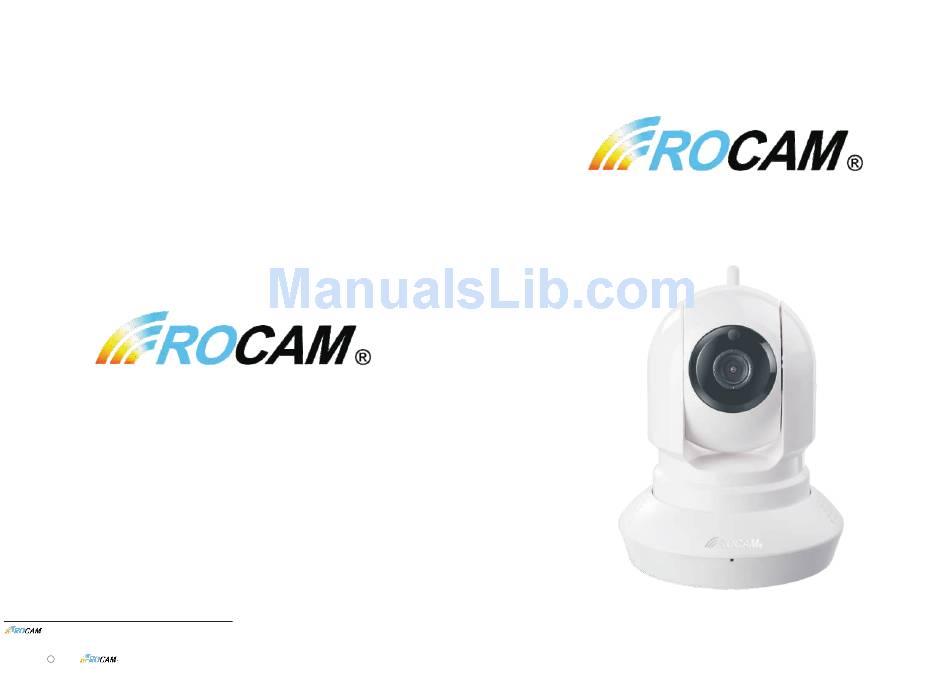

Quick Installation Guide
SHENZHEN YELAW TECHNOLOGY CO.,LTD.
is the registered trademark of Shenzhen Yelaw Technology CO., Ltd.All the products and product
names metioned here are the trademarks or registered trademarks of their respective holders.
Model: NC500
Specifications are subject to change without notice.
c
Copyright
2012
All Rights Reserved.
http://www.yelaw.net
Version: 2.2
Advertisement
Table of Contents
Summary of Contents for Rocam Technology NC500
-
Page 1: Quick Installation Guide
SHENZHEN YELAW TECHNOLOGY CO.,LTD. is the registered trademark of Shenzhen Yelaw Technology CO., Ltd.All the products and product names metioned here are the trademarks or registered trademarks of their respective holders. Model: NC500 Specifications are subject to change without notice. Copyright 2012 All Rights Reserved. -
Page 2: Table Of Contents
Contents Chapter 1 System Introduction 1. 1 Key Features 1. 2 Environment for System Preface 1. 3 Package Contents 1.4 Interface Chapter 2 Device Connection 2.1 Ethernet Cable Connection Thanks very much for choosing our IPCamera. In order to make it more convenient for you 2.2 Power adapter Connection Chapter 3 Apple Device setting to use proficiently, we provide you with a user manual. -
Page 3: Chapter 1 System Introduction
Micro SD Card Slot Ethernet Cable Power Adpater User Manual Note: NC500 can be reset to factory settings by pressing the reset button for 10 seconds. Warranty Card The reset button can be found at the bottom of the camera. Data CD... -
Page 4: Chapter 2 Device Connection
Plug Power adapter to “DC In Jack” of NC500.After Nc500 start (about 60 seconds).It will generate a wifi hotspot. 2.2.2 Use iOS device or android device search wifi hotspot of NC500.The name of wifi hotspot is 3. 2 APP Features introduction CAM****. - Page 5 Edit the camera which is on the Click this area to enter Real-time video monitoring screen. camera list,you can delete the camera from the camera list or re-enter the password or user 4 camera viewing mode. name when it says Invalid user or password.
-
Page 6: Add Camera
3.3 Add Camera 3.4 Delete Camera There are 3 methods to add cameras: Method 1 - Input the UID username and password directly. Method 2 - Scan QR Code. Method 3 - Search camera on the same network Click here to edit camera settings Click here to add new camera Method 1: Enter the UID Username and password... -
Page 7: Wifi Setting
3.5.1 Wifi Setting 3.5.3 Time Setting Click “Done”to store and enable WIFI settings, camera will reboot automatically,you can unplug the LAN cable and use WIFI. Displays the actual time of the camera. Click here to scan the “Wireless Access Points”around you. Select the TimeZone. -
Page 8: Alarm Setting
3.5.7 Record Setting 3.5.5 Alarm Setting Click “Done”to store and Click “Done”to store and enable all settings. enable all settings. Enable/Disable motion detection setting. Enable:SD Card recordings will The sensibility setting. be overwritten when SD Card's The bigger number, the capacity is full. -
Page 9: Event
3.6 Event 3.8 Video In “Video” Mode,you can choose “Local” to check the videos that were recorded on your iphone or choose “Remote” to check the videos that were recorded on the camera's SD Card. Displays the alarm logs. 3.9 About 3.7 Photo Check recorded videos. -
Page 10: Chapter 4 Android Device Setting
Chapter 4 Android Device setting Edit the camera which is on the camera list,you can delete the 4. 1 Download and install Android APP camera from the camera list or 4 camera viewing mode. Enter the google play, search download and install “YIPC”. -
Page 11: Add Camera
4.3 Add Camera Click this area to enter Real-time video monitoring screen. There are 3 methods to add cameras: Method 1 - Input the UID username and password directly. Method 2 - Scan QR Code. Method 3 - Search camera on the same network Click here to add new camera Method 1: Enter the UID... -
Page 12: Delete Camera
4.4 Delete Camera 4.5.1 Wifi Setting Click “Done”to store and enable WIFI settings, camera will reboot automatically,you can unplug the LAN cable and use WIFI. Click here to enter camera settings Click to access WIFI settings. Click here to scan the “Wireless Enter Wifi password.then click Access Points”around you. -
Page 13: Time Setting
4.5.3 Time Setting 4.5.5 Alarm Setting Click “Done”to store and enable all settings. Displays the actual time of the camera. Enable/Disable motion Select the TimeZone. detection setting. The sensibility setting. the bigger number, the higher the sensibility. NTP Time values setting, Click to access Time settings. -
Page 14: Record Setting
4.5.7 Record Setting 4.6 Event Click “Done”to store and enable all settings. Enable:SD Card recording will be overwritten when SD Cards capacity is full. (SD card not included) Start time and end can be set on your camera.This mode will automatically record on those set time. -
Page 15: About
4.8 Video Chapter 5 PC software In “Video” Interface,you can choose “Local” to check the videos that were recorded on 5. 1 Download and install Software your phone or choose “Remote” to check the videos that were recorded on the Enter the website: http://www.ipcsw.com/n3.html, download and install “PC Software”. -
Page 16: Software Home
5.3 Add Camera 5. 2 Software home page introduction There are 2 methods to add a camera: Method 1 - Search camera (camera and computer should be on the same network). 20 22 Method 1:Search camera in the same network. 1.Rotation control buttons: Press on the number corresponding to the direction in which you want the camera to turn to. -
Page 17: Delete Camera
5.5.1 Wifi Setting 5.4 Delete Camera Click here to scan the “Wireless Access Points”around you. Wireless Acces Point displayed, Enter Wifi password.then click Set button. select your target network,input it's password.(if PW is required) Select camera that you want to delete.Then click the Delete button. Click “Set”to store and enable WIFI settings, If you want to delete all the cameras.click Delete All. -
Page 18: Time Setting
5.5.3 Time Setting 5.5.5 Alarm Setting Enable/Disable motion detection Sensibility set,the bigger number,the higher sensibility. When the alarm is enable.you have the option of 16 presets in total. Enable:Camera will send email notification when alarm is actived. 1. Displays the recent time of the camera. 2. -
Page 19: Record Setting
5.5.7 Record Setting How to reset to factory settings Please make sure the power is connected while resetting. It's better to format the SD Card before recording. Enable:SD Card recordings will overwrite record when SD Card's capacity is full. Start time and end can be set on your camera. This mode will automatically record on those set time.
