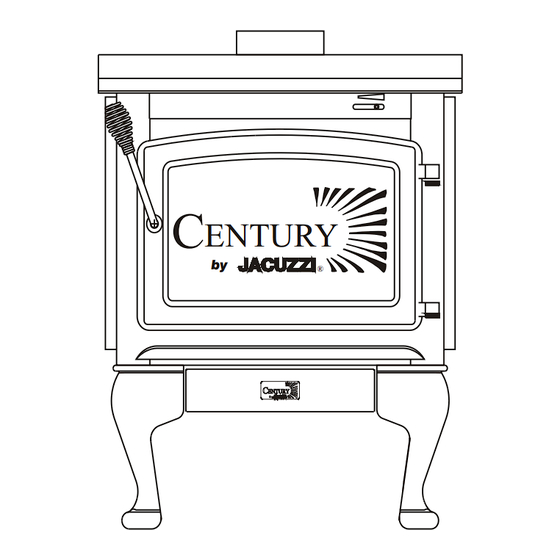

Century CJW1000 SERIES Owner's Manual

High efficiency air tight wood stove
Hide thumbs

Advertisement

Table of Contents

CJW1000, CJW1500, CJW2000 SERIES
HIGH EFFICIENCY AIR TIGHT WOOD STOVE
C
6" (152mm)FLUE REQUIRED
Made in
CANADA
Part No. S19729 Rev 1
For Residential Installation
ENTURY
by
®
SAVE THIS MANUAL FOR FUTURE REFERENCE
OWNERS MANUAL
SAFETY NOTICE
Read this entire manual
before you install and
use your Appliance.
If not properly installed,
a house fire may result.
To reduce the risk of
fire, follow the
installation instructions.
Failure to follow
instructions may result
in property damage,
bodily injury, or even
death.
Contact local building,
fire officials or
authorities having
jurisdiction about
permits, restrictions and
installation
inspection requirements
in your area.
This unit is not mobile
home approved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CJW1000 SERIES and is the answer not in the manual?

Questions and answers

Related Manuals for Century CJW1000 SERIES

Summary of Contents for Century CJW1000 SERIES

  • Page 1 OWNERS MANUAL CJW1000, CJW1500, CJW2000 SERIES HIGH EFFICIENCY AIR TIGHT WOOD STOVE For Residential Installation SAFETY NOTICE Read this entire manual before you install and use your Appliance. If not properly installed, a house fire may result. To reduce the risk of fire, follow the ENTURY installation instructions.
  • Page 2 Questions With The Assembly? Require Parts Information? Product Under Manufacturer's Warranty ? Call Toll-Free: Canada: 1-800-386-1210 USA: 1-800-836-1210 Monday to Friday. 8:30 am,- 5:00 pm E.S.T TO HELP US HELP YOU] Fill-in the Information requested below And Retain Proof Of Purchase. Date Of Purchase Model Number Product Serial Number...
  • Page 3 CAUTION After reading these instructions if you have any doubt about your ability to complete your installation in a professional like manner you should obtain the services of an installer versed in all aspects as to the correct and safe installation DO NOT use temporary makeshift compromises during installation.
  • Page 4 WHY THE CORRECT FLUE SIZE IS IMPORTANT - 6"(152mm) Draft is the force, which moves air from the appliance up through the chimney. The amount of draft in your chimney depends on the length of the chimney, local geography, nearby obstructions, and other factors.

  • Page 5: Installation

    INSTALLATION 1. Remove all parts from inside the stove body. 2. Select the proper location for the stove. These appliances must not be installed any closer than the minimum clearance to combustible materials shown on page 7 of this manual. The stove must be installed on a non combustible surface as shown on page 7 of this manual.
  • Page 6 BRICK DIAGRAMS 1 7 1 CJW 1000 SERIES CJW 2000 SERIES 2 FULL BRICKS BAFFLE ASSEMBLY CJW 1500 SERIES BE SURE TO INSTALL TWO FULL BRICKS (S16040) IN BAFFLE AS SHOWN BAFFLE BRICK INSTALLATION CJW 1000 AND CJW 1500 SERIES PARTS LIST ITEM DESCRIP TION...
  • Page 7 CLEARANCES CEILING BACK WALL BACK WALL 8”(203mm) **16” (406mm) *18” (457mm) 8” 8” FLOOR * CANADA **U.S.A DIMENSIONS: INCHES (mm) CJW1000 SERIES CLEARANCE TO COMBUSTIBLES WITH SINGLE WALL CONNECTOR 12-1/2 19-1/2 (305) (318) (178) (495) (381) (381) (1422) WITH DOUBLE WALL CONNECTOR...
  • Page 8 Floor Protector Installation on a Concrete Floor An appliance mounted on a concrete floor does not require floor protection. Carpeting and any other combustible material shall not cover the Floor Protector. If a combustible surface is applied to the concrete floor, a clearance must be maintained equivalent to the area reserved for the floor protector.

  • Page 9: Operation

    REFER TO CHIMNEY AND CHIMNEY CONNECTOR MANUFACTURER’S INSTRUCTIONS 2FT(610mm) HIGHER CHIMNEY THAN NEAREST 3FT(1M) MIN POINT OF ROOF FROM ROOF CONTACT YOUR LOCAL BUILDING WITHIN 1OFT(3m) PENETRATION AUTHORITY FOR APPROVED METHODS OF INSTALLATION 1. This appliance requires a masonry or pre- manufactured chimney listed to ULC S629 (Canada) and UL103HT (USA) MINIMUM OVERALL...

  • Page 10: Building A Fire

    NEVER USE GASOLINE, GASOLINE-TYPE LANTERN FUEL, KEROSENE, CHARCOAL LIGHTER FLUID, OR SIMILAR LIQUIDS TO START OR 'FRESHEN UP' A FIRE IN THIS HEATER. KEEP ALL SUCH LIQUIDS WELL AWAY FROM THE HEATER WHILE IT IS IN USE. NSTRUCTION FOR FIRST BURN - CURING THE STOVE PAINT Your stove has been painted with the highest quality stove paint and has special break-in procedures.

  • Page 11: Glass Care

    GLASS CARE REPLACE GLASS ONLY WITH HIGH TEMPERATURE ROBAX PYROCERAM OF THE PROPER SIZE AND THICKNESS The following use and safety tips should be observed: 1. Inspect the glass regularly for cracks and breaks. If you detect a crack or break, extinguish the fire immediately, and contact your dealer for replacement.
  • Page 12 CREOSOTE When wood is burned slowly, it produces tar and other organic vapours. These combine with moisture to form creosote. Creosote vapours condense in the relatively cool chimney flue of a slow- burning fire. As a result, creosote residue accumulates on the flue lining. When ignited, this creosote makes an extremely hot fire.
  • Page 13 DOOR REPLACEMENT PARTS DOOR REPLACEMENT PARTS – CJW1000 SERIES ITEM DESCRIPTION PART NO DOOR (NO GLASS) S41105 2&3 GLASS AND GASKET S31117 3.5ft (1067mm) 1/8” (3mm) GLASS GASKET ONLY S15001 GLASS CLIP S37018 SCREW S11086 4.3FT (1311 mm) 5/8” (16mm) DOOR GASKET ONLY...

  • Page 14: Air Control Settings

    Twist spring handle in a counter clockwise motion while pushing on the handle will "thread" down to desired location Brass Body Trim Door Spring Handle P/N S32217- CJW1000 series P/N S11007 P/N S32098- CJW1500 series Air Control- Spring Handle P/N S32592- CJW2000 series...
  • Page 15 IMPORTANT HELPFUL HINTS WORTH REPEATING 1) What is the correct way to start a fire? a.) You will need small pieces of dry wood (kindling) and paper. Use only newspaper or paper that has not been coated or had unknown materials glued or applied to it. Never use coated (typically advertising flyers) or coloured paper.
  • Page 16 HELPFUL HINTS WORTH REPEATING continued 4.) Will following the above listed steps for starting a fire result in perfect results all the time? The quick answer is most of the time. There are many variables that may affect your success rate when staring a fire.
  • Page 17 HELPFUL HINTS WORTH REPEATING continued a.) Atmospheric Pressure and Air Supply Atmospheric pressure affecting the draft from a chimney can be either outside the home, inside the home or both. Outside the home, a high-pressure day (clear and cool) generally creates a better draft in the chimney than a low-pressure day (overcast and damp).
