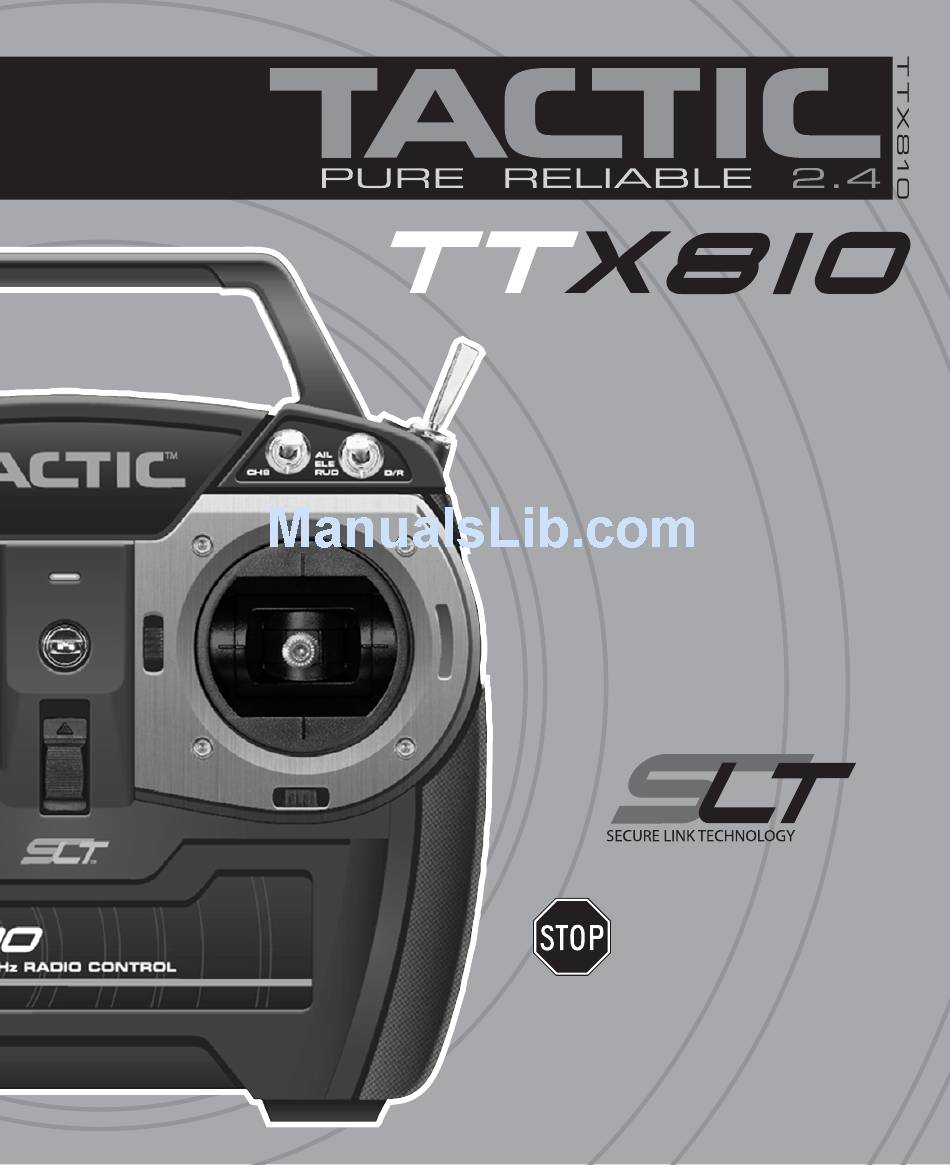

2.4GHz 8-CHANNEL SPREAD SPECTRUM RADIO
INSTRUCTION MANUAL
The TTX810 radio system uses the advanced
2.4GHz spread spectrum SLT "Secure Link
Technology" protocol for solid, interference-free
control of R/C models. Ball-bearing gimbals
and adjustable gimbal sticks are great for feel.
Wired and wireless trainer systems, digital
trims, a built-in charge jack, and extra
channels add versatility. Tactic 2.4GHz
transmitters are compatible only with
Tactic brand receivers and those utilizing
the SLT protocol.
this manual in its entirety before
use! Also read and understand the
instructions included with the model.
Damage resulting from misuse or
modification will void your warranty.
For safe operation and
best results, it's strongly
recommended
TM
™
to
read
Advertisement
Table of Contents
Related Manuals for Tactic TTX810
Summary of Contents for Tactic TTX810
- Page 1 2.4GHz 8-CHANNEL SPREAD SPECTRUM RADIO INSTRUCTION MANUAL The TTX810 radio system uses the advanced 2.4GHz spread spectrum SLT "Secure Link Technology" protocol for solid, interference-free control of R/C models. Ball-bearing gimbals and adjustable gimbal sticks are great for feel. Wired and wireless trainer systems, digital trims, a built-in charge jack, and extra channels add versatility.
-
Page 2: Table Of Contents
ELECTRIC COMBUSTION TTX810 TRANSMITTER ....3 POWERED APPLICATIONS... . . 9 Input Power ......4 Electric Models . -
Page 3: Features
2.4GHz signal, and that your compatible receiver accepts only your ™ signal. Linking most Tactic brand receivers is as simple as pushing a button. The TTX810 is also compatible with all transmitter-ready aircraft bearing the Tx-R™ logo, and non-Tactic brand receivers having the *SLT protocol ✱... -
Page 4: Input Power
Do not accidentally short circuit the terminals inside the charge jack as permanent damage could result and void the warranty. The TTX810 includes a built-in charge jack for convenient recharging of NiCd or NiMH batteries, and is compatible with charge leads designed for Futaba ®... -
Page 5: Aileron / Left-Right
AILERON / LEFT-RIGHT (CH1) For multi-rotors: Sideways movement of the right-hand stick controls right / left movement. Right movement of the stick moves the model to the right. Left movement of the stick moves the model to the left. For airplanes: Controls the moveable surfaces at the end of both main wings to rotate the airplane about the “roll”... -
Page 6: Channel 7
This option allows for connection to another Tx having a trainer jack, and can function as either the teacher or student’s Tx. This also allows for connection of the TTX810 to some computer based fl ight simulators. See the SERVOS AND ACCESSORIES section on page 12 for recommended trainer cords. Refer to instructions... -
Page 7: Wireless Trainer
WIRELESS TRAINER This option allows for communication with another Tactic Tx by wireless means, and can function as the teacher or student’s Tx. This function is not compatible with other brand radios. 1. Link the teacher’s Tx to the receiver inside the aircraft. Remove power from the Rx, then the Tx. -
Page 8: Receiver And Flight Equipment Installation
Mount the Rx as specifi ed in the model’s instructions. Wrapping the Rx with foam rubber can help to prevent damage resulting from vibration but could prevent adequate airfl ow from passing over the Rx. See the SERVOS AND ACCESSORIES section for additional Tactic receivers. -
Page 9: Servos
SERVOS Screw Rubber Grommet Center all trims on the Tx. Install the servos in the model and connect linkages as shown in the model’s Brass Eyelet instructions. Do NOT over-tighten the mounting screws, Servo Servo Servo Tray as the servos should be able to move slightly to compensate for engine vibration. -
Page 10: Link The Receiver To The Transmitter
All other channels will hold their last recognized position. Tactic’s TR624 and TR625 receivers allow for the failsafe position of throttle channel 3 to be custom set by the user. The factory default failsafe position for channel 3 is 0% throttle. Channels 1, 2, 4, 5, and 6 will hold their last recognized positions. -
Page 11: System Check And Operation
SYSTEM CHECK and OPERATION WARNING! Always make sure that power is applied to the transmitter BEFORE applying power to the receiver and servos, and the Tx throttle stick is at minimum (idle) position. Failure to do so could result in the model becoming uncontrollable and cause a safety hazard. During all pre-fl... -
Page 12: Safety Guide
Practice good safety precautions at all times when fl ying model aircraft. The AMA can assist in locating authorized local fl ying clubs and fi elds. The TTX810 is intended for use with radio control model hobby airplanes and quadcopters. Use with non-hobby related products for non-hobby related activities is not recommended or encouraged. -
Page 13: Specifications
Antenna: Built-in non-removable ® Charge Jack: Built-in (Futaba compatible, for use with optional NiCd or NiMH cells) Trainer Function: Wired, and wireless (compatible with Tactic brand transmitters only) Trainer Jack: 3.5 mm mono headphone socket Optional Mixes: Elevon, V-tail OTHER ITEMS INCLUDED ●... -
Page 14: Troubleshooting
TROUBLESHOOTING RANGE IS SHORT: Interference – check Rx installation. Weak Tx or Rx battery – replace the batteries or recharge as applicable. Rx may need to be located to a different position in the model for better reception. Crash damage – send the radio to Hobby Services for repair. RUN TIME IS SHORT: Weak Tx or Rx batteries –... -
Page 15: Ce Compliance Information For The European Union
Declaration of Conformity: Product: Tactic TTX810 2.4GHz 8-Channel Tx Item number: TACJ2810 The objects of the declaration described here are in conformity with the requirements of the specifi cations... -
Page 16: Warranty Information
1-YEAR LIMITED WARRANTY Tactic warrants this product to be free from defects in materials and workmanship for a period of one (1) year from the date of purchase. During that period, Tactic will, at its option, repair or replace without service charge any product deemed defective due to those causes.
