Summary of Contents for Jeasun CamDiscovery A27

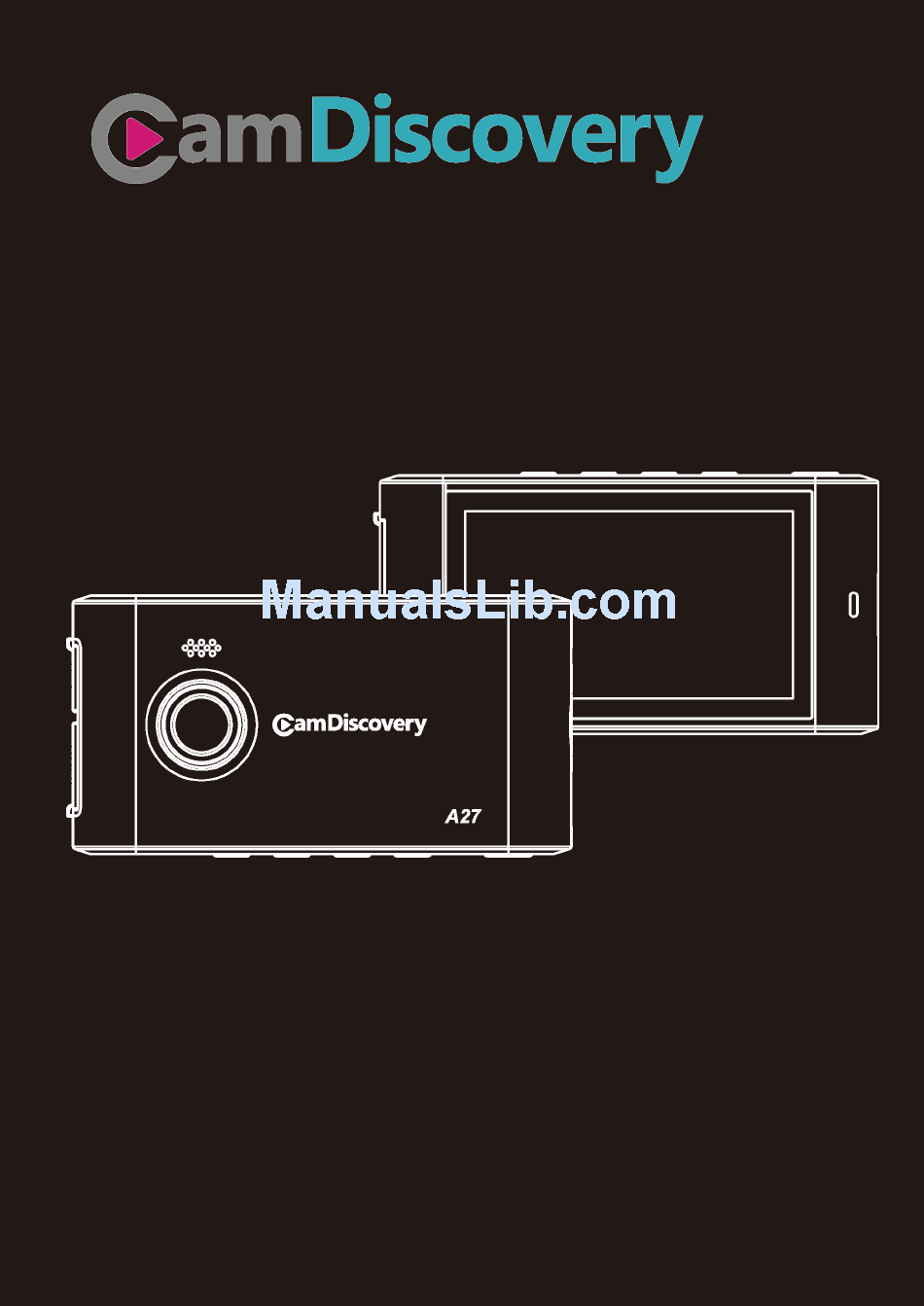

- Page 1 A27 User Manual Please read the user manual clearly for avoiding any wrong opeartion, current manual is not the newest and not complete, please contact us if any query. ~ 1 ~...
-
Page 2: Table Of Contents
Main Features................................4 Install & Use .................................. 5 Camera Body ................................ 5 Install Memory Card ............................. 6 Installation ................................6 Connect to Cigar Charger ........................... 7 The Actual Scene Picture ........................... 7 Video Record & Picture Capture ........................8 Video & Picture Playback ............................ 9 Delete Files ................................. - Page 3 Date & Time stamp ............................21 System Setting ................................22 Exposure Setting ..............................22 White balance ..............................22 Date/Time Setting .............................. 23 Beep Sound ................................ 23 Language ................................24 TV mode output ..............................24 Frequency ................................25 Image Rotation ..............................25 Screen Saver ..............................
-
Page 4: Main Features
Main Features 960 x 240，2.7 inch TFT LCD Screen 3MP FULL HD CMOS Sensor 135º Super wide angle Full HD 1080P H.264 Compression to MOV video format Built in G-sensor for accident and enforce to save the video ... -
Page 5: Install & Use
Install & Use Camera Body 1) Power & Mode 2) Up 3) Menu 8) HDMI Port 4) Down 9) USB Port 5) Capture/Record/Confirm 10) Lens 6) TF Card slot 11) Mount Power Contact 7) REC Indicator 12) MIC ~ 5 ~... -
Page 6: Install Memory Card
Install Memory Card 1) Please install the TF card correctly according to the picture below: 2) This product does not build in memory, support 1GB~32GB SDHC TF card expand. 3) After insert the TF card, the available usage volume could be checked on the screen. Caution: Please use the original TF card to ensure the product works normally, and please format the memory card in camera system before use. -
Page 7: Connect To Cigar Charger
Connect to Cigar Charger Connect the USB to the camera, and insert the cigar lighter charger to vehicle cigar power source. The Actual Scene Picture ~ 7 ~... -
Page 8: Video Record & Picture Capture
Video Record & Picture Capture 1) The camera will start to video record automatically if connected the power, the Red icon on the left corner of screen will flash continuously, and means recording normally, like below: 2) Press POWER button switch to “Picture Capture” mode, then press REC button once to take picture, available to press <... -
Page 9: Video & Picture Playback
Video & Picture Playback Press POWER button switch to the folder interface, use < > button to browse the video and pictures, like below: Video File： Press REC button to play or pause video playing, use < > button could fast forward or fast backward. Picture File：... -
Page 10: Delete Files
Delete Files Press MENU button under Playback or Browse mode, the system will appear the delete option menu like below: Use < > button to do operation: Choose Delete：Press REC button to confirm delete and the delete option menu will appear, or press MENU to quit. -
Page 11: Connect To Television
Connect to Television 1) Connect with TV by offered USB&RCA cable Please insert the RCA head to TV ( Yellow-Video; White-Audio), USB head to camera unit, like below: 2) Connect with TV by HDMI ~ 11 ~... -
Page 12: Connect To Pc
Connect to PC Connect the camera unit with PC by USB cable, available to browse the video & picture files in the PC and charge the power. After connect the camera unit with the computer, the screen will display an option menu lie below, use < > to change option and press REC to confirm suitable choice according to need. -
Page 13: System Icon & Gps
System Icon & GPS System Icons on screen REC Mode Capture Mode Scan Mode REC setting Capture setting System setting MIC on Loop REC / 5 Minutes per video clip Motion Detection On Exposure Value Full HD 1080p 30FPS Anti-Shaking ON White Balance Photo pixel Photo quality... -
Page 14: Rec Setting
REC Setting REC Mode Press MENU button to enter the main menu, press< > to do setting and press REC button to confirm and enter. Resolution setting: Use < > button to select suitable resolution, and press REC button to confirm and quit. Loop Record Setting Use <... -
Page 15: Motion Detection
Motion Detection Press < & > to select Motion Detection and press REC button to confirm and enter. Press < > to select On / Off and press REC button to confirm and quit. The system will not start record automatically and only active record by detect movement. Motion Detection: Under power on state, camera will start video record only when detected movement in the picture. -
Page 16: Date Stamp
Date Stamp Press MENU to enter the main menu of the camera, press < > to select time stamp Press REC to confirm and enter to select menu, press < > to select , press REC to save and quit. OFF: Video clip without Date &... -
Page 17: Still Picture Setting
Still Picture Setting Capture Mode Use POWER button to enter capture mode, then press MENU button to enter the main menu, and use < > button to select the option. Use < & > button to select the “ Capture Mode” and press REC button to enter option. Single : Camera will take one picture by pressing the REC button once. -
Page 18: Image Size
Image Size Press < & > to select the image size , press REC to enter the select menu. Press < > to select suitable image size according to personal need, press REC to save and quit . Still Picture Quality Press <... -
Page 19: Sharpness
Sharpness Press < > to select sharpness ,press REC to enter select menu Press < > to select suitable sharpness option, press REC to save and quit. Note: Default setting is Normal. Color Press < > to select the effect of color Press REC to enter setting Press <... -
Page 20: Iso
Press < > to select ISO under capture mode, press REC to confirm and enter option menu. Press < > to select suitable ISO according to different enviroment Press REC to save selection and quit. Remark: Default Setting is Auto Anti-Shaking of Hands Press <... -
Page 21: Date & Time Stamp
Date & Time stamp Press < > to select date stamp ,press REC to enter the option menu. Press < > to select turn on or turn of the date stamp. Press REC to confirm , save and quit. Off: Picture without date display Date : Picture with date display Date / Time : Picture with time and date display Remark: Default setting is Date &... -
Page 22: System Setting
System Setting Press the “ MENU “ button twice to enter the system setting menu. Exposure Setting Press MEMU to enter the current setting ,press menu again to enter system setting menu. Press < > to select exposure Press REC to enter setting menu Select suitable exposure according to different environment Press REC to save setting and quit Remark : Default setting is +0.0... -
Page 23: Date/Time Setting
Press < > to select Press REC to confirm, save and quit Remark: Default setting is auto Date/Time Setting Press < > to select Date/ Time, press REC to correct time and date Press REC to confirm and enter， Press < > to adjust time and date, press REC to confirm ,save and forward to next setting. Press REC to save and quit. -
Page 24: Language
Language Press < > to select language, press REC to setting Press REC to confirm and press< > to select language Press REC to confirm and quit Remark : Default setting is English TV mode output Press < > to select TV mode Press REC to confirm and select , press <... -
Page 25: Frequency
Frequency Press < > to select frequency Press REC to confirm and select ,press < > to select Press REC to confirm setting and quit Remark: The frequency here means Power Frequency. Image Rotation Press < > to select Image Rotation Press REC to confirm and select Off：Normal picture On : 180°... -
Page 26: Screen Saver
Screen Saver 1. Press < > to select Screen Saver Press REC to confirm and select Press REC to confirm , save and quit Off: Screen will not turn OFF 3 minutes : Screen will turn OFF automatically after 3 minutes if without any operation 5minutes : Screen will turn OFF automatically after 5 minutes if without any operation. -
Page 27: Default Setting
Press < > to select format or not , press REC to confirm Cancel: Cancel operation and TF card will not be formatted OK: format the current TF card Press REC to confirm and quit Attention: Data could not be recovered after formatting operation, please be cautious. Default setting Press <... -
Page 28: Version
Version Press < > to select the version ,press REC to confirm and watch the version information. Press REC to quit to the setting menu. Firmware Update Download the firmware package from the official website or local distributers website , the package as below After released: Copy the file “... -
Page 29: Specifications
Specifications ITEM SPEC REMARK Build in storage 32MB TF card 1-32GB Support 32GB SDHC Size 2.7inch resolution 480x240 size 1/3inch CMOS sensor image pixel 2304H x1536V Main Spec Video output port USB/RCA Microphone built in Audio Output port USB/RCA speaker built in Interface USB 2.0... - Page 30 REMARK ITEM SPEC File protected while lower power Full HD1920x1080 30FPS HD1280x720 30FPS HD1280x720 60FPS optional Video record HD1280x720 30FPS Video & QVGA 848x480 60fps Picture 4032x3024 12MP optional 3648 x 2736 10MP Capture 3264 x 2448 Sound record slid show Thumbnail browse support WVGA: 848x480...
- Page 31 Please login www.jeasun.net for more product information. ~ 31 ~...
