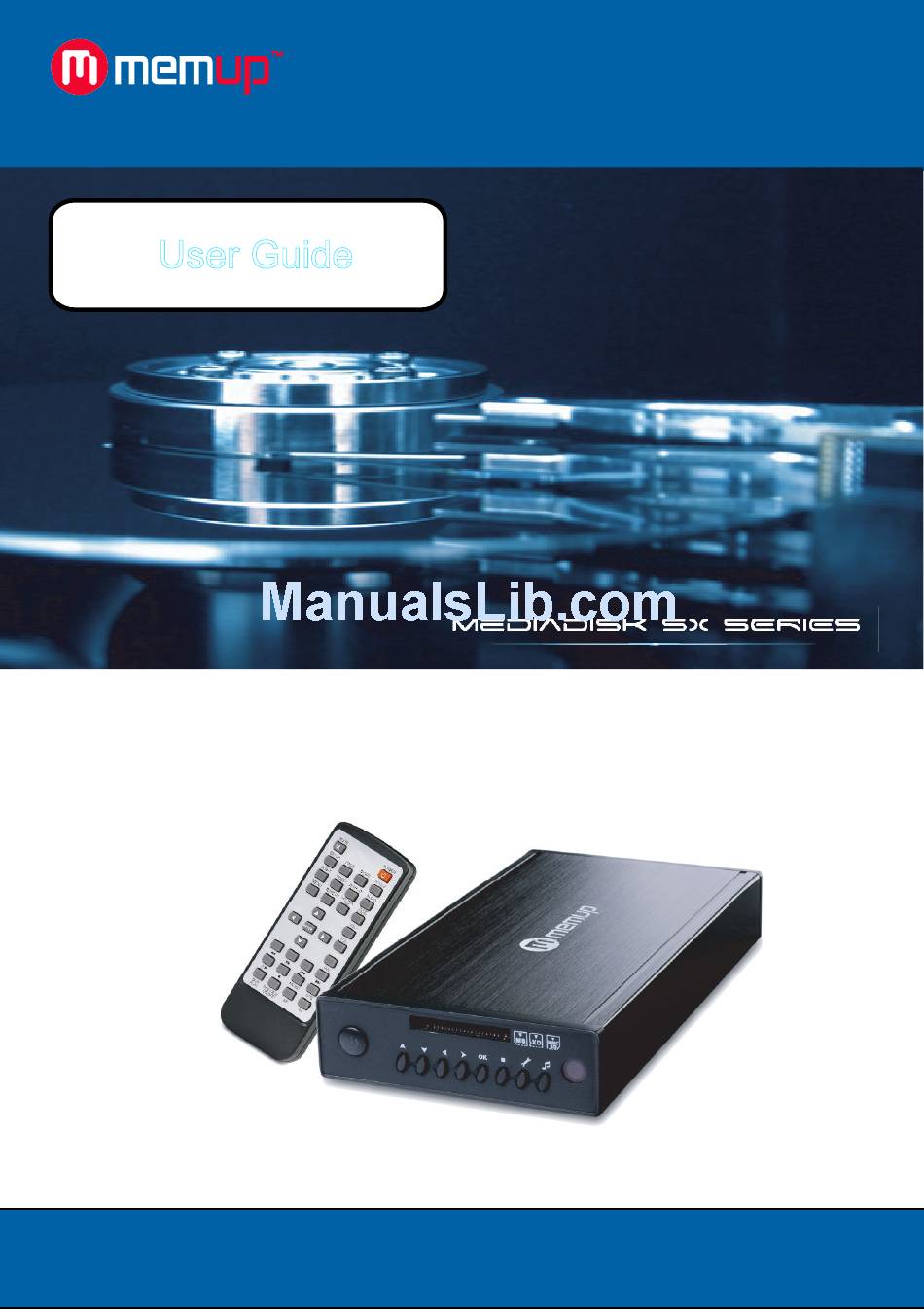

- Page 1 Feel Design User Guide User Guide MEDIADISK MEDIADISK SX Series SX Series Downloaded from www.vandenborre.be...
- Page 2 USER GUIDE 1. SAFETY AND OTHER INSTRUCTIONS 2. PRODUCT CONTENTS & VIEW 3. REMOTE CONTROL 4. ACCESSORIES & CONNECTIONS 5. MENU INTERFACE 6. SETUP MENU 7. SPECIFICATIONS 8. TROUBLESHOOTING Downloaded from www.vandenborre.be...
-
Page 3: Safety And Other Instructions
Mediadisk SX Series is a Home Media Center, with a built-in 2.5“ HDD, can play media files (movies, audios and photos) through TV. SAFETY AND OTHER INSTRUCTIONS Please use SX carefully and read following instructions. >>> Copyright This may cause fire or electric shock. If any... -
Page 4: Giftbox Contents
PRODUCT CONTENTS & VIEW Giftbox contents: 1pc x Mediaplayer 1 pc x AC adapter 1 pc x Remote control 1 pc x Composite RCA cable 1 pc x Scart adapter 1 pc x Component composite YPbPr cable 1 pc x USB cable 1 pc x Paper user manual 1 pc x CD Utilities Product view:... -
Page 5: Remote Control
REMOTE CONTROL FUNCTION POWER Turn unit on/off MUTE Turn sound on/off SETUP Enter setup menu ZOOM Zoom in images MODE Change transition in SlideShow mode. Change pre-equalized modes in music mode. ANGLE Rotates images. View same scene from different angle, if Virtual DVD backup is with multiple angles. SUB-T Activate or not subtitles while video playing. -
Page 6: Accessories & Connections
ACCESSORIES & CONNECTIONS Connection: Press [VIDEO] button on remote control, Change the SX video output mode until complete initialization. Connect ordinary (Composite) AV output to TV VIDEO (Yellow) AUDIO LEFT(White) AUDIO RIGHT(Red) Connect Component output to TV Component cable (YPbPr) is only for picture, make sure to have also connected left (white) and right (red) sound output to the appropriate terminal of your TV or Hi-Fi. -
Page 7: Menu Interface
MENU INTERFACE On menu, four options are available: PHOTO, MUSIC, VIDEO, and FILE. Picture Play Press [ENTER] to browse mode (thumbnails only), press [ENTER] again for normal play. Music Play Press [ENTER] to access music library, press again to enter music EQ and Begin play. Movies Play Press [ENTER] to access movie browse mode. -
Page 8: File Management
Subtitle Operation: Subtitle and video files must be in same folder with same name. In file library, press [SUB-T] to choose subtitle file, then choose video files, press [ENTER] to play. File management Press [ENTER] to access File Library and press again to play selected file. - File copy: In this menu, press a command dialog box will appear. -
Page 9: Setup Menu
SETUP MENU Press SETUP key to access system setup menu. System setup options: Music setup: Set some functions and playing music settings (Repeat, shuffle, …). Auto play: When choose ON, the SX will turn on and auto-play music. Set up some functions and settings for playing movies (Repeat, shuffle, subtitles, …) Movie setup - 7 - Downloaded from www.vandenborre.be... - Page 10 Slideshow setup Set up some functions and settings for playing slideshow (Repeat, shuffle, …). Preferences setup Set up some SX functions and settings (TV configuration, …). OSD language: Switch the language of Screen display - 8 - Downloaded from www.vandenborre.be...
-
Page 11: Specifications
SPECIFICATIONS CONTENT FORMAT SUPPORTED: Video: MPEG1/2/MPEG4, XVID, DIVX, VCD, DVD files Format: AVI / MPG / MPEG / DAT / VOB Photos: JPEG Audio: MP3 / WMA / AAC / AC3 Memory card supported: SD / MMC / MS / XD (FAT16 or FAT32) Subtitles: SRT, SSA, SMI VIDEO OUTPUT SPECIFICATION... -
Page 12: Troubleshooting
SX chipset can’t read some files, even some firmware couldn’t correct, reading files are mentioned on giftbox and in “specifications” part. Some will be added and available in www.memup.com 5. I copied files but I can’t see them in the Mediadisk SX? Make sure your HDD is formatted in FAT32 and not NTFS.
