You can rely on Defy. To simplify

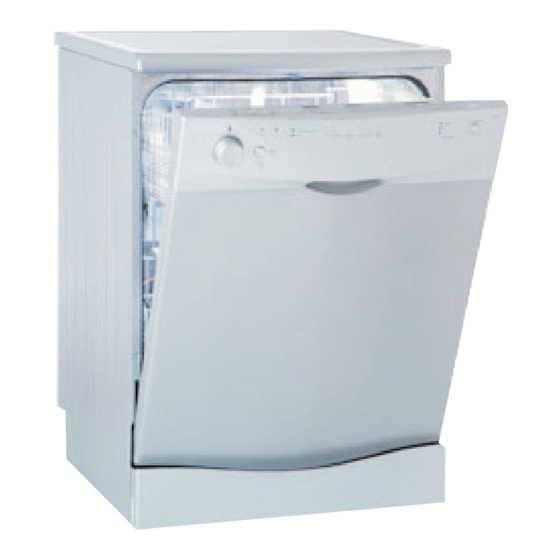

DEFY DISHMAID 5
DEFY DISHMAID 4
Two different dishwashers
are described in this manual.
Please identify your model from the
description on the control panel and
read only the relevant instructions.
www.defy.co.za
OWNER’S
MANUAL
Page
Index
2
Dear customer.
2
Before use.
2
2
2
3
4
5
5
6
Water softener.
7
Detergent.
8
8
11
Cleaning.
Dishmaid 5
Operation.
12
13
Dishmaid 4
14
Operation.
15
Programme chart.
16
Trouble shooting.
17
Service Centres.
17
Warranty.
18
1
Advertisement
Table of Contents
Related Manuals for Defy dishmaid 5
Summary of Contents for Defy dishmaid 5
- Page 1 OWNER’S MANUAL You can rely on Defy. To simplify Page Index Dear customer. Before use. Electrical connection. Water connection. Drain requirements. General precautions The control panel. Interior features. Technical specifications. Water softener. Detergent. Rinse aid. Loading. Cleaning. Dishmaid 5 DEFY DISHMAID 5 Operation.
- Page 2 If the power cord should ever need that you may gain the maximum benefit replacing, use only a genuine cord available from it. from the nearest Defy Service Centre. Store this book in a safe place for future The machine must be earthed and the reference.
- Page 3 General precautions Children The door of the machine has been designed Never allow children to play with the to support the weight of a fully loaded lower dishwasher. Detergents contain irritants rack. Never place any other load on the and abrasives which could affect the door as the machine may then tip forwards.
- Page 4 The control panel Dishmaid 5 SALT INDICATOR ON / OFF INDICATOR LIGHT PROGRESS PROGRAMME INDICATOR LIGHTS PROGRAMME GUIDE SELECTOR KNOB ON / OFF BUTTON START STOP BUTTON DOOR HANDLE Dishmaid 4 SALT INDICATOR PROGRESS INDICATOR LIGHTS PROGRAMME ON/OFF PROGRAMME GUIDE...
- Page 5 ALL MODELS SOUND LEVELS Capacity (place settings): Defy Dishmaid 4: 54db. Dimensions (mm): 889H x 644W x 661D Maximum load: 2200W Defy Dishmaid 5: 51db. Heater: 2040W Drain pump: Wash pump: 125W Water Pressure Min/Max: 0.3 Bar - 10.0 Bar.
- Page 6 Salt container Special salts are used as a water softening agent in dishwashers The dishwasher requires lime free water for optimum operation. The water supply in South Africa varies considerably. Some users have access to borehole water only, while others are supplied from reservoirs or dams.
- Page 7 Detergent Only use detergents specifically intended for dishwashers Adding detergent The detergent and rinse aid dispensers are on the inside of the door. If the dishwasher is considerably full and the dishes are relatively dirty, fill the main container ( ) up to the 25cm³...
- Page 8 Rinse aid Only use rinse aid specifically intended for dishwashers Rinse aid prevents water and calcium streaking on dishes and speeds up the drying process. It is advisable therefore to always ensure that there is an adequate amount of rinse aid in the dispenser. You can adjust the amount of rinse aid released during a programme by turning the dispenser regulator ( The regulator level may be set between 1 (minimum)
- Page 9 Loading The dishwasher has a twelve place setting capacity There are three separate baskets in the dishwasher. 1 The upper basket is used for cups, saucers, glasses and smaller dishes. The upper basket has glass holders which may be lifted and then folded to accommodate larger items.
- Page 10 The adjustment method varies from model to model and you should check which method is pertinent to your machine. Defy Dishmaid 4 and Dishmaid 5 Release the latches on both the right and left tracks by opening them sideways.
- Page 11 Cleaning Always disconnect the appliance from the electrical supply before cleaning it Cleaning the cabinet Wipe up any detergent, softener and other spills as they occur with a soft damp cloth. Periodically clean the cabinet, the inside of the door and door gasket with a damp warm soapy cloth, rinse and dry.
- Page 12 Operation Defy Dishmaid 5 Progress indicator lights Operation Open the door of the machine. Progress of the wash cycle may be Load the dirty dishes into the baskets. monitored by observing the progress Check that the upper and lower spray indicator lights on the control panel.
- Page 13 Programme chart Defy Dishmaid 5 Programme symbols and temperatures Pre-wash 30 Minute Normal Intensive 35°C 50°C 60°C 70°C Pre-wash to Lightly soiled Most Soiled Heavily rinse and dishes economic dishes soiled dishes loosen programme requiring residue - for normally Hot pre-wash...
- Page 14 Operation Defy Dishmaid 4 Progress indicator lights Operation Open the door of the machine. Progress of the wash cycle may be Load the dirty dishes into the baskets. monitored by observing the progress Check that the upper and lower spray indicator lights on the control panel.
-
Page 15: Cancelling A Programme
Programme chart Defy Dishmaid 4 Programme symbols and temperatures Pre-wash Normal Intensive 50°C 60°C 70°C Pre-wash to Most Soiled Heavily rinse and economic dishes soiled dishes loosen residue programme requiring - awaiting full for normally Hot pre-wash load - then... - Page 16 Have any of the hoses been twisted or kinked? If you have followed the instructions and still have a problem, contact the nearest DEFY SERVICE CENTRE. They will be able to advise you on any aspect of the machine or send a qualified...
- Page 17 Service Centres If you have followed the instructions and still have a problem, contact the nearest Defy Service Centre. They will be able to advise you on any aspect of the product or send a qualified technician to repair it.
- Page 18 Warranty This certificate is issued by DEFY APPLIANCES LIMITED manufacturers of Defy and Ocean prod- ucts, hereinafter the Company, to the original purchaser only, of the appliance described on the certificate and shall constitute the only warranty given in respect of this appliance.
Need help?
Do you have a question about the dishmaid 5 and is the answer not in the manual?
Questions and answers

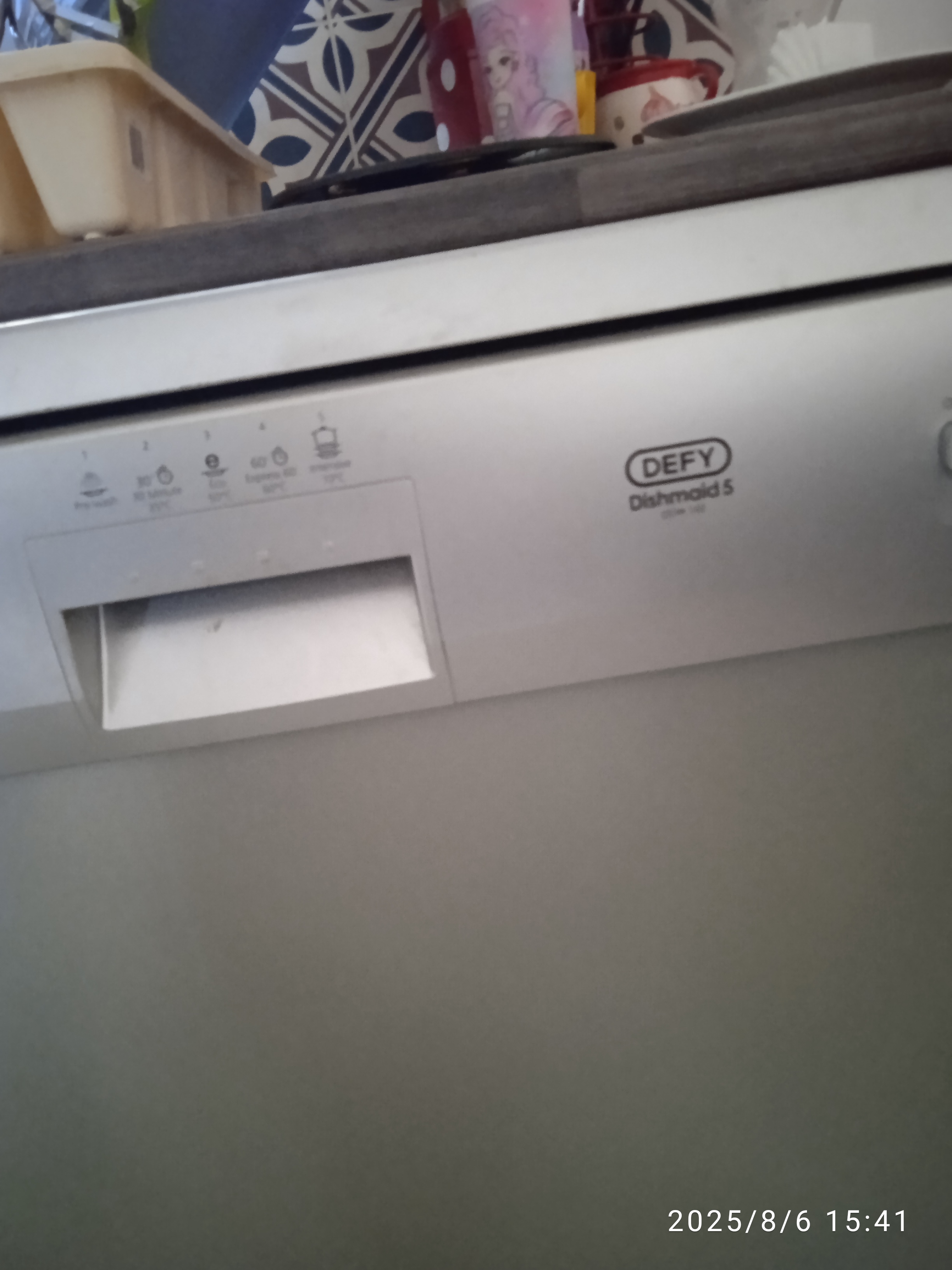

How to manually Drain the defy dishmaid5
