Summary of Contents for Microlink ML-891X Series

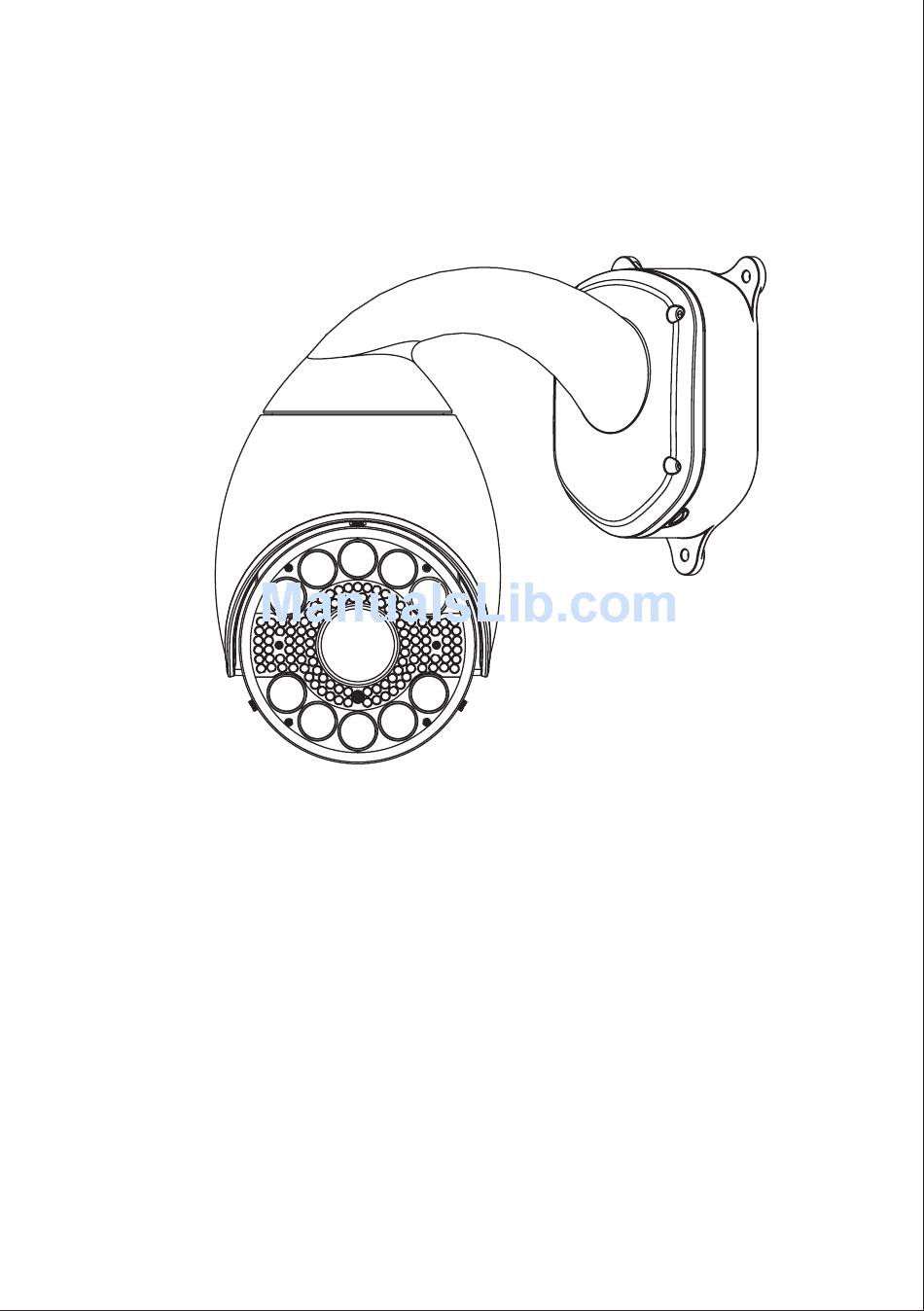

- Page 1 8891X series Infrared High Speed Dome Camera （Fourth-generation / IV） Operating manual Version: V2.0...
- Page 2 Infrared Intelligent High Speed Dome Camera Operating Manual copyright statement This copyright belongs to our company. Without permission，any units or individuals shall not in any form or any means to copy or plagiarize part or the whole of the book content. Our company follows the strategy of sustainable development.
-
Page 3: Table Of Contents
Infrared Intelligent High Speed Dome Camera Operating Manual Contents 1．Installation and debugging of infrared high speed dome camera 1 .1．Infrared high-speed component name 1.2．Istalling hole dimension figure 1. 3．Installation and debugging method 2．Infrared high-speed dome camera setting and operation 2.1．Technology parameter table 2.2．Common functions glossary 2.3．Address, protocol, baud rate setting 2.4．Address dip table... -
Page 4: Installation And Debugging Of Infrared High Speed Dome Camera
Infrared Intelligent High Speed Dome Camera Operating Manual 1．Installation and debugging of Infrared High Speed Dome Camera 1.1．Infrared high-speed component name 1.2．Installing hole size figure Whole set size (mm) Installing hole size (mm) -
Page 5: Installation And Debugging Method
Infrared Intelligent High Speed Dome Camera Operating Manual 1.3． Installation and debugging 1.3.1、Take out the main dome, wall bracket, wall boxing and other components. 1.3.2、Paste the wall boxing to the wall, according to the wall boxing size to drill corresponding hole, then install the expansion bolts. -
Page 6: Infrared High-Speed Dome Camera Setting And Operation
Infrared Intelligent High Speed Dome Camera Operating Manual 2、infrared high-speed dome camera setting and operation 2.1．technology parameter table Power Supply AC220V/50Hz or AC110V/60Hz Video Output 1.0V p-p 75Ω Communication RS485 Dome Address 1-255(Support software rewriting address) Communication Protocol Pelco-D/Pelco-P / SANTACHI 650 / FACTORY Baud Rate 2400/4800/9600/19200 bps Horizontal Rotation Speed... -
Page 7: Address, Protocol, Baud Rate Setting
Infrared Intelligent High Speed Dome Camera Operating Manual Power-off memory： When the machine restart after power failure, it will automatically revert to the last stop position or the last working state. High zoom low speed： with manual zoom lens value increases，the manual control speed in proportion to slow down. -
Page 8: Address Dip Table
Infrared Intelligent High Speed Dome Camera Operating Manual 2.4．Address DIP table（1 means ON，0 means OFF） Binary code Address Binary code Binary code Address Binary code Binary code Address... -
Page 9: Control Equipment
Infrared Intelligent High Speed Dome Camera Operating Manual Binary code Address Binary code Address Binary code Address Binary code Address （Software modify） 2.5 Control equipment According to users’ need, below are the equipments normally used： PC（Video capture card） Control borad tester（specially for project）... -
Page 10: Boot Initialization
Infrared Intelligent High Speed Dome Camera Operating Manual 2.6．Boot initialization Connect the video line and 485 controlling line to the monitor or DVR, ensuring that the connection is right then catch 220V power to the power case of camera. The ir high speed dome camera outpour signal to the screen and start searching varity of collocating information, about after 10 seconds, the screen will show the list of the camera’s initialization, as picture 1. -
Page 11: Automatic Operation Setting >Menu Operation
Infrared Intelligent High Speed Dome Camera Operating Manual Picture 3 set preset: Call presets： run the preseted presets in advance quickly and precisely. And for easy operation, we can call the presets to realize some common use functions. As these calling commands will be occupied by speedy functions, so cant be called solely. -
Page 12: Preset Point >Setting
Infrared Intelligent High Speed Dome Camera Operating Manual Apply explanation： 1.After entering the menu, cursor flicker position is the current chosen menu item, operate the joystick up and down can move the cursor to choose other items. Press “iris+” or “zoom+”, enter submenu, press “iris-”... -
Page 13: Left-Right Scan> Setting
Infrared Intelligent High Speed Dome Camera Operating Manual Application explain: 1. Setting preset point also can be in standby state, just change to set preset point mode, then type setting preset point Numbers, confirm, the system can display "preset point has save". 2. -
Page 14: Pattern Scan> Setting
Infrared Intelligent High Speed Dome Camera Operating Manual Detail Operation: 1．CRUISE SCAN Number: press“IRIS +”to enter and choose scan nubmer,control lever up and down to choose scan number group1-4. 2.Title setting: press“IRIS +”to edit title, control lever up and down to choose number,letter and other characters.left and right to edit position and modify characters,press“IRIS +”to save after edit then return. -
Page 15: Time Action > Setting
Infrared Intelligent High Speed Dome Camera Operating Manual Detail Operation: 1.PATTERN SCAN Number: press“IRIS +”to enter and choose scan nubmer,control lever up and down to choose scan number group1-4. 2.Title setting: press“IRIS +”to edit title, control lever up and down to choose number, letter and other characters.left and right to edit position and modify characters, press“IRIS +”to save after edit then return. -
Page 16: Pantilt Setting > Setting
Infrared Intelligent High Speed Dome Camera Operating Manual Picture 12<WAIT ACTION>setting: Detail operations： 1．Wait time： click “IRIS+” to enter and set wait time，move joystick up or down to set wait time from 1 to 255seconds，default time is 5s. for example it is 10s, then dome camera will run action if no operation in 10s. -
Page 17: Lens Parameters > Setting
Infrared Intelligent High Speed Dome Camera Operating Manual 4、<CAMERA SETTING>menu operation Enter<CAMERA SETTING>menu instructions：about the camera function inside，different camera have different functions, only small difference。take SONY EX480CP for example below 。 type the number in standby model “preview+95+enter”，move the cursor to<CAMERA SETTING>,click “iris+” to enter submenu. -
Page 18: White Balance> Setting
Infrared Intelligent High Speed Dome Camera Operating Manual Picture16< EXPOSURE >setting: MODE Details operation： click“IRIS+”to enter setting，move the joystick up or down to choose AUTO、 MANUAL 、 1．Exposure mode： AGC LEVEL、SHUTTER、IRIS. in “AUTO” mode ,IRIS LEVEL、SHUTTER SPEED、 AGC LEVEL、BRIGHT LEVEL below can not be changed. but in “MANUAL” mode , they can be changed on request；... -
Page 19: Privacy Mask > Setting
Infrared Intelligent High Speed Dome Camera Operating Manual Picture18< BACKLIGHT >setting: MODE Operations： 1．Backlight mode： click “IRIS+” to enter ,move the joystick up or down to open or close backlight mode； 4.5． PRIVACY MASK > setting < move the cursor to<PRIVACY>，click“IRIS+” to enter submenu. Show as Picture19： Picture19<... -
Page 20: Display Setting>Menu
Infrared Intelligent High Speed Dome Camera Operating Manual 3．Mask active： click“IRIS+”to enter. Move the joystick to choose “open” or “close” the privacy masking； 4．Show next mask： when click“IRIS+”，the dome will operate to next privacy masking at this moment you can change this privacy masking. if you don’t setup next privacy masking ,it will show “this privacy is not set”；... - Page 21 Infrared Intelligent High Speed Dome Camera Operating Manual address via move the rocker up and down. After choose please press”Iris+”for preserving and return. At this time you also need to do a same change for address on control device, otherwise maybe you can’t go on operating. 2.Camera name: press “IRIS+”to enter the name set interface, shaking the rocker up or down to choose figure, character and so on;...
-
Page 22: Alarm Setting> Menu Operating
Infrared Intelligent High Speed Dome Camera Operating Manual 7.<ALARM SETTING> menu operating Entry <ALARM SETTING> menu In the standby situation, calling“95”,it will entry the main Manu. Move the cursor to <ALARM SETTING>,press “IRIS+”to entry the submenu.Ref picture 28： picture 28 <ALARM>... -
Page 23: Simple Troubleshooting Table
Infrared Intelligent High Speed Dome Camera Operating Manual Detail operations： 1．WT led switch： click “IRIS+” to set WT led switch. Move joystick up or down to choose “open” or “close”. If set “open”, WT led switch automatically according to zoom. If set “close”, WT led open together；... - Page 24 Before using the camera,please read the factory settings of the user manual carefully: Power AC200V/50HZ Address1 Protocol PELCO-D Baut Rate 2400bps...
