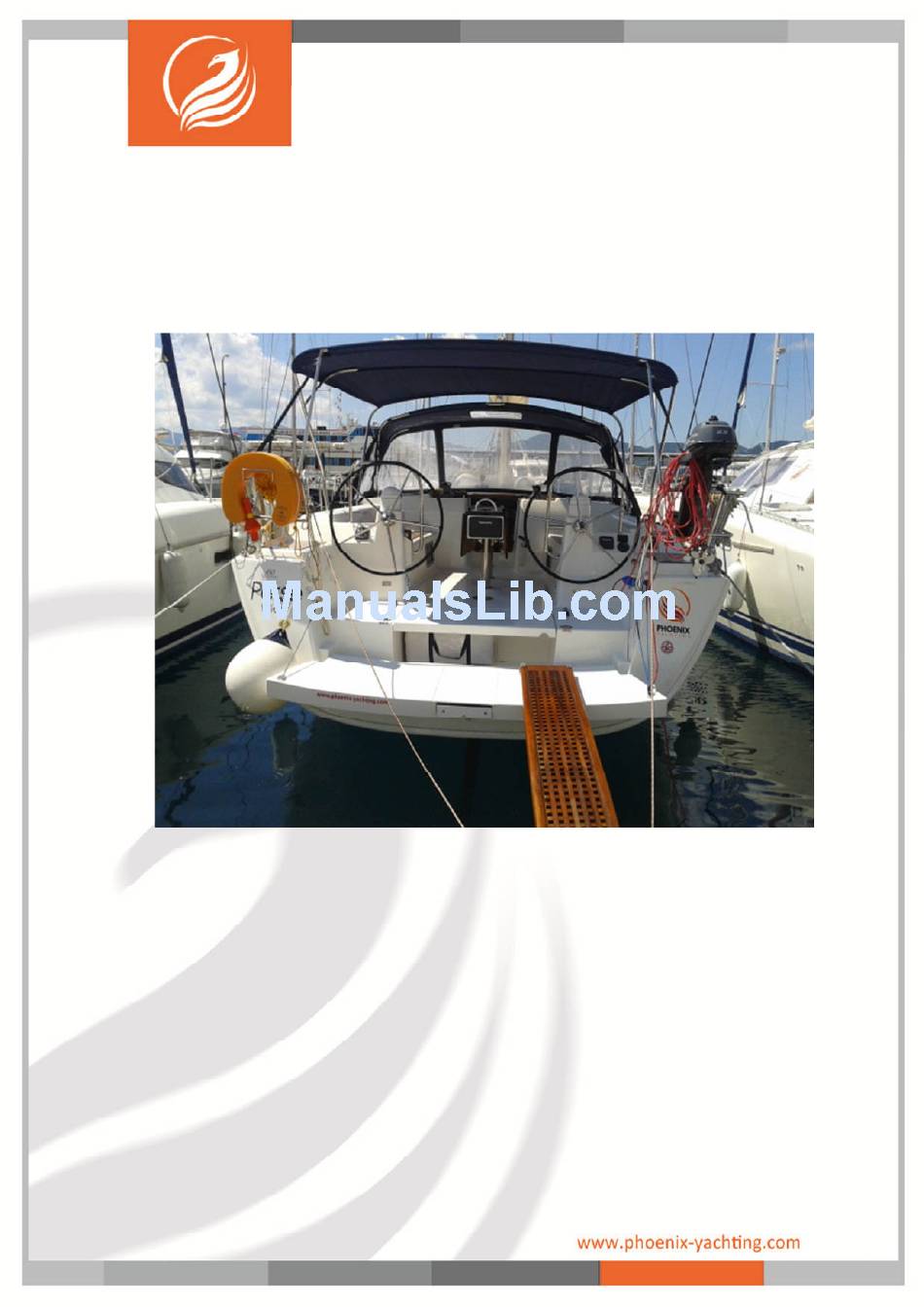

Perse
Dufour 450, built 2013
Technical Information
C a b i n s : 4
H e a d s : 2
M a x . P a x : 8
L . O . A . : 1 3 , 5 0 m
B e a m : 4 , 3 4 m
D r a f t : 2 , 2 0 m
E n g i n e : V o l v o 5 5 H P
W a t e r t a n k : 5 7 0 l
F u e l t a n k : 2 5 0 l
B a t t e n e d M a i n s a i l : 4 3 , 5 m ² ( 2 0 1 3 )
G e n o a : 5 5 m ² ( 2 0 1 3 )
S t e e r i n g w h e e l s : 2
G e n n a k e r
Advertisement
Table of Contents
Summary of Contents for Phoenix Dufour 450 Perse
-
Page 1: Technical Information
Perse Dufour 450, built 2013 Technical Information C a b i n s : 4 H e a d s : 2 M a x . P a x : 8 L . O . A . : 1 3 , 5 0 m B e a m : 4 , 3 4 m D r a f t : 2 , 2 0 m E n g i n e : V o l v o 5 5 H P... - Page 2 Bowthruster Transmitter, depth-sounder Bowthruster fuse Sea cock wash-bowl, toilet Sea cock shower Water heater Gas valve First aid kit Water tank switch Windlass main fuse behind panel Sea cock, shower and toilet, waste tank battery main switch Sea cock cooling water for engine and fuel emergency stop Chart plotter outside...
-
Page 3: Table Of Contents
Contents 1 Electro-Panel 6 Anchor 1.1 Panel 6.1 Anchor locker 1.2 Panel fuses + shore power display 6.2 Electric windlass 1.3 Windlass fuse 7 Deck & Dinghy 1.4 Inverter / battery main switch 7.1 Gangway (with pin) 2 Valves 7.2 Cockpit shower 2.1 Diesel valve emergency stop 7.3 Dinghy 2.2 Gas valve for cooker... -
Page 4: Panel
1.1 Panel While doing the check in we will give you the basic explanations (main important functions) of the instruments. Panel switches are clearly labeled. 1.2 Main panel fuses / shore power supply If turned on, the LEDs next to the switch are shining and indicate that the circuit is powered with 12 / 220 Volts. -
Page 5: Windlass Fuse
1.3 windlass fuse In order to use the automatic windlass you need to switch on the fuse behind the panel. If the load is too high for the windlass the fuse can pop out. In this case you need to turn it on again and proceed with the maneuver. -
Page 6: Gas Valve Outside
2.3 gas valve outside By turning the switch you can open or close the gas valve. Always keep the valve closed if kitchen is not used. All boats are equipped with 2 gas bottles. If you need to change gas bottles make sure to place the thread exact. -
Page 7: Waste Tank
The pump will take about 1 min in order to build up enough pressure in the hose again. 4.1 Engine room The Phoenix Team services the engines of all boats on a regular basis. In order to provide a safe and fail free use we recommend you do a short visual check every day before you start your trip. - Page 8 4.2 engine Start 1.) place throttle bar into neutral gear position by pushing the button on the bar inside (Note: the button will stay inside as long as the gear is in neutral position). 1.1 now you have to push the throttle bar forward (still in neutral gear position = Button pushed inside) 2.) push the “power”...
-
Page 9: Chartplotter Outside
5.1 outside Instruments The basic functions of the chart plotter, autopilot, wind and speed will be explained during the Check-In at the base. For further details on the different settings we recommend to read the user guide Raymarine ST 70 Tridata contact the manufacturer. -
Page 10: Anchor Locker
6.1 anchor locker + 6.2 windlass We recommend dropping the anchor manually. This is due the fact that while driving the boat backwards the speed of the boat is greater than the speed with which the chain is automatically dropped down. Always attach the locker door with a rope to the reeling to prevent injuries. -
Page 11: Dinghy
7.2 shower outside All boats have a shower outside in the cockpit or at the back of the boat. Please always be careful when pulling out the water hose for showering 7.3 + 7.4 Outboard + Dinghy You must only start the outboard engine while in the water! Never start the engine out of the water because this way there is no cooling and therefor engine damage can... -
Page 12: Bilge Pump
8.1 Bilge / Bilge pump The automatic bilge pump is located at the deepest spot on the boat. Usually this is in the saloon under the wooden floor. The manual bilge pump is located outside in the cockpit close to the steering wheel. 9.1 safety equipment Life jackets for every crew member are supplied during the handover of the yacht. - Page 13 Entering Greek islands with the boat is only possible if you have cleared out first. The contained texts, logo, pictures, photographs are the intellectual property of Phoenix Yacht Management GmbH. Phoenix Yacht Management GmbH assumes no responsibility for the accuracy or content of the information presented.
