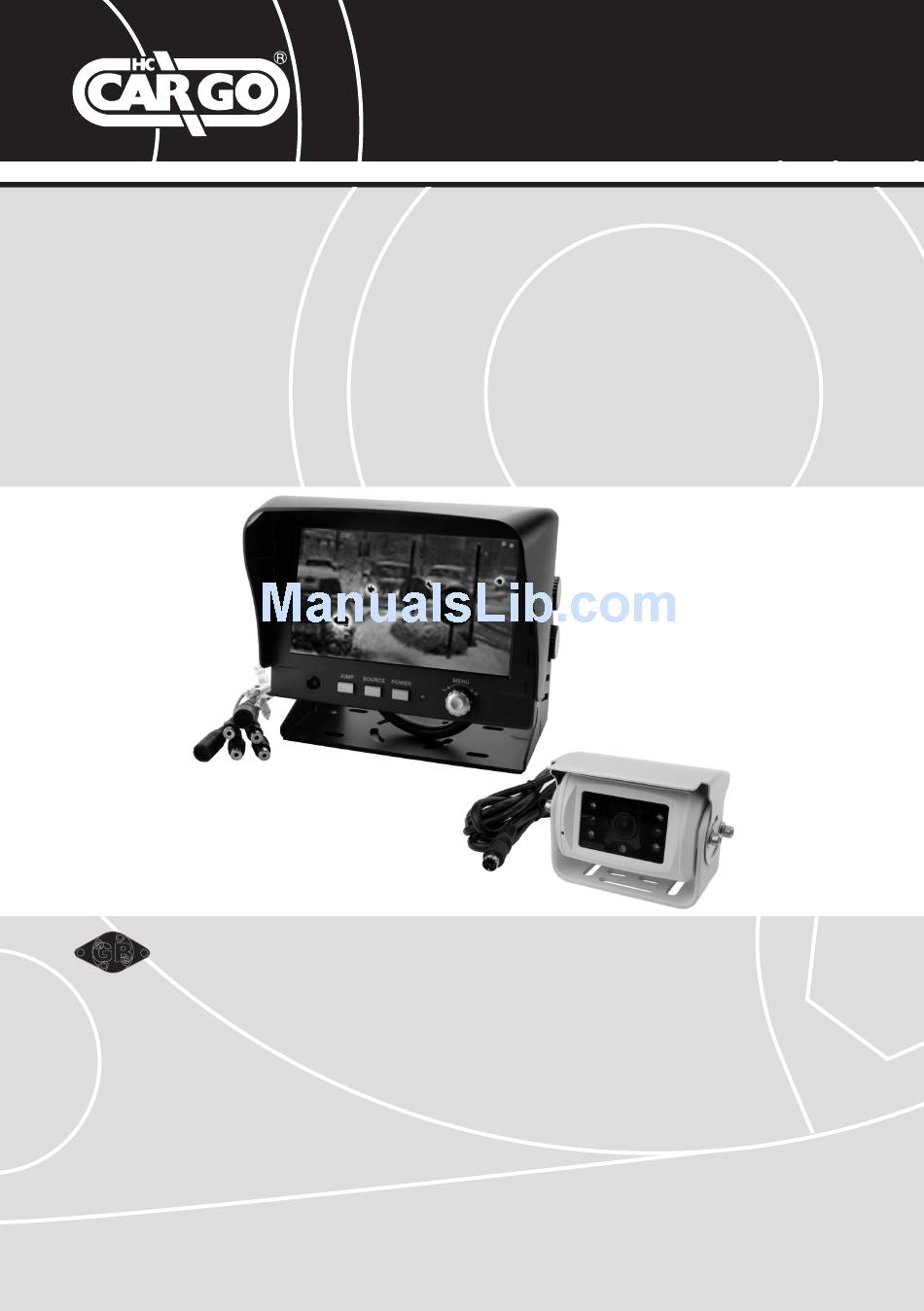

- Page 1 160783 160783 Automotive components since 1963 SUPER 7" 3+1 REAR VIEW CAMERA AND MULTIMEDIA KIT USER MANUAL Vedpak 120UK_Version 2_150909 Vedpak 120UK_Version 2_150909...
- Page 2 160783 Vedpak 120UK_Version 2_150909...
-
Page 3: Table Of Contents
160783 CONTENT: Features ......................4 Installation of monitor ..................4 Signal cable description ...................4 Control cable description..................5 Front panel control ...................6 OSD menu .......................7 Display ......................8 Installation for colour camera .................12 Vehicle installation..................13 Monitor specifications..................14 Camera specifications ..................15 Accessories ....................17 PACKAGE CONTENTS: 7"... -
Page 4: Features
160783 FEATURES: Supports up to 3 CCD Camera inputs (Mini DIN Connector). Extra RCA input for multimedia (VCD, DVD, Game device). Provide 1 Video / 1 Audio signal output. Auto detection for NTSC / PAL System. Signal Trigger for Cam A / Cam B / Cam R / AV View. -
Page 5: Control Cable Description
160783 CONTROL CABLE DESCRIPTION: Cable configuration Don’t connect the red wire (power wire) of this product directly to the battery. Connect the red wire of this product to the ACC of the ignition key switch. Failure to do so may result in permanent damage of the product. -
Page 6: Front Panel Control
160783 FRONT PANEL CONTROL: POWER: Press the POWER button to activate the monitor or to keep the monitor under stand by mode. SOURCE: Press this button to select image between CAM A CAM B CAM R CAM A…….. -
Page 7: Osd Menu
160783 OSD MENU: Press the MENU button to enter the OSD Menu. Turn the MENU button left or right to select the setting you wish to proceed. The colour of the content will turn yellow to identify your selection. Press the MENU button again until the colour of the value turns yellow. - Page 8 160783 SCREEN MENU: This menu set up contains different setting for the TFT LCD. Brightness: Provide adjustment for the overall picture shade and brightness of the TFT display. Setting value from 0 ~ 100. Default value 70. Contrast: Provide adjustment for the contrast level of the TFT display between the light and dark area.
-
Page 9: Display
160783 DISPLAY Menu This menu set up contains the on screen identification and the activation of the distance gauge. Cam Name Select “ON” to show the source of video input title on screen or “OFF” to keep it invisible. Default value is ON. - Page 10 160783 CAMERA Menu This menu set up contains the Camera and Jump setting. CAM A MIRROR Select “ON” to activate the mirror function for CAM A “OFF” for a normal image. Default value is OFF. CAM B MIRROR Select “ON” to activate the mirror function for CAM B or “OFF” for a normal image.
- Page 11 160783 Information This menu set up contains the Exit function and shows the firmware version. Vedpak 120UK_Version 2_150909...
-
Page 12: Installation For Colour Camera
160783 INSTALLATION FOR COLOUR CAMERA INSTALLATION With standard mounting bracket and fasteners included in the package, the camera can be mounted firmly at the required position of the vehicle. Install the camera on the mounted camera bracket using proper fasteners (included in the package). -
Page 13: Vehicle Installation
160783 VEHICLE INSTALLATION: Install camera R (for rear view). Use a measuring tool to mark out the distance behind the vehicle. Adjust the viewing angle of the camera so that the distance gauge shown from the TFT match to the distance behind the vehicle. -
Page 14: Monitor Specifications
160783 MONITOR SPECIFICATIONS: Screen size 7" (Diagonal) 16:9. Active area 154.08 x 86.58 mm. Pixel configuration 0.107 x 0.370. Resolution 1440 x 234. Viewing angle 60°. Power source DC 9.6 V. ~ DC 32 V. Contrast ratio 300:1.* Brightness 450 cd/cm².*... - Page 15 160783 Camera Mirror (M) / Normal (N) adjustment For mirror function - Turn arrow to M. For normal function - Turn arrow to N. Camera Harness: Pin No. Part description Video output Power DC 12 Audio output Normal / mirror...
-
Page 16: Camera Specifications
160783 CAMERA SPECIFICATIONS Pick-up Device 1/3" image sensor interline transfer CCD Image Size 4.82 x 3.64 mm. Elements NTSC / EIA: 510 (H) x 492(V) PAL / CCIR: 500 (H) x 582(V) Horizontal Resolution More than 380 TV lines Shutter Control NTSC 1/60-1/100.000 sec. -
Page 17: Accessories
160783 ACCESSORIES: 160610 Camera, O.D. 30 mm. L. 70 mm. Wide view angle, 130° diagonal. 160796 Camera w/ infrared LED’s for night vision. Wide view angle, 112° horizontal, 91° vertical, 156° diagonal. 170942 Magnet w/ metalbase for cameras. 160790 Camera, O.D. 21 mm. L. 40 mm. - Page 18 160783 Vedpak 120UK_Version 2_150909...
- Page 19 160783 Vedpak 120UK_Version 2_150909...
- Page 20 160783 Automotive components since 1963 Vedpak 120UK_Version 2_150909 Vedpak 120UK_Version 2_150909...
