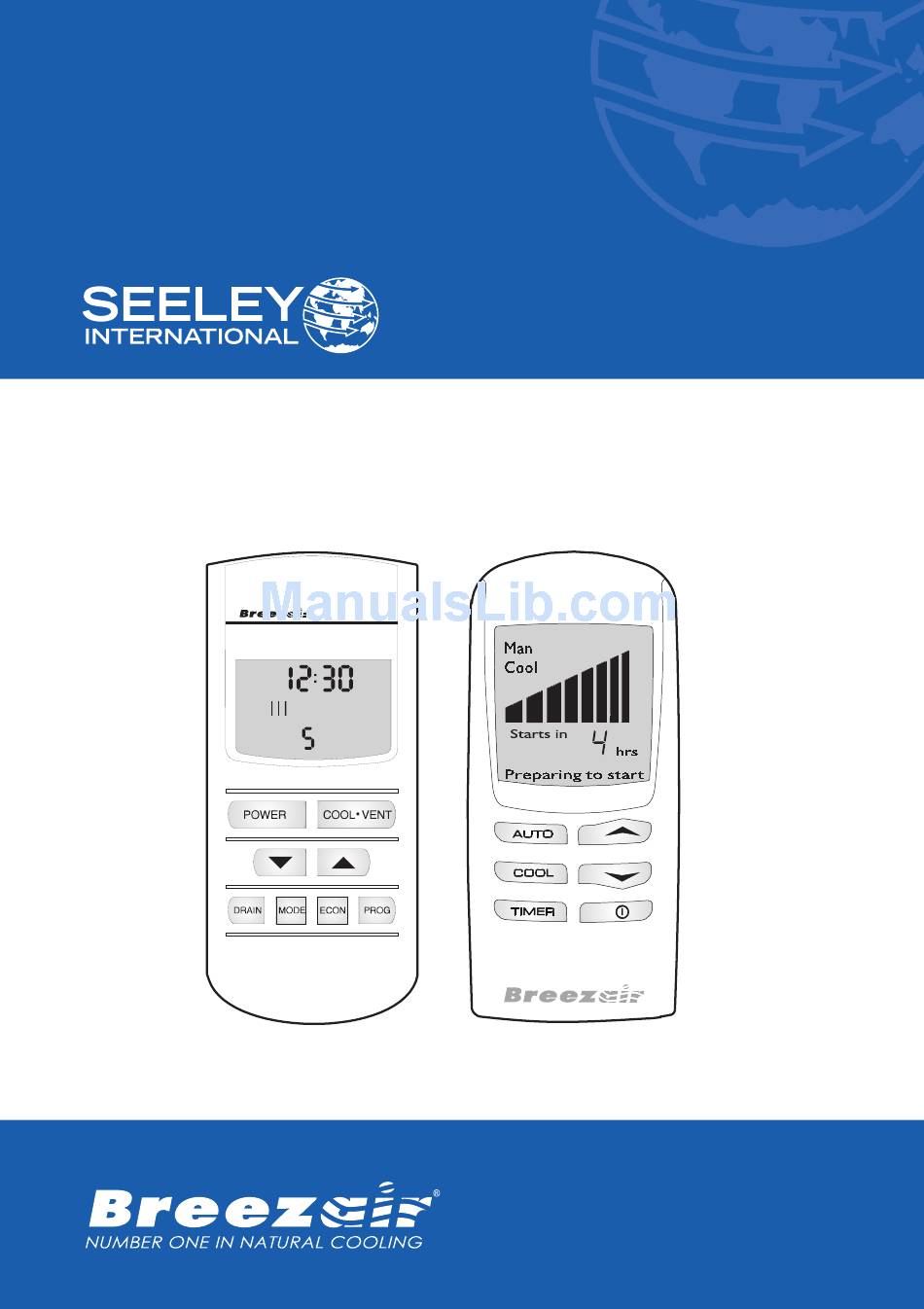

- Page 1 OWNER’S MANUAL Evaporative Cooler REMOTE CONTROL AUTO COOL SPEED ECONOMY ILL239-D ILL1140-A (English) (EXH, EZH)
-
Page 2: Table Of Contents
Introduction............4 Remote Thermostat Control ........5 Wall Mounted Thermostat Control .......11 Bleed System............14 Drain Valve ............14 Power Outages............15 Maintenance............15 Routine Maintenance Service Schedule Checklist..............17 Troubleshooting...........18 Service & Warranty ..........20 Evaporative Cooler... - Page 3 REMOTE CONTROL AUTO COOL SPEED ECONOMY ILL239-D ILL1140-A Remote Thermostat Control Wall Mounted Thermostat Control (remote control) (wall control) SEELEY INTERNATIONAL – OWNER’S MANUAL...
-
Page 4: Introduction
® Breezair coolers are fitted with either a Wall Important Notes! Mounted Thermostat Control or a Remote In areas where temperatures can cause Thermostat Control. -
Page 5: Remote Thermostat Control
REMOTE THERMOSTAT CONTROL Setting the Clock Manual Mode Set the clock on the remote control With the remote control ON, press the before proceeding with any other button until MANUAL is shown in the top left programming. corner of the display. The clock can only be set with the MANUAL COOL... - Page 6 REMOTE THERMOSTAT CONTROL cont. Auto Mode Auto Timer Mode The remote control contains a thermostat. In AUTO TIMER mode can be selected by AUTO mode the cooler is controlled using the button. Once the AUTO TIMER mode is selected the cooler will automatically, based on your pre- selected comfort level.
- Page 7 REMOTE THERMOSTAT CONTROL cont. (5) Setting the comfort level (2) Setting the ON time minutes Press the button. The minutes Press the button and the comfort level number (1 to 10) displayed will start flashing. displayed will start flashing and the word ON will appear on the screen.
- Page 8 REMOTE THERMOSTAT CONTROL cont. Economy Mode Pre-cool Mode Selecting the ECONOMY mode limits the Your remote control is designed to allow maximum available cooling or ventilation and for the saturation of the cooler’s cooling reduces the power used by up to 20%. The pads before the fan is switched on.
- Page 9 The high salinity setting is designed to operate the cooler at a maximum safe salinity level to ® maintain a normal working life. It also results in The Breezair remote control is fitted ® a minimum usage of water . with the...
- Page 10 REMOTE THERMOSTAT CONTROL cont. Batteries Dip Switches There are 2 rows of DIP switches located If the batteries are installed when the display is completely blank, the display will remain under the battery cover on the remote blank for 5 seconds. After 5 seconds the control.
-
Page 11: Wall Mounted Thermostat Control
WALL MOUNTED THERMOSTAT CONTROL Turning the Cooler On The wall control can be switched on and off by pressing the button. The wall control will remember the previous setting it was in when the cooler was last used. Preparing to Start ILL1123-B Once COOL or VENT has been selected, the wall control will maintain a constant fan speed. - Page 12 WALL MOUNTED THERMOSTAT CONTROL cont. Delayed Start or Stop Programming in auto mode The cooler can be programmed to start at a (1)..Press the button. specific time or stop at a specific time. (2)..Press the button until AUTO is displayed. The delayed start time can only be (3)..
- Page 13 WALL MOUNTED THERMOSTAT CONTROL cont. Service Mode If ‘02’ is displayed (1)..Check that the water supply tap to the When a fault has been recognised by the cooler is turned on. wall control the word SERVICE flashes (2)..Check that your local water authority on the screen.
-
Page 14: Bleed System
WALL MOUNTED THERMOSTAT CONTROL cont. To change the salinity control setting use the Your cooler is fitted with one of two water management systems designed to control following sequence: the water salinity and optimise the life of (1)..With the wall control turned OFF, hold the pads in your cooler. -
Page 15: Power Outages
If the power goes off for more suggest that any maintenance or checks be than 5 seconds the cooler will carried out by an authorised Breezair dealer automatically turn itself off. That is, once or service agent. Climbing onto the roof can... - Page 16 MAINTENANCE cont. Pre-season (1)...Turn your main switchboard power off. (2)...Remove the pad frames as shown in the next column. (3)...Ensure the power is off at the isolating switch inside the cooler. (4)...Gently wash the pad frames to remove any dust build up during the ILL950-C winter.
-
Page 17: Routine Maintenance Service Schedule Checklist
ROUTINE MAINTENANCE SERVICE SCHEDULE CHECKLIST Service Item Check/adjust Clean Replace 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 Components Chillcel pads (replace as required) Pad retaining washers / pins Base / water reservoir Pump filter basket Water probes Water distribution system... -
Page 18: Troubleshooting
TROUBLE SHOOTING SYMPTOM CAUSE ACTION Unpleasant odour. Odour from the new Allow time to condition pads. by running the cooler. Inadequate cooling. Dry pads. Ensure the water supply is turned on. Then check the water flow to the pads. Insufficient exhaust Ensure sufficient openings for openings. - Page 19 WALL CONTROL DISPLAYS “SERVICE” If on initial start up the word “Service” appears on the controller and by pushing the on/off button nothing happens. Then you will need to establish communication between the wall control and the electronic controller. Simply push and hold the “DOWN” button for approx. 10 seconds or until the word “Service”...
-
Page 20: Service & Warranty
When you contact your Dealer regarding service or warranty please quote the cooler model number and serial number as shown below. Affix serial & model number stic ker here It is the policy of Seeley International to introduce continual product improvement. Accordingly, specifications are subject to change without notice.
