CAUTION
• Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
• This User Manual includes detailed usage instructions for your product.
Please read this manual thoroughly.
• Figures and illustrations in this User Manual are provided for reference only and
may differ from actual equipment appearance.
Equipment design and specifications may be changed without notice.

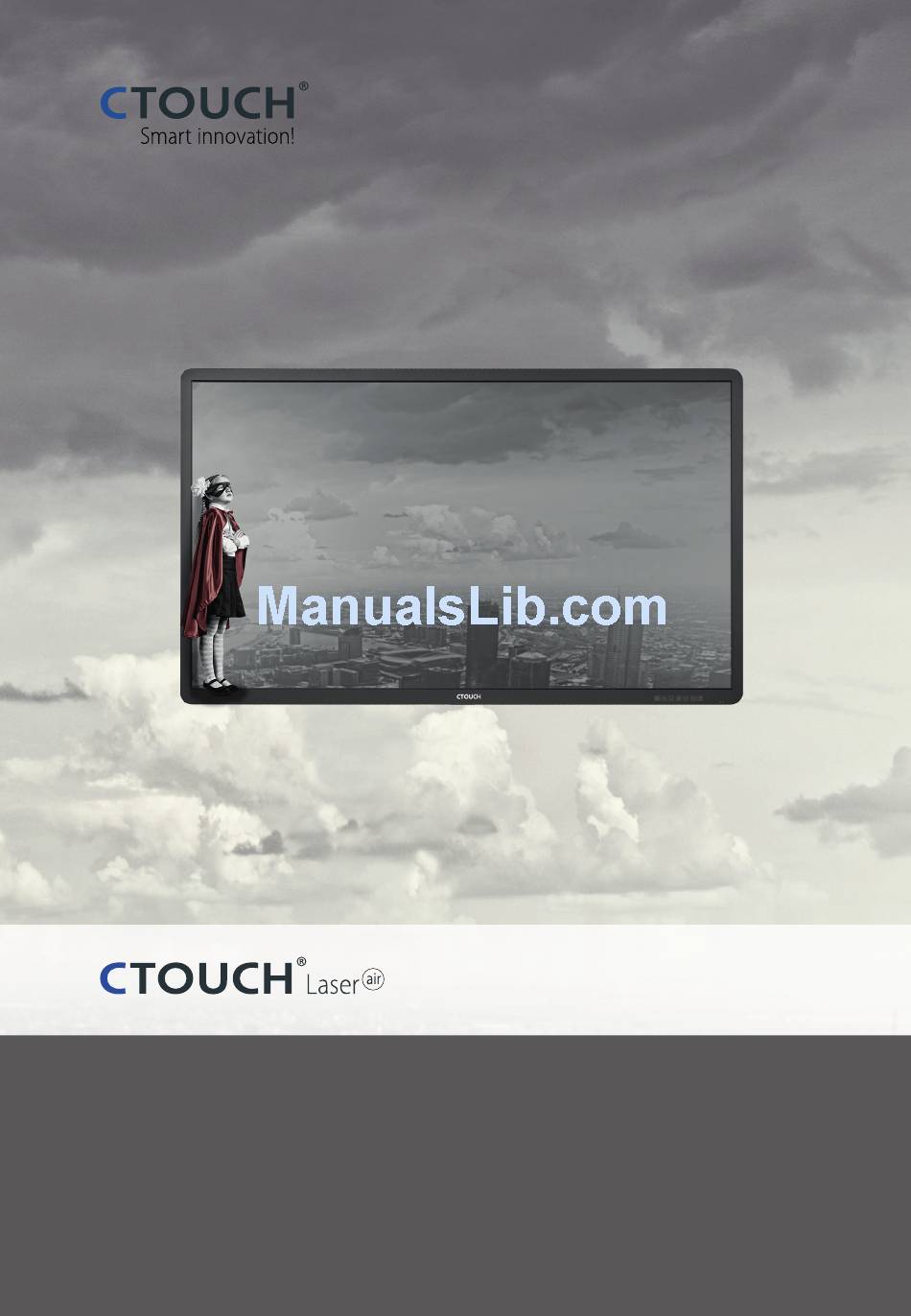

User Manual
Function
is key
ver 4.0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ctouch laser air
Summary of Contents for Ctouch laser air
- Page 1 User Manual Function is key CAUTION • Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. • This User Manual includes detailed usage instructions for your product. Please read this manual thoroughly. •...
-
Page 2: Table Of Contents
Identification of Controls Remote Control Connections Basic Operations Menu List Home Page Overview System Settings Network Settings Using USB Multi Media Player Troubleshooting Specifications Note: A digital PDF manual to zoom in for better viewing can be found at: www.ctouch.eu... -
Page 3: Important Information
Do not let children climb on furniture to reach the CTOUCH interactive display or its controls. CTOUCH is not necessarily responsible nor obligate providing support for the App operation on the inside Android OS. Warning: To prevent the spread of fire, keep candles or... -
Page 4: Important Safety Precautions
For the same reason, do not spill water or liquid within your CTOUCH interactive display on the product. This label is located on the back of your CTOUCH interactive display. - Page 5 Never attempt to move the CTOUCH interactive display unless the AC power cord has been disconnected. 17. Lightning---Unplug this apparatus during thunder storm or when unused for long periods of time.
- Page 6 CTOUCH interactive display ’s performance . Environment condition: Operating temperature: 5°C – 35°C Operating humidity: 20 –...
-
Page 7: Standard Accessories
POWE R HDMI SLEEP ZOOM INFO INPUT MENU EXIT HOME MUTE RC-J55-0C CTOUCH interactive display Remote Control Touch Pen HDMI Cable AC Power Cord UK AC Power Cord VGA Cable USB Cable Quick Start Guide User’s Manual Welcome letter Note: The illustrations may differ slightly from the items shipped with your product. -
Page 8: Identification Of Controls
Red: In standby mode. Power LED Blue: In power on mode. Aim the remote control towards this spot on the CTOUCH Remote control sensor interactive display. Push to ( ) to connect the power, push to (O) to cut off. -
Page 9: Viewing The Connection Panel
To connect with those equipments with HDMI or DVI interface. (A HDMI1/2/3 Input HDMI-to-DVI adapter cable is required when you are connecting a DVI-equipped device to the CTOUCH interactive display VGA OUT Output the currently selected PC IN 1/2/3 signal. Enable connection to PC or other external devices with PC IN1/2/3 VGA/AUDIO ports. -
Page 10: Remote Control
Remote Control POWER Switch the CTOUCH interactive display power on or Standby Switch to AV mode Switch to VGA mode HDMI Switch to TV mode Switch to HDMI mode Note: If no RF, this button has no function. SLEEP ZO OM... -
Page 11: Installing Remote Control Batteries
In such a case, change the INPUT MENU EXIT angle of the lighting or the CTOUCH interactive display set, or operate the HOME MUTE remote control closer to the remote sensor window. -
Page 12: Connections
Connections Cautions Before Connecting When connecting an external device to the CTOUCH interactive display, make sure that the CTOUCH and the external device are turned off. Check the plugs at the ends of cables to make sure that they are the correct type before you try plugging them into jacks on the CTOUCH interactive display. - Page 13 (Only for PC 1/2/3、HDMI 1/2/3 signal) Please choose the proper method of connection based on your device. Notes: 1.The CTOUCH interactive display is multiple USB port designed(3.0, 2.0), when connect with USB device, please select the appropriate port. 2.The VGA output is signal of what has been currently selected from PC1/2/3.
-
Page 14: Basic Operations
Basic Operations Turning the CTOUCH interactive display on or off Plug the power cord into an AC power outlet. Press Power Switch on the CTOUCH interactive display Now the CTOUCH is in standby mode. Wait a moment until the power indicator lights up, then press POWER... -
Page 15: Menu List
Select [RAW] to output audio signal as its original format. Select [PCM] to output audio signal by PCM format. Audio Only Press OK to turn off the picture on your CTOUCH interactive display and listen to the program audio only. -
Page 16: Time Setup
Date Set current date manually. Current Time Set current time manually. Set Off timer to switch the CTOUCH interactive display to Off Time standby at a specified time. On Time Set On timer to turn on the CTOUCH interactive display automatically to source at a certain time. -
Page 17: Home Page Overview
Home Page Overview Display system program Shortcuts you created on Home page Go to your USB multi-media player. Open the System Setup menu. Go to your web Browser. Switch to the internal PC module interface Note: If no internal PC module , VGA1 mode will be displayed on the screen. -
Page 18: System Settings
System Settings Wallpaper Setting Press OK to access its edit menu. Force this application to stop Uninstall this application Clear data of this application Display information Display current network status. Network Setting Display system information or restore to factory default. Internal routing setting If the internal AP doesn’t work, reset Input the default... -
Page 19: Network Settings
ID and password. Usually this option is applicable to DSL service. Next Next Finished Password Setting Format. Recommended to Wi-Fi Password of Internal select AP Router in the CTOUCH interactive display . (Password should be set at least 8 characters. ) Get IP address, Setting successfully. -
Page 20: Wireless Network Setting
Wi-Fi Password of Internal select AP Router in the CTOUCH i n t e r a c t i v e d i s p l a y (Password should be set at There are five methods to connect with network, choose your least 8 characters. -
Page 21: Using Usb Multi Media Player
Using USB Multi Media Player You can connect a USB storage device to your CTOUCH interactive display to view compatible photo, movie on the large screen of the CTOUCH or play compatible music so that the sound can be output from the... -
Page 22: Playing Music
Using USB Multi Media Player Playing Photo With the photo viewer, you can view compatible photos (in JPG, BMP or PNG format). Also you can zoom, rotate photo, etc. Previous photo Return to previous menu Play/pause Video Player Setting Next photo The current photo is set as Home Wallpaper Rotate anti-clockwise Rotate clockwise... -
Page 23: Playing Movie
Using USB Multi Media Player Playing Movie With the USB movie player, you can play compatible movie (in AVI, MPG, MPEG, DAT, MP4, TS, RM/RMVB, or MKV/MOV format). Previous movie Return to previous menu Now AB repeat starts. To cancel, Fast reverse Adjust the volume highlight Section replay and... -
Page 24: Troubleshooting
Troubleshooting If, after reading these operating instructions, you have additional questions related to the use of your CTOUCH interactive display, please call the services center in your local area, for contact information and full warranty conditions refer to www.ctouch.eu/warranty. Before calling service, please check the symptoms and follow suggested solutions. -
Page 25: Specifications
Specifications Model No. CLA-55FHDA1 CLA-65FHDA1 CLA-70FHDA1 55 inches(diagonal) 65 inches(diagonal) 70 inches(diagonal) Visible screen size AC 100-240V, 50/60Hz AC 100-240V, 50/60Hz AC 100-240V, 50/60Hz Power Source Current Max. 2.2 A 2.6 A 2.9 A Power Consumption 145 W 240 W 265 W Standby condition <...
