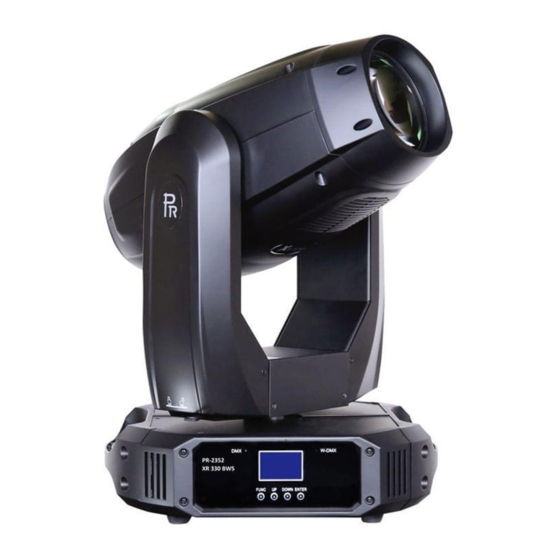

XR330 BWS

PR-2352

This product manual contains important information about the safe installation and use of this projector.

Please read and follow these instructions carefully and keep this manual in a safe place for future reference.

PR LIGHTING LTD.

http://www.pr-lighting.com

1/24

Table of Contents

Need help?

Do you have a question about the XR330 BWS and is the answer not in the manual?

Questions and answers

Summary of Contents for PR XR330 BWS

Page 1 XR330 BWS PR-2352 This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference. PR LIGHTING LTD. http://www.pr-lighting.com...
Page 2: Table Of Contents
INDEX SAFE USAGE OF THE PROJECTOR INSTALLING THE PROJECTOR FITTING THE LAMP POWER SUPPLY – MAINS CONTROL CONNECTIONS DMX TERMINATOR SETUP OPTIONS-PROJECTOR CONFIGURATION TO SET THE DMX START ADDRESS STAND-ALONE MODE MASTER/SLAVE MODE OPERATION MENU ERROR MESSAGES REPLACING GOBOS DMX PROTOCOL LED INDICATION MAINTENANCE LUBRICATION...
Page 3: Safe Usage Of The Projector
SAFE USAGE OF THE PROJECTOR SAFE USAGE OF THE PROJECTOR When unpacking and before disposing of the carton check there is no When unpacking and before disposing of the carton check there is no transportation damage before using the projector. Should there transportation damage before using the projector.
Page 4: Fitting The Lamp
INSTALL THE PROJECTOR Warning please run the safety cord Clamp through the two holes for safety Safety cord Handle Control menu Take 2 clamps and the safety cord out from the package and mount 2 clamps on the underside of fixture with 2 retainers attached to each clamp.
Page 5: Power Supply – Mains
POWER SUPPLY-MAINS Connect the power cord as follows: L (live) =brown E (earth) =yellow/green N (neutral) =blue Before connection with mains power, make sure that the voltage and frequency marked on the rating plate of the projector match what are supplied. It is recommended that each projector be supplied separately so that they may be individually switched on and off. IMPORTANT It is essential that each projector is correctly earthed(yellow/green twin wire) and the electrical installation conforms to all relevant standards.
Page 6: Dmx Terminator
DMX 　 Input Output Input Output Input Terminator Controller DMX512 DMX TERMINATOR In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals. The DMX terminator is simply an XLR connector with a 120Ω...
Page 7: To Set The Dmx Start Address
TO SET THE DMX START ADDRESS Each XR 330 BWS must be given a DMX start address so that the correct projector responds to the correct control signals. This DMX start address is the channel number from which the projector starts to “listen” to the digital control information being sent out from the controller.
Page 8: Operation Menu
OPERATION MENU First Menu Secondary Menu Third Menu Fourth Menu DMX Address=XXX DMX Address Reset Are You Sure Standard DMX Mode Extended Short By Control Channel Lamp Control By Power On Config Settings By DMX Present When DMX is Lost Normal time out Loss of DMX When DMX is Lost...
Page 9 Display Display Mode On Always Display Off After Delay Display Invert Display Invert Display Invert Disp Dim Level Disp Dim Level Disp Dim Level Disp Dim Level Display Options Disp Dim Level Disp Dim Level Display Dimming Disp Dim Level Disp Dim Level Disp Dim Level Disp Dim Level...
Page 10 RDM Device Label RDM Device Label ANSI E1.20 RDM Version X.X Wiring Normal Pan Encoder Pan Err Count 50880 Wiring Normal Tilt Encoder Tilt Err Count 28080 X Over Temp 0 Y Over Temp 0 Driver Faults X Fault Y Fault Factory Setup Factory Setup Factory Setup...
Page 11 R Prism In Out R Prism In Out XXX R Prism Rotate R Prism Rotate XXX R Prism2 In Out R Prism2 In Out XXX R Prism2 Rotate R Prism2 Rotate XXX Frost Frost XXX Focus Focus XXX Zoom Zoom XXX Diffuser Diffuser XXX Pan Coarse...
Page 12 CMY Cyan Cyan XXX CMY Yellow Yellow XXX CMY Magenta Magenta XXX Color Wheel Color Wheel XXX Fixed G-Wheel Fixed Gobo R Gobo Wheel R Gobo Wheel R Gobo Rotate R Gobo Rotate R Gobo Roate L R Gobo Roate L R Prism In Out R Prism In Out Prism...
Page 13: Error Messages
ERROR MESSAGES In the course of launch, Projector examines automatically whether there are errors and if there are, it will display information as follows: Sensor Err S1-M4 CYM-Cyan (1# drive board motor 4) error Sensor Err S1-M5 CYM-Yellow (1# drive board motor 5) error Sensor Err S1-M6 CYM-Magenta(1# drive board motor 6) error Sensor Err S2-M1...
Page 14: Replacing Gobos
REPLACING GOBOS Gobo replacement 1. As shown in figure1, disconnect a projector from power. Unfasten the 4 fastfit screws of the cover to remove the cover, and unfasten the 2 Rotating gobo wheel screws of the fan assembly and remove the assembly. 2.Pull out the rotator from the rotating gobo wheel forcefully by fingers as Rotator shown in figure2 After replacing the gobo or the rotator, put the rotator...
Page 15 Cyan in 16 Bit 000-255 Cyan 16 Bit Yellow Yellow (linear 0~100%) 000-255 Yellow in 16 Bit Yellow in 16 Bit 000-255 Magenta Magenta (linear 0~100%) 000-255 Magenta in 16 Bit Magenta in 16 Bit 000-255 000-010 White 011-019 Color 1 020-028 Color 2 029-037...
Page 16 218-224 Shake effect 8 from slow to fast 225-231 Shake effect 9 from slow to fast 232-237 Shake effect 10 from slow to fast 238-243 Shake effect 11 from slow to fast 244-249 Shake effect 12 from slow to fast 250-255 Shake effect 13 from slow to fast 000-012...
Page 17: Led Indication
193-255 Rotation(Anti- Clockwise from slow to fast) Frost Filter 000-255 Linear Frost 000-255 Focusing Linear Focusing 000-255 Focusing Fine Focusing in 16 bit precision 000-255 Zoom Linear Zooming 000-255 Zooming Fine Linear Zooming in 16 bit precision 000-016 Open Diffuser 017-255 Diffuser 000-255...
Page 18: Keeping The Projector Clean
KEEPING THE PROJECTOR CLEAN To ensure the reliability of the projector it should be kept clean. It is recommended that the fans should be cleaned every 15 days. The lens and dichroic colour filters should also be regularly cleaned to maintain an optimum light output. Do NOT use any type of solvent containing chemical elements on dichroic colour filters.
Page 19: Technical Data
TECHNICAL DATA VOLTAGES: 100V~240V AC，50/60Hz POWER CONSUMPTION: 450W@220V LAMP: SIRIUS HRI 330W OSRAM Colour Temperature 7500K Manufacturers Rated Lamp Life 1500hours Colors: CMY linear mixing system with macros 1 color wheel: 13colors(plus 1CTO)+ Open rainbow effect with bi-directional and variable speeds Stepping/linear color changing Fixed Gobo Wheel 1 fixed gobo wheel: 13 gobos +open...
Page 20 ZOOMING: DMX linear Zooming DIMMER/STROBE: 0-100% linearly adjustable/ Double shutter blades, 0.3~25 F.P.S HEAD MOVEMENT: Pan 540º, Tilt 270º with auto position correction BEAM ANGLE: Beam: 2.3°-- 10°, Linear Adjustment Spot 5°-- 22°Linear Adjustment Wash 5°-- 40°Linear Adjustment CONTROL: DMX512, 3 pin and 5 pin interfaces 21channels in short mode, 26channels in standard mode and 31channels in extended mode Self-test mode OTHER FUNCTIONS:...
Page 21 SIZES: LIGHT OUTPUT: 10100 5700 22800 2550 10° Lux 91500 3600 2.3°Lux 173000 97300 1557000 389000 43200 62300 2.3° 10° Distance (m) 1.24 Min Diameter (m) 0.21 1.03 0.41 0.62 0.83 Max Diameter (m) 5.19 0.86 4.32 1.73 2.59 3.46 21/24...
Page 22 Circuit Diagram 22/24...
Page 23 omponent Order Code NAME PART NO. QUANTITY REMARK PAN MOTOR 030040233 TILT MOTOR 030040233 DIMMER/STROBE MOTORS 030040121 CYM MOTOR 030040114A ROTATING GOBO WHEEL MOTOR 030040213A FIXED GOBO MOTOR 030040224A COLOR WHEEL MOTOR 030040214 DIFFUSER MOTOR 030040214 GOBO ROTATION MOTOR 030040224A FOCUS MOTOR 030040213A FROST MOTOR...
Page 24 PR LIGHTING LTD. 1582 Xingye Avenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 FAX: +86-20-3995 2330 P/N: 320020320 Version: 20150701 24/24...
