This cordless drill has been manufactured in accordance with the applicable standards and equipment safety
legislation. When using electrical appliances, it is important to take some safety precautions in order to avoid
possible injury and damage.
For that reason, you should carefully read and store these instructions such that this information is available
to you at all times.
Do not dispose of Ni-Cd batteries in household waste! The battery must be returned, In accordance with
legislation on batteries, to the dealer or to the service center.
Technical data
Model
60101200
60101201
60101234
Input Voltage & Frequent
120V~60Hz
Voltage(DC)
18
Tool
No load speed Low
0-400 RPM
No load speed High
0-1150 RPM
Continuous noise level
70dB(A)
Hand-Arm-Vibration
<2.5m/s
Drill Bit pick-up
.060 - 3/8"
Weight (with battery)
4 Lbs 1.6 oz
Model
60101011
Battery
Voltage(DC)
18V(DC)
Standard
Battery Type
Battery Amp Hour
Model
60108001
Battery
Voltage(DC)
18V(DC)
Optional
Battery Type
Battery Amp Hour
Charger
60109000
Input Voltage
120V ~ 60Hz
Charger
Charger Current
1200m
Charge Time
1-1.5 hours
Caution: Each cordless drill is supplied with a genuine battery packet and a charger.
Please adhere to the following guidelines:
Electronic control speed
Rotation right/left Regulate
Drill bit
Bit
P
Recycling
V(DC)
2
Ni-Cd
1.7Ah
Ni-Mh
2.0Ah
A
Ambient temperature maximal 40°C (105°F)
Do not dispose of Ni-Cd batteries in household waste
Do not throw Ni-Cd batteries into water!
rotect Ni-Cd batteries against heat and fire risk of explosion
Made In China
Distributed By:
World Factory, Inc.
Southlake, TX.
1-888-422-7800
©2001 World Factory, Inc

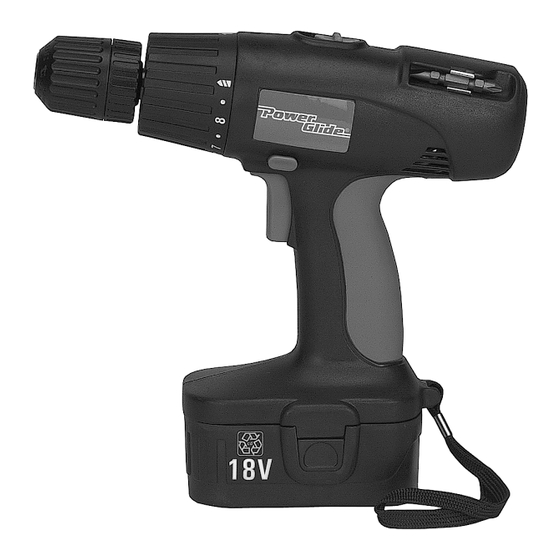

RECHARGEABLE DRILL
Instruction Manual
18V MODEL NO: 60101201
18V KIT MODEL NO: 60101200
18V KIT MODEL NO: 60101234
Please keep this instruction manual for future reference
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Power Glide 60101201
Summary of Contents for Power Glide 60101201
- Page 1 Drill bit Do not throw Ni-Cd batteries into water! Instruction Manual rotect Ni-Cd batteries against heat and fire risk of explosion Recycling 18V MODEL NO: 60101201 Made In China Distributed By: 18V KIT MODEL NO: 60101200 World Factory, Inc. Southlake, TX.
- Page 2 Safety Instructions Do Not Leave any Tool Keys Inserted. Before switching on, check that keys and setting tools Cautions: When using power tools, the following basic safety have been removed from the power tool. measures should be followed to reduce and/or eliminate the risk of injury.
- Page 3 Use only Battery Packets which have been produced by the Avoid the risk of explosion! Do not throw Ni-Cd original manufacturer. batteries into water or fire. Always keep the charger free from dust and dirt. Protect the Battery Packet from impacts. Do not Insert the Battery Packet into the charger.
-
Page 4: Maintenance And Cleaning
Battery Pack Mechanical Speed Regulate Carefully insert the battery packet into the charging base. Pay attention to the correct direction and do not You can increase the rotate speed by pushing the regulate button forward. Position 2: 0-1150 RPM insert the battery packet the wrong way round. You can decrease the rotate speed by pushing the regulate button backwards.
