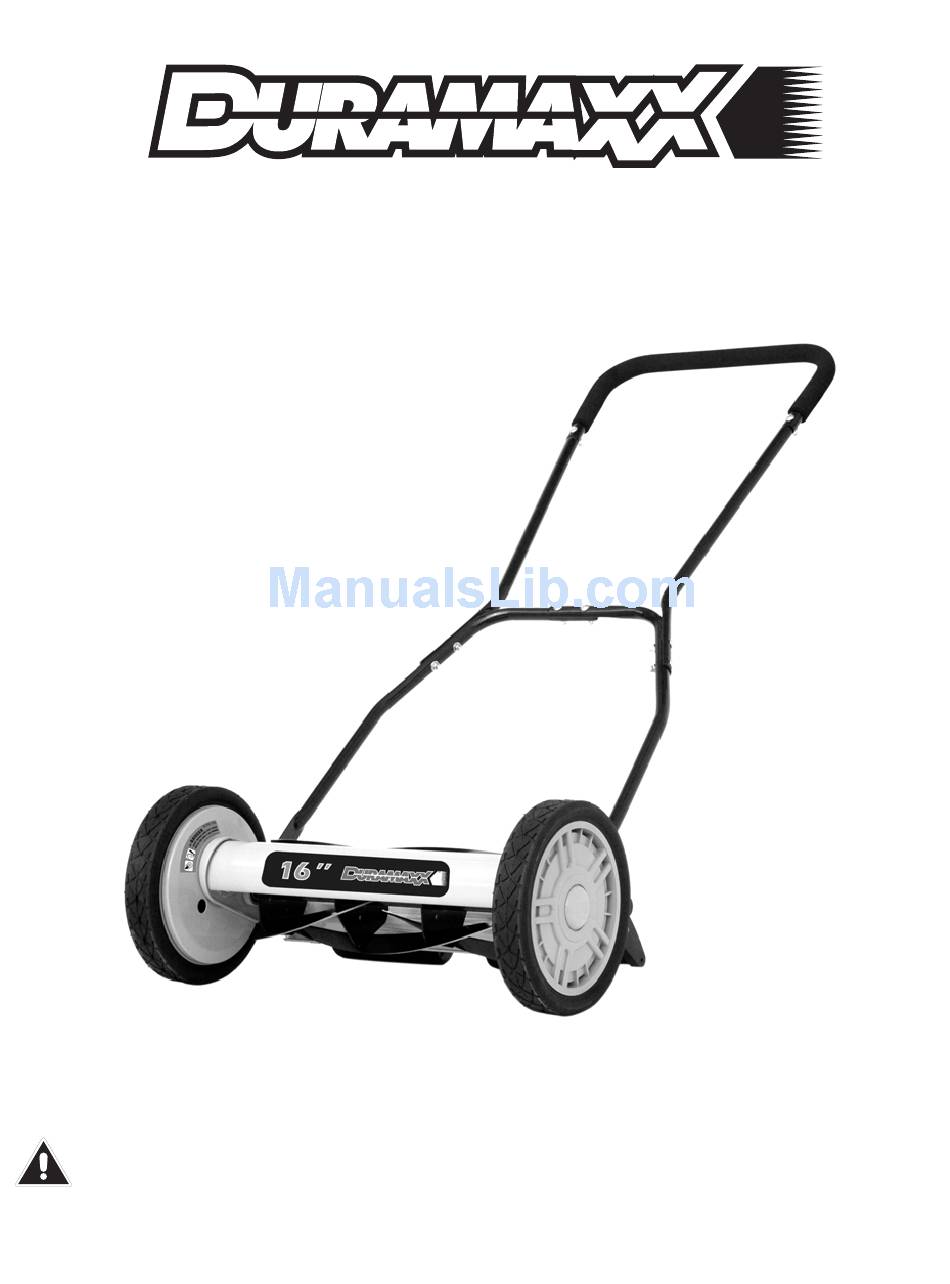

- Page 1 16’’ (40.6cm) REEL MOWER Item: 289516 Model: 26063 Owner's Manual TOLL FREE HELPLINE:1 866 456-8934 IMPORTANT: Read and follow all safety rules and operating instructions before using this product.
-
Page 2: Table Of Contents
TABLE OF CONTENTS PRODUCT SPECIFICATIONS ………………………………………………………………………….…………..…………………2 SAFETY INFORMATION ………………………………………………………………………………….…………..…………………3 CARE AND MAINTENANCE …………………………………………………………………………….…………..………………….3 ASSEMBLY INSTRUCTIONS ………………………………………………………………………….…………..……………….4/6 CUTTING HEIGHT ADJUSTMENT ………………………………………………………………….…………..…………..….. BLADE ADJUSTMENT ………………………………………………………………….…………..…………..…....7 CHECKING THE ADJUSTMENT ……………………………………………………………….…………..……………..……8 TWO-YEAR LIMITED WARRANTY …………………………………………………………………….…………..……………….. 9 PARTS DIAGRAM ……………………………………………………………………………………………….…………..……10/11 PRODUCT SPECIFICATIONS 16’’ (40.6cm) REEL MOWER Item No. -
Page 3: Safety Information
SAFETY INFORMATION Never place hands, fingers or feet inside the reel. Although a motor does not power this mower, when the wheels turn the reel spins and can cut. Never mow when grass is wet as it can be slippery. Do not use the reel mower while barefoot or while wearing sandals. -
Page 4: Assembly Instructions
ASSEMBLY INSTRUCTIONS Before attempting to assemble, empty carton and compare parts with parts list below. Note: • Carefully remove the parts from the box. • Inspect the parts to make sure no breakage or damage occurred during shipping. • Do not discard the packing material until all parts are examined. •... - Page 5 ASSEMBLY INSTRUCTIONS ASSEMBLING THE HANDLE: NOTE: Do not completely tighten bolts until assembly is complete. 1. Insert the two center handle pieces (2) into the left and right side of the top handle (1) and secure with two (6) , flat washer (7) and Locknuts ( 8) provided.
- Page 6 ASSEMBLY INSTRUCTIONS ATTACHING THE HANDLE TO THE MOWER BASE: (Fig: 5) 1. Align holes (1) at the lower end of each handle arm with posts (2) extending from the mower base side plates. Slide lower ends of handle arms onto posts. Fig.5...
-
Page 7: Cutting Height Adjustment
OPERATION CUTTING HEIGHT ADJUSTMENT: (Fig. 6) 1. The cutting height of the 16 in. reel mower can be adjusted from 1 – 2-1/8 in. (2.5-5.3cm) with 4 positions for adjustment height, using the roller assembly. 2. For the highest cutting, position the adjustment knobs through the top hole which is on the side frame. (position A) 3. -
Page 8: Checking The Adjustment
OPERATION MOWER BLADE ADJUSTMENT: (Fig. 7) WARNING: BLADES ARE EXTREMELY SHARP. TO AVOID INJURY, DO NOT TOUCH BLADES WHEN MAKING ADJUSTMENT. Note: Blades are factory adjusted. • Misalignment can occur, often caused by blades being too loose or too tight. This can cause an uneven cut or difficulty pushing the mower. -
Page 9: Two-Year Limited Warranty
TWO-YEAR LIMITED WARRANTY The manufacturer warranties that this product is free from defects in material and workmanship for two (2) years from the date of the original purchase by the original purchaser only. THIS WARRANTY IS NOT TRANSFERABLE AND DOES NOT COVER: Products sold damaged or incomplete, sold “as is”, sold reconditioned or used as rental equipment. -
Page 10: Parts Diagram
PARTS DIAGRAM... - Page 11 PARTS DIAGRAM LIST Item Description Top handle Washer Ø6 Locknuts 1/4 X 20 Carriage Bolts 1/4 X 1-3/8’’ Middle handle(R) Middle handle(L) Bottom handle(L) Bottom handle(R) Roller shaft Roller Roller spacer Height adjustment pin Spring Height adjustment bracket (L) Height adjustment bracket (R) Height adjustment knob C-clip Sleeve...
