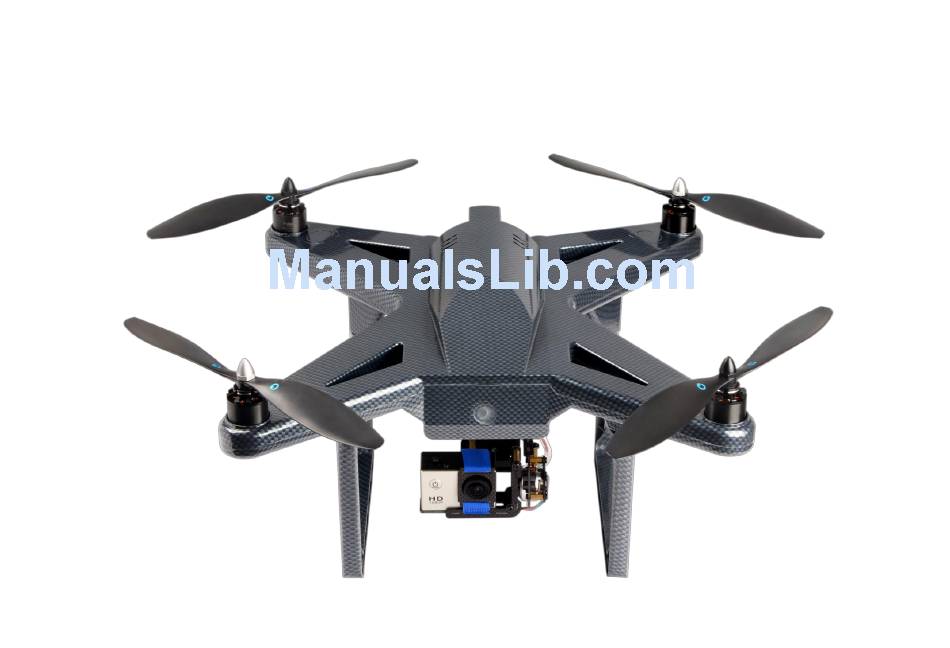

- Page 1 Calibration VAJRA80 ---Calibration Compass,Calibration Accel and Calibration Radio SHENZHEN SPEEDWOLF TECHNOLOGY CO.LTD WWW.SPEEDWOLF.NET...
-
Page 2: Table Of Contents
VAJRA80 Rotorcraft User's manual Contents Disclaimer ............................3 II. Install softwar ..........................4 III. Why do the calibration? ......................6 The Connectivity Software ....................7 V. Calibration Compass ........................12 Calibration Accel........................14 VII. Calibration Controller ......................17 2 / 21... -
Page 3: Disclaimer
10. All the loss resulting from the incorrect use for the battery or the charger is not provided by our company. 11. All the loss resulting from beyond our scope of responsibility. 12. This statement shall be explained by Shenzhen Speedwolf Technology Co.,Ltd. 3 / 21... -
Page 4: Install Softwar
VAJRA80 Rotorcraft User's manual RERURN CONTENTS II. Install software This software does not need to install,directly use it after decompressing files,please follow the steps below to operate. (1)Install the driver that is included in "Drivers". (PS:checking the operating system is 32-bit or 64-bit,if it is,please install DPInstx86.exe;if it is 64-bit,please install DPInstx64.exe.) (2)Install "NET framework","dotnetfx45_full_x86_x64"... - Page 5 RERURN CONTENTS VAJRA80 Rotorcraft User's manual (3)Decompress the files "speedwolf.rar" , then find "speedwolf.exe" in the folder "speedwolf".,and direcly double-click to open ‘speedwolf.exe’ 5 / 21...
-
Page 6: Why Do The Calibration
RERURN CONTENTS VAJRA80 Rotorcraft User's manual III. Why do the calibration? 1. All VAJRA 80 have already been conducted a comprehensive accurate calibration, the aircraft can adapt all regions; if there is no the following conditions, please do not calibrate. Meanwhile, under the guidance of calibration from our technicians, please have a comprehensive test in an unmanned, open, safe zone after calibration. -
Page 7: The Connectivity Software
VAJRA80 Rotorcraft User's manual RERURN CONTENTS The Connectivity Software 1. Please find USB interface in plane's tail. 7 / 21... - Page 8 VAJRA80 Rotorcraft User's manual 2.Connect computer use USB Extension cord. 3.Follow steps 1 to find the "speedwolf.exe" in speedwolf folder, double-click to open the software as follows: 8 / 21...
- Page 9 RERURN CONTENTS VAJRA80 Rotorcraft User's manual 4.Select the port 9 / 21...
- Page 10 RERURN CONTENTS VAJRA80 Rotorcraft User's manual 5.Click "Connect" pop-up connection status dialog box that displays "Done" If successful in loading external data, otherwise check the line if there are problems. 10 / 21...
- Page 11 RERURN CONTENTS VAJRA80 Rotorcraft User's manual 6. Select "Calibration" option 11 / 21...
-
Page 12: Calibration Compass
RERURN CONTENTS VAJRA80 Rotorcraft User's manual V. Calibration Compass 12 / 21... - Page 13 RERURN CONTENTS VAJRA80 Rotorcraft User's manual 1.Select Calibration compass, then in the right click "Start Calibration" to start the calibration. 2.According to the figure, each direction needs to be rotated 360 ° ; if the figure white dots disappear that means success. 13 / 21...
-
Page 14: Calibration Accel
VAJRA80 Rotorcraft User's manual RERURN CONTENTS Calibration Accel 14 / 21... - Page 15 RERURN CONTENTS VAJRA80 Rotorcraft User's manual 1.Select “Calibration Accel”, according to the order of the drawing to make the calibration. ① ② Press any key ③ ④ Press any key 15 / 21...
- Page 16 RERURN CONTENTS VAJRA80 Rotorcraft User's manual ⑤ ⑥ Press any key 16 / 21...
-
Page 17: Calibration Controller
RERURN CONTENTS VAJRA80 Rotorcraft User's manual VII. Calibration Controller 17 / 21... - Page 18 RERURN CONTENTS VAJRA80 Rotorcraft User's manual The two rockers shown and two DIP switch is in the end according to the direction of the arrow. 18 / 21...
- Page 19 RERURN CONTENTS VAJRA80 Rotorcraft User's manual 19 / 21...
- Page 20 RERURN CONTENTS VAJRA80 Rotorcraft User's manual Click "OK" to finish calibrate. 20 / 21...
- Page 21 VAJRA80 Rotorcraft User's manual WWW.SPEEDWOLF.NET 21 / 21...
