fireworx FX-PD Installation Sheet

FX-PD Photoelectric Smoke Detector
Installation Sheet
EN FR
EN: Installation Sheet

Operation

The FX-PD Photoelectric Smoke Detector uses an optical
sensing chamber to detect smoke. The detector analyzes the
sensor data to determine whether to initiate an alarm. The
detector is capable of performing comprehensive self-
diagnostics and storing the results. The detector continuously
monitors changes in sensitivity due to the environment (e.g.,
dirt, smoke, temperature, humidity) and notifies the loop
controller of its condition. The detector issues a dirty-sensor
warning when it reaches its preset limit. This notifies the
operator of the need for service while the detector is still
operating.

LED operation

The detector provides a bicolor LED that shows its status.
• Normal: Green LED flashes
• Alarm/active: Red LED flashes

Installation

Refer to FireworX Smoke and Heat Detector Application
Bulletin (P/N 3101107) for additional information on detector
placement and spacing.

WARNINGS

• This detector does not operate without electrical power. As
fires frequently cause power interruption, discuss further
safeguards with the local fire protection specialist.
• This detector does not sense fires in areas where smoke
cannot reach the detector. Smoke from fires in walls,
roofs, or on the opposite side of closed doors may not
reach the detector.
• Photoelectric detectors have a wide range of sensing
capabilities but are best suited for detecting slow,
smoldering fires.
• To ensure proper operation, schedule maintenance
(regular or selected) in accordance with the requirements
of the authority having jurisdiction. Refer to NFPA 72 and
CAN/ULC-S536.
© 2013 UTC Fire & Security. All rights reserved.
• To ensure proper operation, store the detector within the
recommended ranges. Allow the detector to stabilize to
room temperature before applying power.
• Keep the dust cover (supplied) on the detector during
installation and remove it prior to commissioning and
service. The dust cover is not a substitute for removing the
detector during new construction or heavy remodeling.
To install the detector:
1. Install and wire the detector base using the installation
sheet supplied with the detector base.
2. Set the detector address. Refer to the panel technical
reference manual for a list of valid addresses. Use a
screwdriver to adjust the two rotary switches on the back
of the detector. (See Figure 1 below.) Set the left rotary
switch (0 through 12) for the 10s and 100s digit and the
right rotary switch for the 0 through 9 digit.
3. Connect the detector to the base by rotating the detector
clockwise until it snaps into the locked position. To remove
the head turn it counterclockwise.
4. If the head must lock to the base, break away the locking
tab using a pair of pliers. See Figure 2.
To remove the detector head after breaking away the
locking tab, insert a small screwdriver into the slot on the
side of the base and press in while simultaneously turning
the detector head counterclockwise.

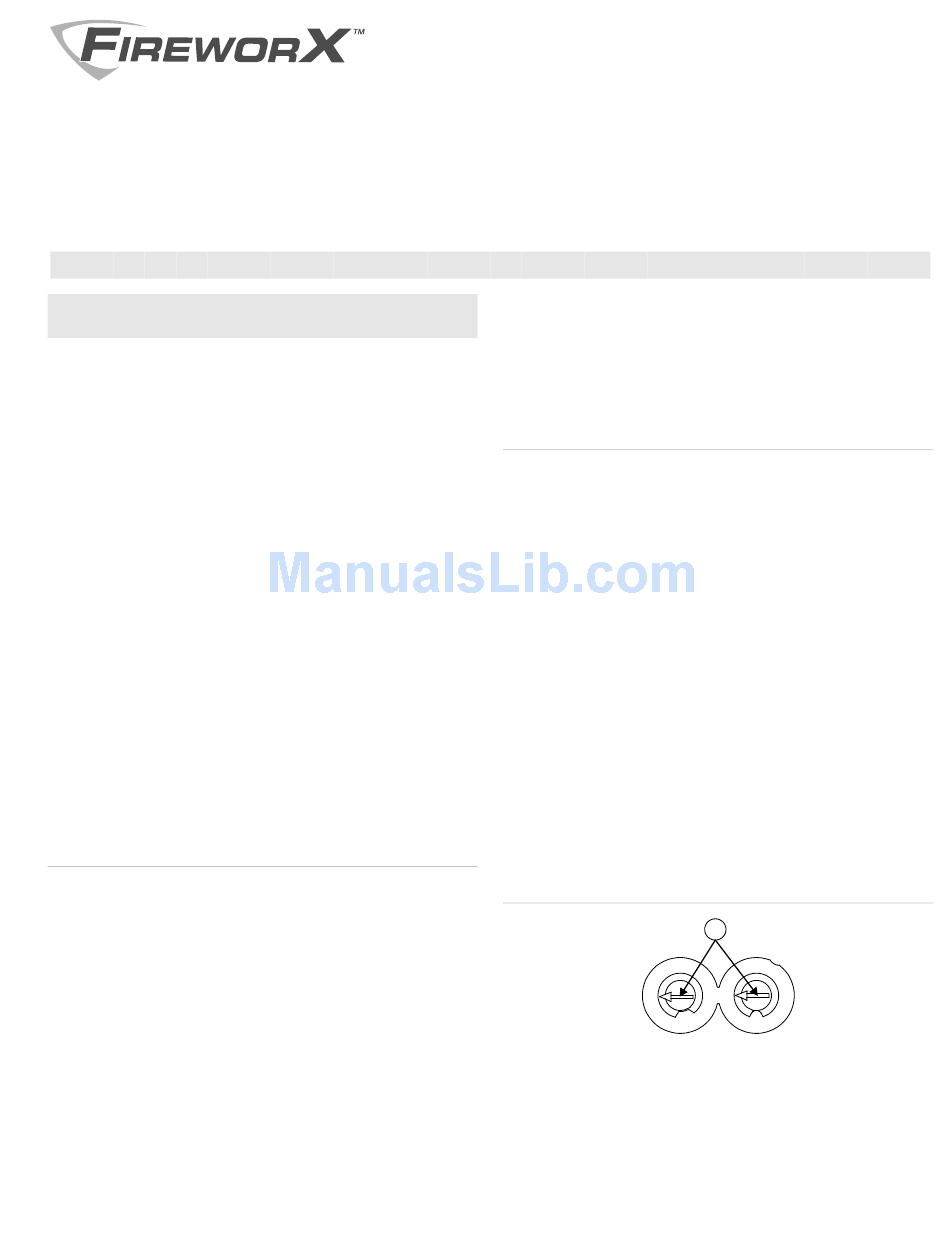

Figure 1: Setting detector address (address 32 shown)
5 6
4
3
2
1. Insert screwdriver here
1 / 4
1
7 4 5
8
3
6
9
7
2
10
11
8
1
12
1
0 9
0
P/N 3101066 • REV 04 • REB 23JAN13
