Summary of Contents for Home Protector 61859
-
Page 2: Table Of Contents
Contents Introduction ............. 4 Welcome ............4 General Information and Safety Instructions ............5 Assembly and Parts List ......7 Outdoor unit ..........8 Indoor unit ............ 9 Accessories ..........10 Getting Started ..........12 Features ............24 Instructions ............ 25 Replacing the batteries ...... - Page 3 Change the Date/Time ......28 Screen shots ..........29 Device timing operation ....... 29 FAQ ..............30 Other Useful Information ......31 Disposal ............31 Specifications ..........32 Warranty Conditions ......33 Warranty card ..........37...
-
Page 4: Introduction

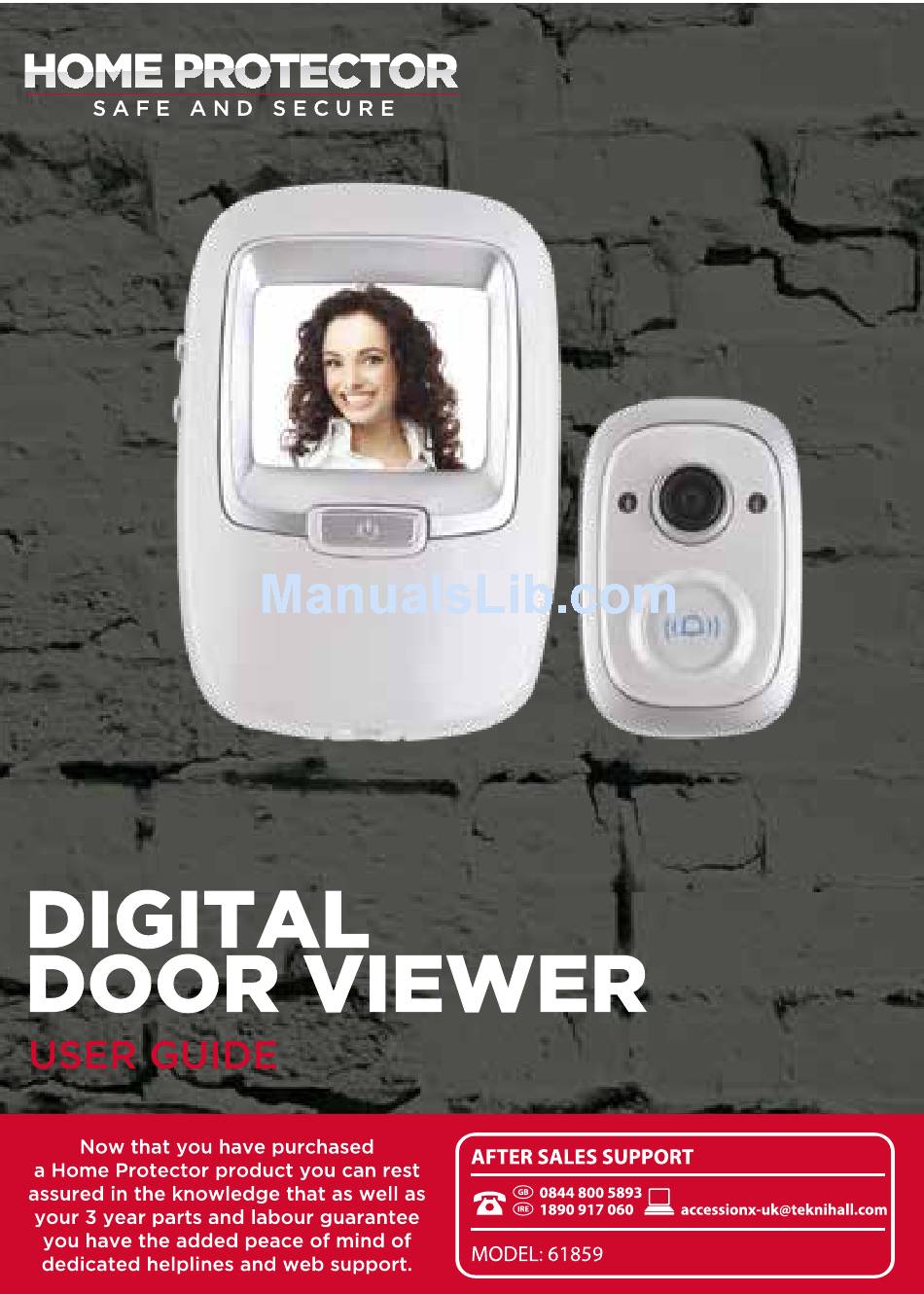

Introduction This Digital Door Viewer helps you to protect yourself and your valuables. The screen allows you to see & communicate with whoever is at the door before having to open it. Welcome You have made an excellent choice with the purchase of this quality Home Protector product. -
Page 5: General Information And Safety Instructions
We hope you will enjoy using your purchase for many years to come. If you require technical support or in the unlikely event that your purchase is faulty please telephone our Helpline for immediate assistance. Faulty product claims made within the 3 year warranty period will be repaired or replaced free of charge provided that you have satisfactory proof of purchase (keep... - Page 6 1. Do not drop, disassemble, open, crush, bend, deform, puncture, shred, microwave, incinerate, paint, or insert foreign objects into this device. 2. Do not expose the Digital Door Viewer / Camera (indoor unit) to moisture or submerge it in liquid. Keep it dry at all times.
-
Page 7: Assembly And Parts List
Assembly and Parts List Digital Door Viewer with pre- installed 128 MB Micro SD card (indoor/main unit/screen) Doorbell (outdoor unit) Metal tube Back plate Adhesive tape Screws (1 short, 2 long) Flat tool ... -
Page 8: Outdoor Unit
Outdoor unit... -
Page 9: Indoor Unit
Indoor unit ... -
Page 10: Accessories
Accessories... -
Page 12: Getting Started
Getting Started Remove protection foam as shown below. Remove any existing Door Viewer from the door. - Page 13 If there is no Door Viewer you will need to drill a suitable hole, using a 5/8" (7mm) drill bit. Peel off the adhesive cover on one side of the adhesive tape and attach it to the back of the doorbell unit. Then peel off the adhesive cover.
- Page 14 4. Place the doorbell unit on the outside of the door and secure it by using the adhesive tape. Ensure that the metal threading is exactly in the middle of the peephole. Make sure that the connection ribbon goes through the hole.
- Page 15 6. Peel off the tape on the back of the mounting plate. This will help prevent scratches on your door when attaching the main unit. Place the backing unit against the door and pull the connection ribbon through the center hole.
- Page 16 Pull the connection ribbon through the center hole. 8. Use the included flat tool to twist the metal tube clockwise until it is firmly in place.
- Page 17 9. Press the ribbon head against the PCB (printed circuit board) for correct position. Please note that the PCB is very fragile so make sure not to press the ribbon head too hard against the PCB. Snap the PCB to the connection point.
- Page 18 10. Use a screwdriver to remove the faceplate from the main unit.
- Page 19 11. Insert two AA batteries into the unit, ensuring that you have the correct polarity. Attention For the following steps, please note that the main connection points are vital for the operation of the Door Viewer. If they are note properly connected the device will not work.
- Page 20 (Back of main unit) 12. Place the unit on the door so that the two parts connect securely. Ensure the units are securely connected...
- Page 21 13. Ensure that the unit is properly connected. 14. Using the 2 long screws provided, secure the Door Viewer using a Philips head screwdriver.
- Page 22 15. Place the cover on the front of the device. Use the short screw to secure the faceplate to the device.
- Page 23 16. The Door Viewer is now fully installed. Please note that the outdoor lens has a clear plastic cover to prevent scatches. Please remove the plastic after installation.
-
Page 24: Features
Features This door viewer camera allows you to see who is at the door and will provide you with a more secure feeling. It has a built-in 128 MB micro SD card that can store up to 1000 pictures of people who pressed the doorbell. -
Page 25: Instructions
Instructions Replacing the batteries To replace the batteries simply remove the faceplate of the main unit by unscrewing the bottom screw of the device. Remove the old batteries and replace them with two new AA batteries. Refer to steps 10 & 11 for more details. Removing the micro SD card Remove the faceplate of the main unit by unscrewing the bottom screw on the... -
Page 26: Buttons
Use the below diagram to assist you in the following instructions Buttons The Door Viewer comes with 4 buttons; A, B, C & D. Take a picture from the inside To monitor who is outside your door, you can press “A”, and the screen will turn on after 3 seconds. -
Page 27: Take A Picture Using The Doorbell
Take a picture using the doorbell When a visitor presses the “B”, the main device screen will turn on after 6 seconds, and automatically the unit will take one picture. The screen will stay on for an additional 30 seconds. The included 128MB micro SD card stores up to 1000 images. -
Page 28: Change The Date/Time
Change the Date/Time Once the screen is on, press “D” to adjust the date and time. Press “C” or “D” to change the date and time. Press “A” to go to the next menu. Once you have entered all the information Correctly, press and hold “A”... -
Page 29: Screen Shots
Screen shots Device timing operation... -
Page 30: Faq
Q: No picture / No video A: Make sure that the metal threading is correctly connected with the PCB board. Q: No power A: Check the batteries in the main unit. Q: Cannot save pictures/videos. A: Make sure that the micro SD card is not full. -
Page 31: Other Useful Information
Other Useful Information Disposal The device and the batteries must not be disposed of together with domestic waste. If you want to dispose of the device, do it the environmentally friendly way by bringing it to a public waste centre. The packaging material is partly recyclable. -
Page 32: Specifications
Specifications • 2.4 inch colour LCD display • Suitable for door thickness 40 - 70mm • Outdoor unit is with 0.3M pixel camera, wide 120 degree view angle. • Includes 128MB Micro SD card to store up to 1000 pictures •... -
Page 33: Warranty Conditions
Warranty Conditions Dear Customer, The Aldi warranty offers you extensive benefits compared to the statutory obligation arising from a warranty: Warranty period: 3 years from the date of purchase 6 months for wear parts and consumables under normal and proper conditions of use (e.g. - Page 34 In order to make a claim under the warranty, please send us: • together with the faulty item the original receipt and the warranty card properly completed. • the faulty product with all components included in the packaging. The warranty does not cover damage caused by: •...
- Page 35 After the expiry of the warranty period, you still have the possibility to have your product repaired at your own expense. If the repair or the estimate of costs is not free of charge you will be informed accordingly in advance. In the event that a product is received for repair, neither the service company not the seller will assume any liability for...
- Page 36 services, details of which are to be found both in this manual and on the product itself. If you are not entirely satisfied with this product please return it to the store where it was purchased and we will be pleased to replace or refund it.
