7120350001

QP350 USER MANUAL

Quantun Electronics, LLC

Table of Contents

Need help?

Do you have a question about the QP350 and is the answer not in the manual?

Questions and answers

Summary of Contents for QUANTUN QP350

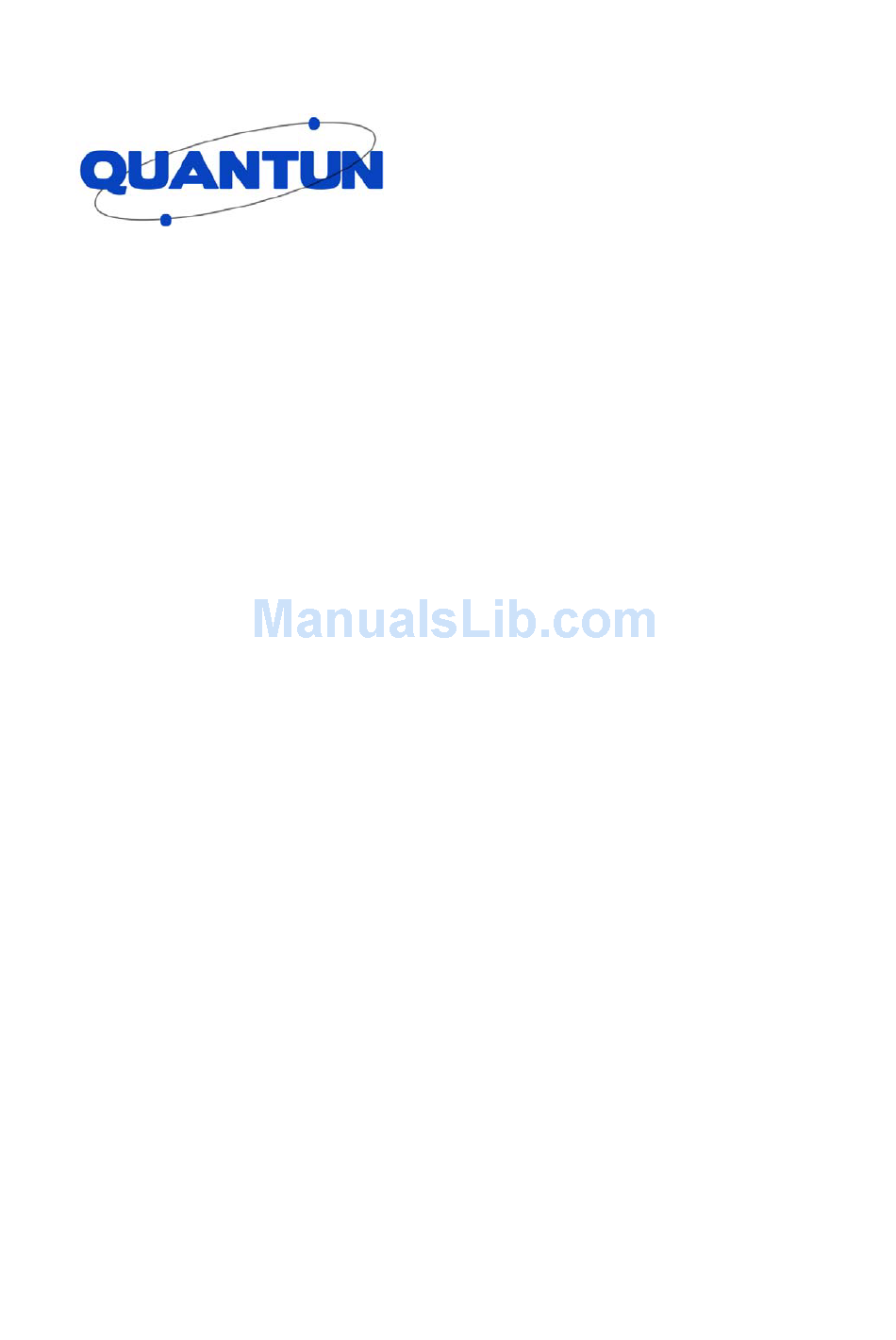

Page 1 7120350001 QP350 USER MANUAL Quantun Electronics, LLC...
Page 2 THANK YOU We are grateful for you choice of Quantun transceiver. This Professional two-way radio incorporates the advanced technology and craft. You will be pleased with the quality and features of our product. Please read this manual carefully to ensure you know how...
Page 3: Table Of Contents
CONTENTS User Safety Information Compliance with RF Energy Exposure Standards Precautions and notices Product Inspection Radio Overview Parts of the Radio The functions of the LEDs and Beeps Table Programmable Auxiliary Functions Getting Started Battery Antenna Accessory Installation Basic Operations VOX Operation Advanced Operations and Features Troubleshooting...
Page 4: User Safety Information
QUANTUN PORTABLE TWO-WAY RADIO. Compliance with RF Energy Exposure Standards Your Quantun two-way radio is designed and tested to comply with a number of national and international standards and guidelines (listed below) regarding human exposure to radio frequency electromagnetic energy. This radio complies with the IEEE (FCC) and ICNIRP exposure limits for occupational/controlled RF exposure environment at duty cycles of up to 50% talk-50% listen and should be used for occupational use only.
Page 5: Precautions And Notices
Precation and Notices Government law prohibits the operation of unlicensed radio transmitters. Illegal operation is punishable by fine or imprisonment Of both. To avoid problem caused by electromagnetic interference and electromagnetic compatibility, please turn off the transceiver at the sites where you are required, such as hospital, airplane etc.
Page 6: Product Inspection
Product Inspection Please carefully take the transceiver out of the box. We recommend that you confirm the items listed in the following table are enclosed before discarding the box. If any items are missing or have been damaged during shipment, file a claim with the carrier immediately. Available Accessories Item Qty.
Page 7: Radio Overview
Radio Overview Parts of the Radio (1) Power Switch (2) Antenna (4) PTT Key (3) Volume Adjust Keys[+] (6) Volume Adjust (7) Microphone (8) Charging (5) SK(Programmable Keys[-] Terminal Side Key) (9) Channel Selector (10) Status (11) Charge (12) Charge DC Knob Indicator Indicator...
Page 8: The Functions Of The Leds And Beeps Table
The functions of the LEDs and beeps Table When the radio is turned on, the power on alert tone Power on sounds and status Indicator flashes green once. When the current channel is a blank channel, the radio sounds beep tone continuously.
Page 9: Programmable Auxiliary Functions
Programmable Auxiliary Functions The SK key is a programmable function button. Your dealer may assign any of the following auxiliary functions to a short or long programmable key-press. None Squelch Off Squelch Off Momentary Monitor Monitor Momentary Scan Power Adjust Battery Strength Indicator Compandor Scrambler...
Page 10: Getting Started
Getting Started Battery Safety Precautions The battery is not fully charged at the factory. It is recommended to charge the new battery for 5 hours before using it. Also, batteries that may have set longer than 2 months since the last charge should be charged before using it. The battery capacity will be optimum after being charged/discharged two or three times.
Page 11 When the radio top LED flashes red and three beeps sound every 10 seconds indicating the battery power runs low, please recharge the battery. You are recommended to use Quantun authorized charger. Charger LED will indicate the charging status. Please follow these steps to charge your radio using the switching power adapter or desktop charger: 1.
Page 12 use a charger) 4. Make sure the radio is connected to the switching power adapter or the charger. The charging process initiates when the Charge Indicator of the radio glows orange. 5. The Charge Indicator glows green when the battery is fully charged. Please remove the radio then.
Page 13: Antenna
5. The charger indicator glows green when the battery is fully charged. Please remove the battery then. Charger LED Status Steady Orange Battery is charging Steady Green Battery is fully charged Antenna Stubby antennas are ideal for communication within limited range. Fine and long antennas optimizes communication coverage, ideal when the radio is worn on the belt because they are flexible and soft.
Page 14 Figure 2 4. Fit the two extensions at the top of the rear cover into the slots at the top of the radio’s body, slightly press the bottom of the rear cover towards the radio until a click is heard, and then the rear cover is securely attached to the radio, as shown in Figure 3.
Page 15: Belt Clip
Antenna Attaching the Antenna 1. Align the threaded end of the antenna with the radio’s antenna connector. 2. Turn the antenna clockwise to fasten it, as shown in Figure 5. Figure 5 Removing the Antenna Rotate the antenna counterclockwise to remove it. Belt Clip Attaching the Belt Clip Align the two screw holes on the metal bracket of the belt clip with holes on the elliptical...
Page 16 Removing the Belt Clip Loosen the screw to remove the belt clip. Please refer to the operations for attaching the belt clip. Attaching/Removing the Battery When the Belt Clip is Attached When the belt clip is attached to the radio, please first press the belt clip to make its bottom up, and then attach/remove the rear cover and battery by the steps mentioned above, as shown in Figure 7.
Page 17: Basic Operations
Basic Operations Turn On/Off the Radio Long press the Power Switch until an alert tone is heard to turn the radio on. The LED glows green during power-up. If the current channel is not set, the radio sounds beep tone continuously To turn the radio off, do the same as you turn it on.
Page 18: Advanced Operations And Features
Advanced Operations and Features Features Key function programmable Your dealer may program the Function Key(long or short press) with one of the auxiliary functions respectively described in the Radio View section. Programmable 12.5kHz/25kHz Channel Spacing The feature enables flexibility an easy migration of channel spacing requirements when the need arises, with no need to buy new radios.
Page 19 Low battery Alert When the battery voltage goes below a preset value, the LED indicator Will flash red and the alert tone sound and then the radio stops transmitting. This feature is designed to automatically reminds you of recharging or replace the battery. Scrambler his feature means that your conversation is secrecy.
Page 20 will pause on the active channel for you to receive activity. The channels available for scanning are programmed by your dealer. No Priority Channel Providing that there is a scan list with 6 channels and all channels are non-prioritized, the normal scan operation would proceed in the following sequence, as shown in Figure 1.
Page 21 PTT key, Volume Adjust keys [+] / [-], and 4 programmable keys of Squelch Off, Squelch Off Momentary, Monitor and Monitor Momentary. TX Power Adjust Users can switch the Tx power level between high and low power by pressing the programmed Power Adjust key.
Page 22: Troubleshooting
Troubleshooting Trouble Solution Cannot power on the radio. The battery has run out. Please recharge the battery or replace it with a new one. The battery may not be properly installed. Remove the battery and attach it again. The operating time is noticeably shorter The battery has worn out, and it is time to than normal performance, even though buy a new battery.
Page 23: Care And Cleaning
Care and Cleaning Do not place the radio in a dusty or dirty environment. Clean the radio with a lint-free cloth to remove dirt or grease, to avoid poor contact due to excessive dust. Clean the radio using a lint-free cloth moistened with clean water and a mild dishwashing liquid.
Page 24: Service
Service If you need service, contact your Quantun dealer. If you find it inconvenient to have service performed by your local dealer, you may contact Quantun below: Quantun Electronics,LLC 1379 Shotgun Road Sunrise, Florida 33326 USA Main line: 954-598-3500 Toll Free USA: 888-361-0521...
